INTRODUCTION

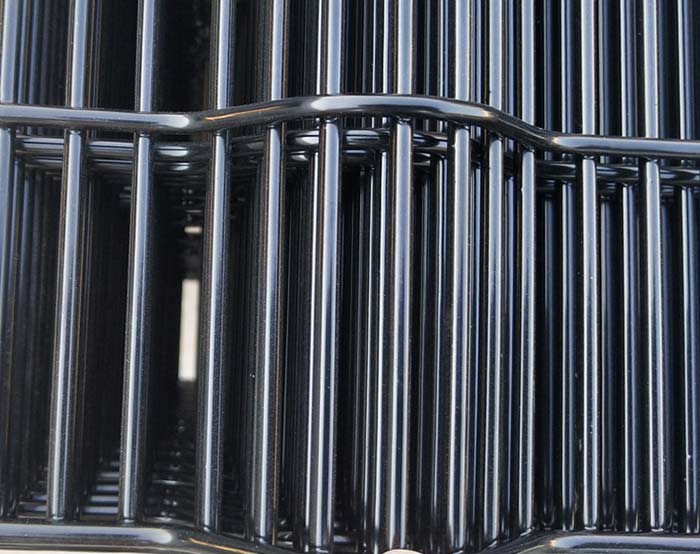

High security fence also called '358 FENCE' '3510 fence' 'antifinger fence' 'clearvu fence'. It is a high cost version of steel fence. The panel is welded with low carbon steel wire,Material Grade: Q195, Surface treatment by Electrostatic polyester powder stray coating(Powder-coated) over galvanized materials. And then connect the fence panels with post by suitable clamps(Clips).Due to the 12.7*76.2mm small mesh size, it is anti cut & anti finger climb.

FEATURES

Anti climb

See-through panel

Anti-rust,Long Service Life

Fast Installation

Customer specs available

Rigidity

COLORS AVAILABLE

High-security fence papular colors

HIGH SECURITY FENCE POPULAR COLORS

High-security fence available colors

High-security fence available colors

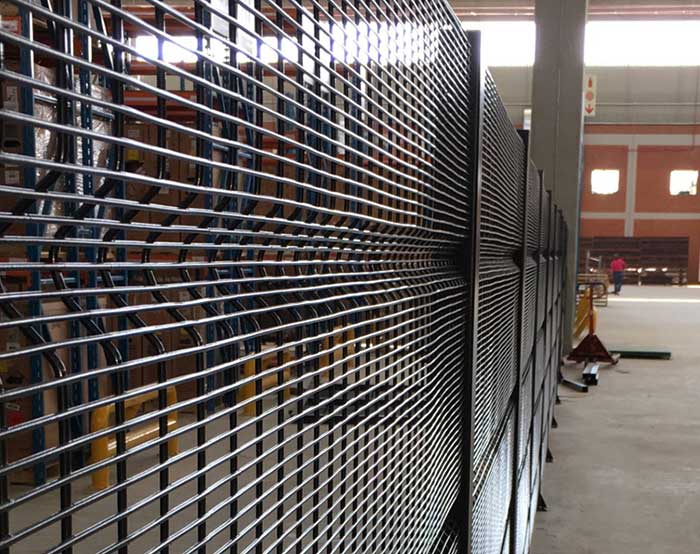

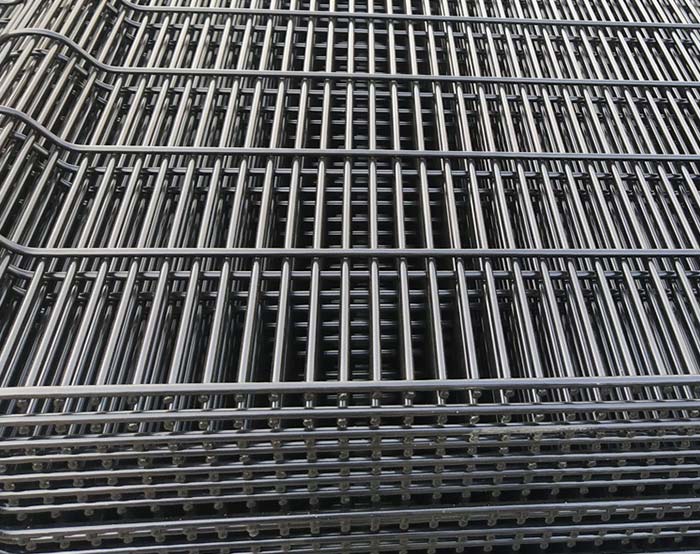

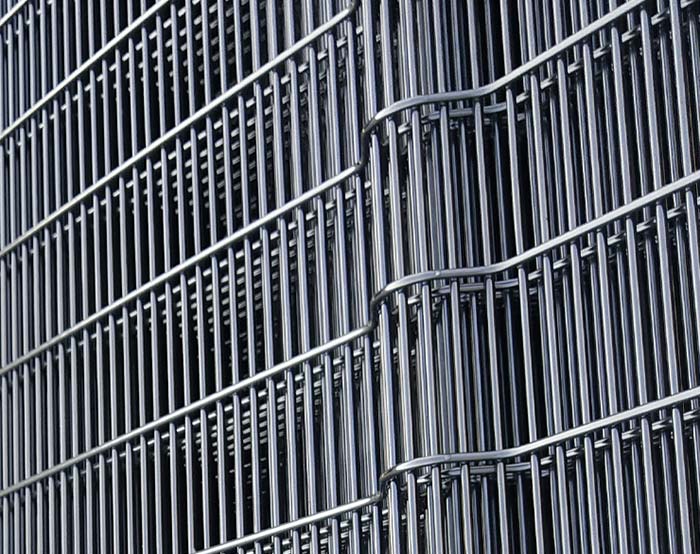

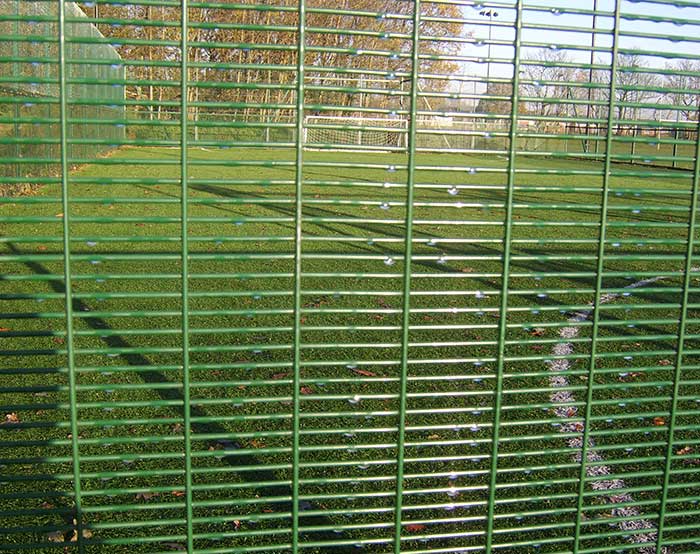

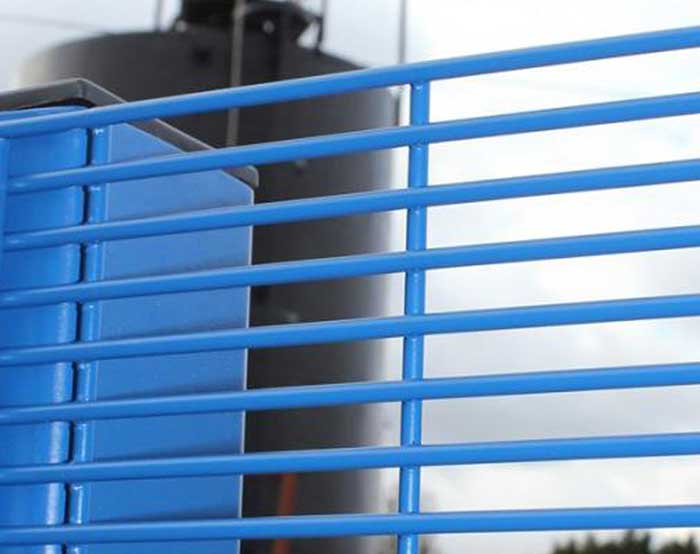

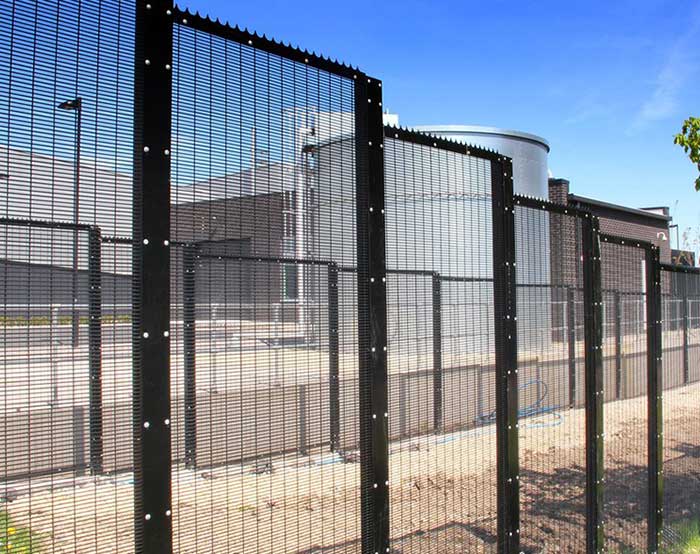

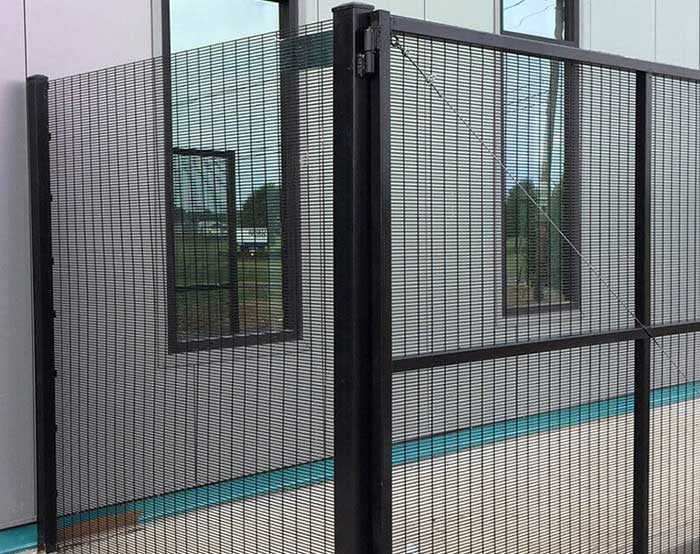

GALLERY

CONTACT US NOW

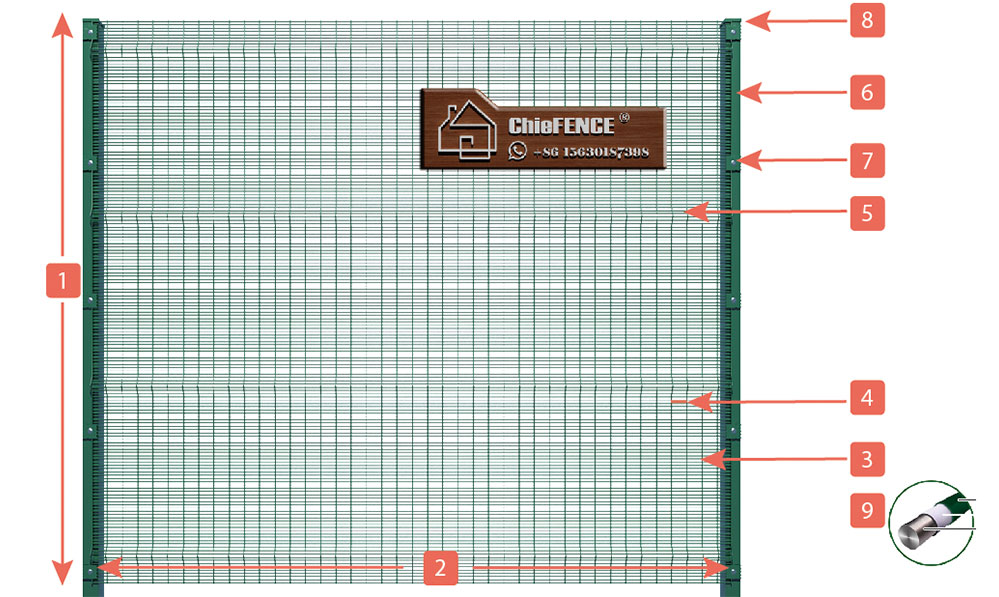

1
HEIGHT:1700mm / 1800mm / 2000mm / 2200mm/2400mm

The heavy wires guarantee strength and rigidity.

2
WIDTH: 2300mm/2400mm / 2500mm / 2900mm

2900mm option can reduce installation & post cost by approx 20%,when compared with a 2.5m wide panel.

If the panel is higher than 2300mm,we will suggest 2300mm wide panel to suit for container size.

3
WIRE THICKNESS: 3.0mm/4.0mm / 4.5mm / 5.0mm

358 fence=3" × 0.5" ×8 gauge wire(4.0mm)

3510 fence=3" × 0.5" ×10 gauge wire(3.1mm)

Thicker wire can offer stronger rigid

4

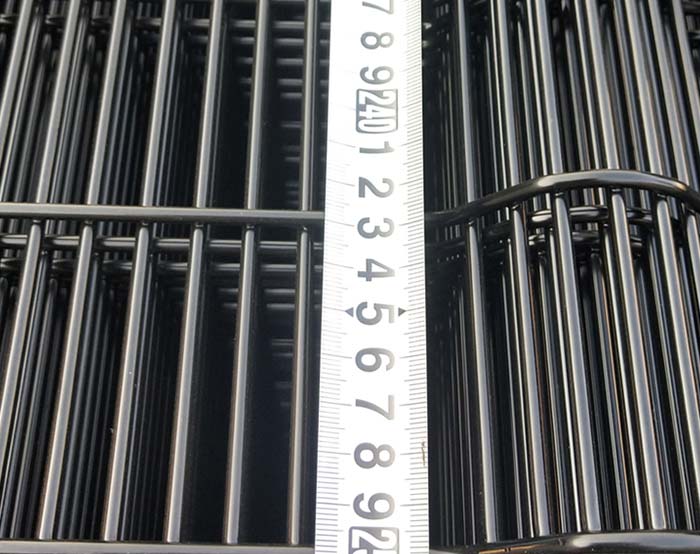

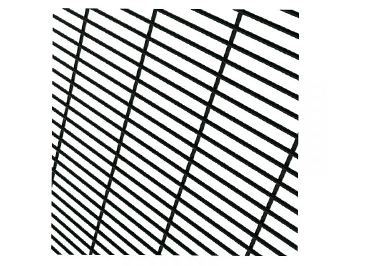

MESH SIZE (Aperture)

A: 50*76.2mm(Basic Option)

B: 25*76.2mm(Standard Option)

C: 12.7*76.2mm(Premium Option)

  • B Standard Option

    B Standard Option

  • A Basic Option

    A Basic Option

  • C Premium Option

    C Premium Option

5
3 opions for regid.

A: 3D OPTION

B: 2D OPTION

C: 2D with additional wire

A: 3D OPTION

A: 3D OPTION

B: 2D OPTION

B: 2D OPTION

C: 2D with additional wire

C: 2D with additional wire

6
POST:

A: Square post: 60*60mm

B: Round post: φ60mm

C: "I " post: 70*44mm

D: IPE POST:100*55MM

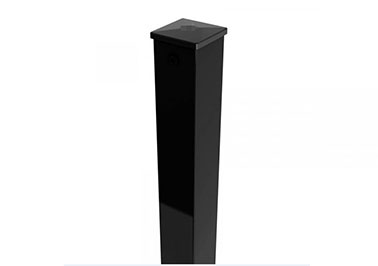

A Suare post

A Suare post

B Round post

B Round post

C

C  "I " post

D IPE POST

D IPE POST

7
CONNECTION

A: Spider Clamp with square post

B: Spider Clamp with IPE post (Double quantity clamps)

C: FLAT BAR with Square post


A

A

B

B

C

C

Spider Clamp-A

Spider Clamp-A

Spider Clamp-B

Spider Clamp-B

Spider Clamp-C

Spider Clamp-C

8
POST CAP:

A: anti-UV plastic cap

B: metal cap

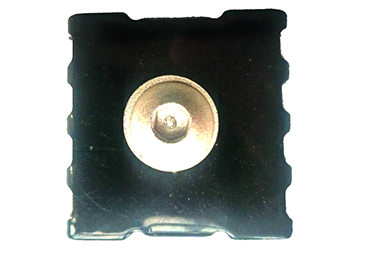

Anti-UV plastic cap

Anti-UV plastic cap

Metal cap

Metal cap

9
Surface Treatment(Anti-Rust Treatment):

Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)

Electric Galvanized(8-12g/m²) + PVC Coated

Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

Hot Dipped galvanized(40-60g/m²) + PVC Coated

Hot Dipped Galvanized after welding (505g/m²)

Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)

Galfan(200g/m²) + PVC Coated


NOTE:

Be manufactured using galvanized steel wire.
Be coated with exclusive Architectural Grade Powder Coat.
This coating is super-durable and environmentally sound. Our powder coating provides the industry's Highest Weather ability and Gloss Retention in U.V. Exposure.
Up to 3 times longer than competitor's powder coatings


Hot Dipped Galvanized

Hot Dipped Galvanized

Powder Coating

Powder Coating

PVC Coating

PVC Coating

10
Additional Option
Barbed Wire

Barbed Wire

Bolts with Sheer-nut

Bolts with Sheer-nut

Bolt with Rivet Nut

Bolt with Rivet Nut

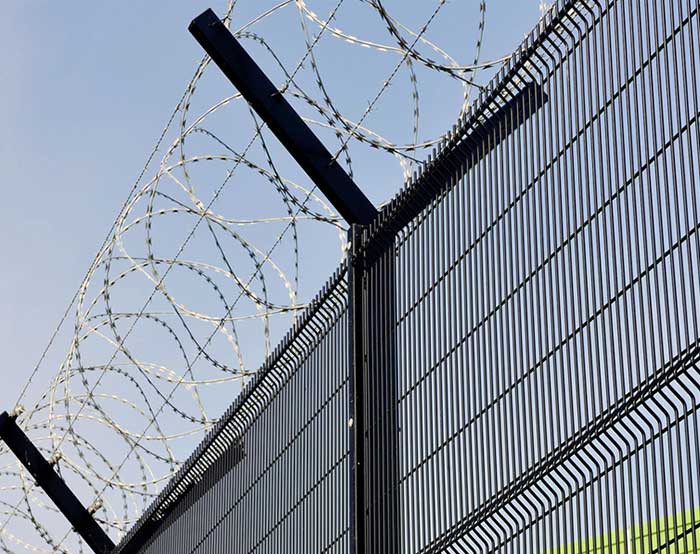

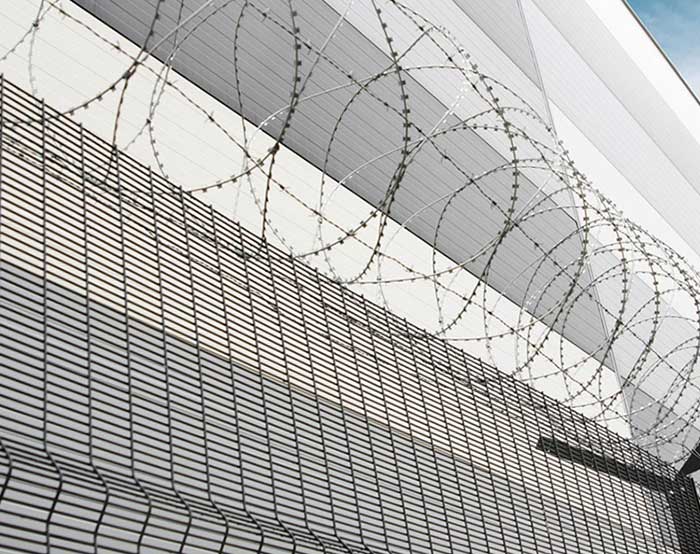

Concertina Razor Wire

Concertina Razor Wire

Flat Wrap Razor Wire

Flat Wrap Razor Wire

Spike A

Spike A

Spike B

Spike B

V Arm A for Square Post

V Arm A for Square Post

V Arm B for IPE Post

V Arm B for IPE Post

What we need to prepare

GOODS:
1 panel.
1 post with a rain hat.
Clips(4-7 clips for 2m high fence).

Installation Method

Measure and mark the post location as per the panel width
Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 01

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Install the post with concrete.
Each post must be set perfectly plum in the concrete

Step 02:

Install the post with concrete. Each post must be set perfectly plum in the concrete

Install 1 panel to post with clips.

Step 03:

Install 1 panel to post with clips.

Install the second post with concrete.
Each post must be set perfectly plum in the concrete

Step 04:

Install the second post with concrete. Each post must be set perfectly plum in the concrete

Fix the fence, The cement will set in a few hours

Step 05:

Fix the fence, The cement will set in a few hours

Production Flow Chart

Steel Wire STEP 01

Steel Wire

Cutting STEP 02

Cutting

Welding STEP 03

Welding

Bending STEP 04

Bending

Powder Coating STEP 05

Powder Coating

Panel STEP 06

Panel

PACKAGE

Accessories Package

Accessories Package

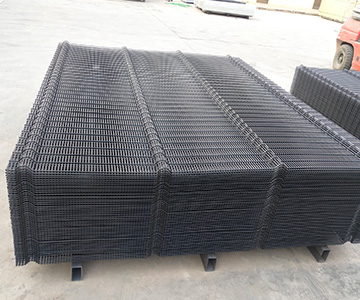

Panel Package

Panel Package

Panel Package

Panel Package

REFORENCE

As the hot sales fence, we sold 6000m high security fence to our distributor every month.

2011,5000m high security fence project for Bahrain.

2012,2500m high security fence project for Indonesia

2013,4000m high security fence project for Nigeria

2014,6000m high security fence project for Nigeria

2015,7000m high security fence Rumaila Field of Iraq.

2017,4980m high security fence for South Africa

2018,7400m high security fence for Malaysia

2019,3000m high security fence for Jordan

2020,4530m high security fence for Zimbabwe
