INTRODUCTION

PICKET WELD is a beautiful fence,welded with pointed picket. There are 2 beams, 3 beams and 4 beams for option. The welded picket is medium safe, and is mainly sold to the United States, Mexico, Russia, etc. Widely used in parks, villas, schools, kindergartens, and governments. Picket weld has two options: welding type and assembly type. Welding type load ability is small. Assembly type  loading ability is big.

FEATURES

Lower budget

See-through panel

Anti-rust,Long Service Life

Fast Installation

Customer specs available

Rigidity

COLORS AVAILABLE

Picket weld popular colors

Picket weld popular colors

Picket weld available colors

Picket weld available colors

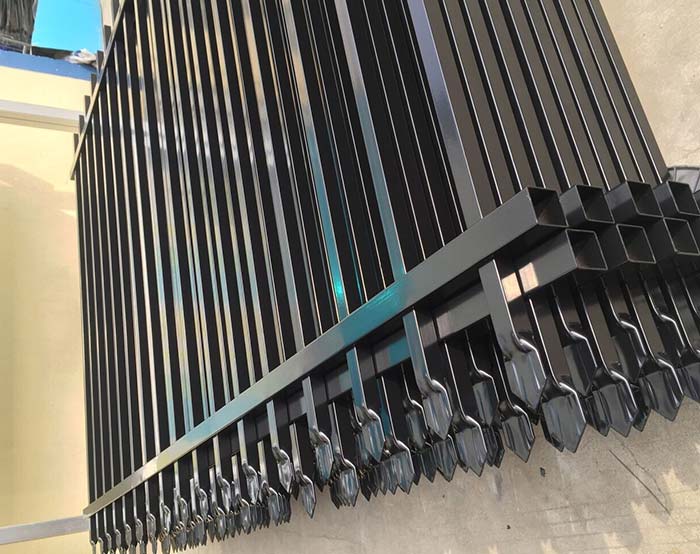

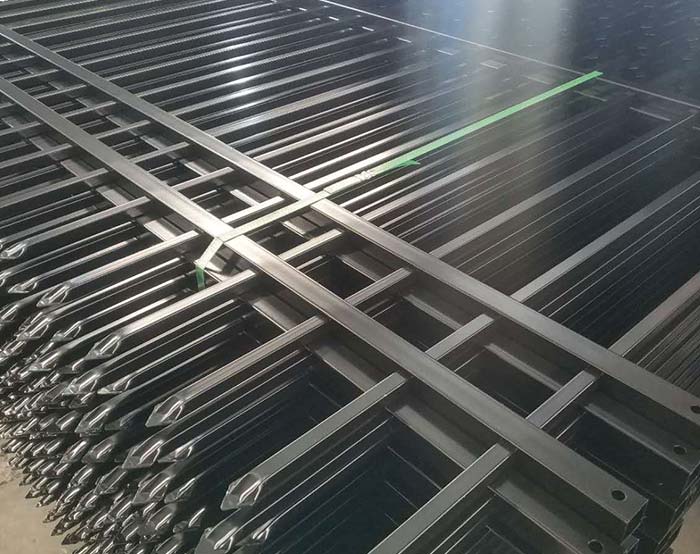

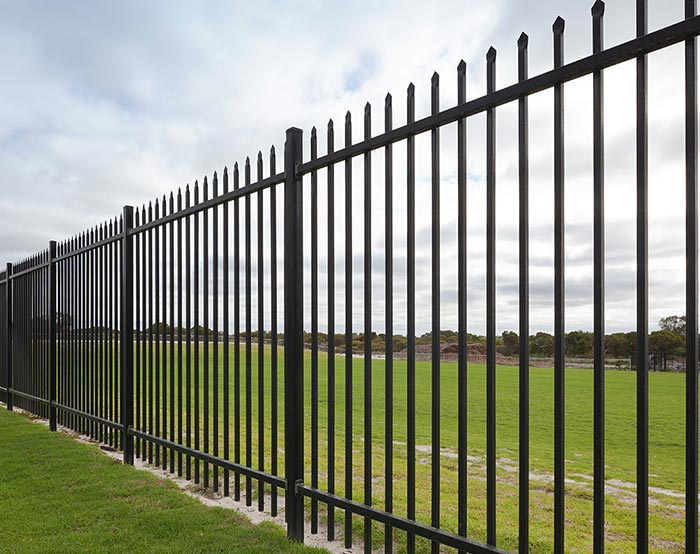

GALLERY

CONTACT US NOW

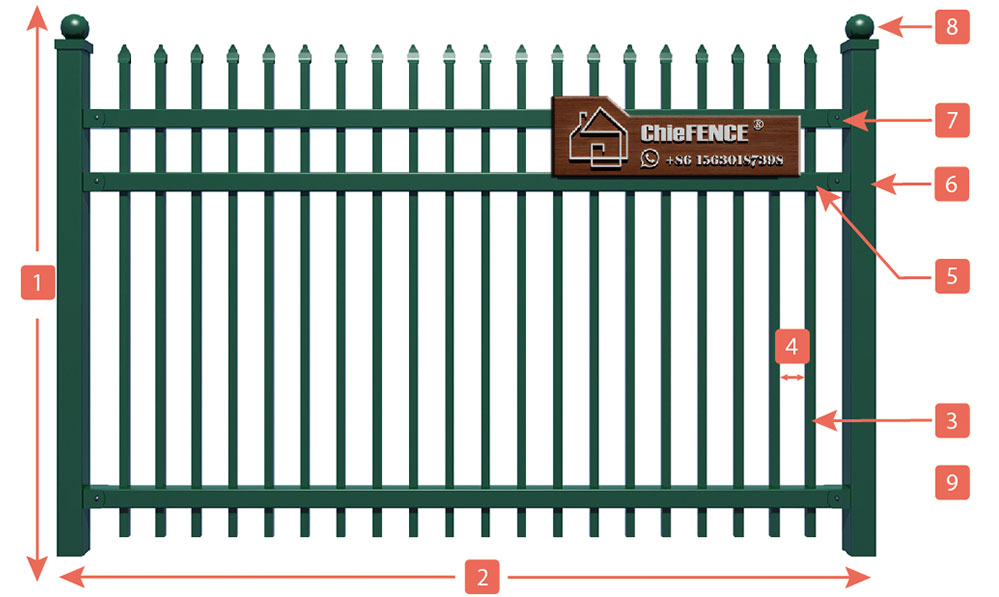

1
HEIGHT:

HEIGHT:1000mm / 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm

2
WIDTH: 2300mm / 2500mm / 2900mm

2900mm option can reduce installation & post cost by approx 20%,when compared with a 2.5m wide panel.

If the panel is higher than 2300mm,we will suggest 2300mm wide panel to suit for container size.

3

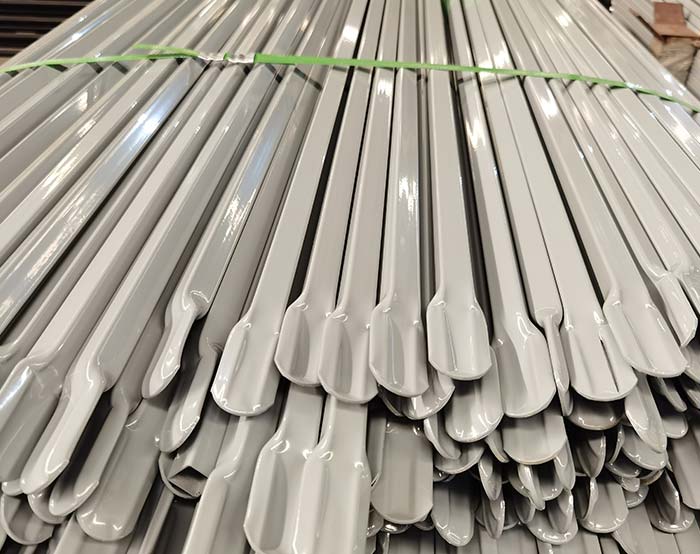

Vertical picket: 15*15MM/19*19mm/25*25mm

Vertical picket: 15*15MM/19*19mm/25*25mm

thickness:0.8mm/1.0mm/1.2mm/1.5mm


Vertical picket can make flat top and spear top

4
Vertical picket space:80mm/ 110mm/120mm

Special distance is available

5
PIcket types:

A: flat top option (Welded solution only)

B: rod top option (Welded solution or  insllation solution )

C: spear top option (Welded solution or  insllation solution )

D: curved top option (Welded solution or  insllation solution )

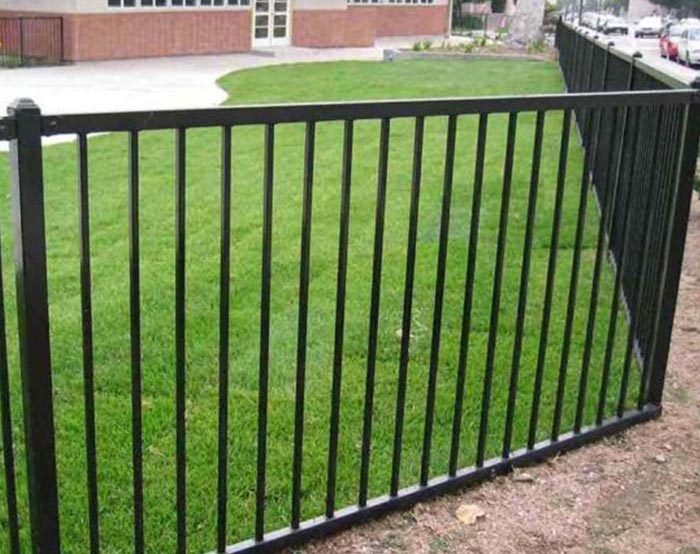

A: flat top steel fence

A: flat top steel fence

B: rod top steel fence

B: rod top steel fence

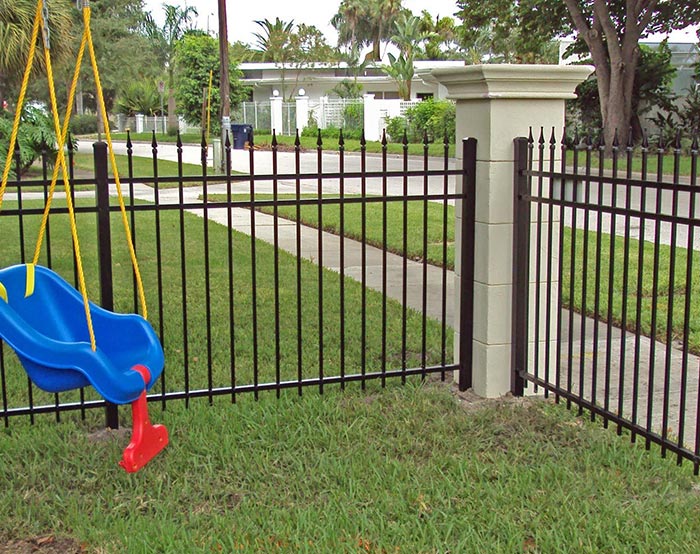

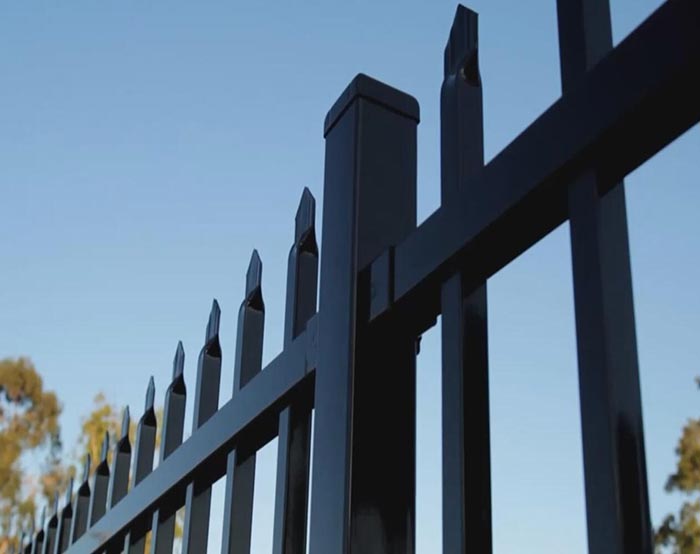

C: spear top steel fence

C: spear top steel fence

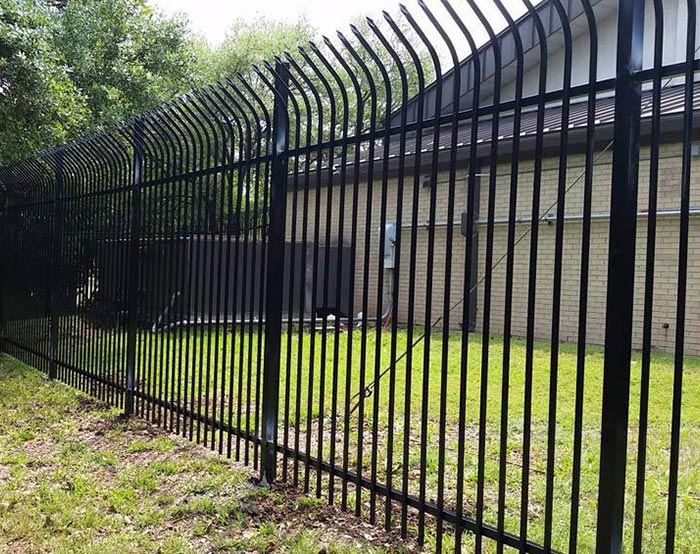

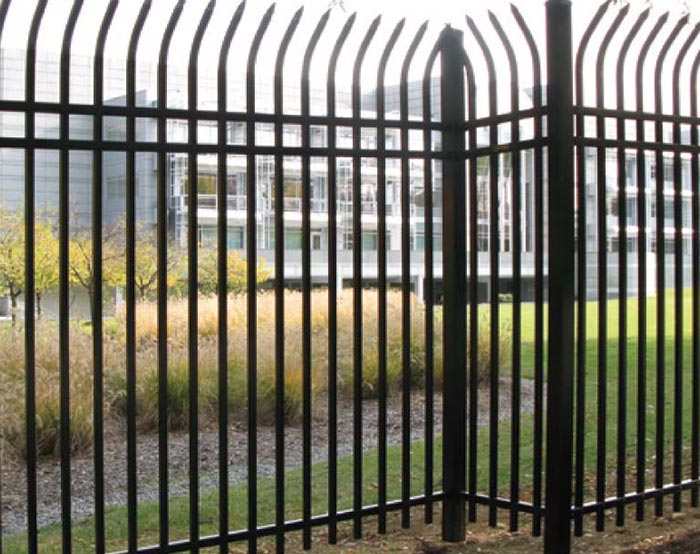

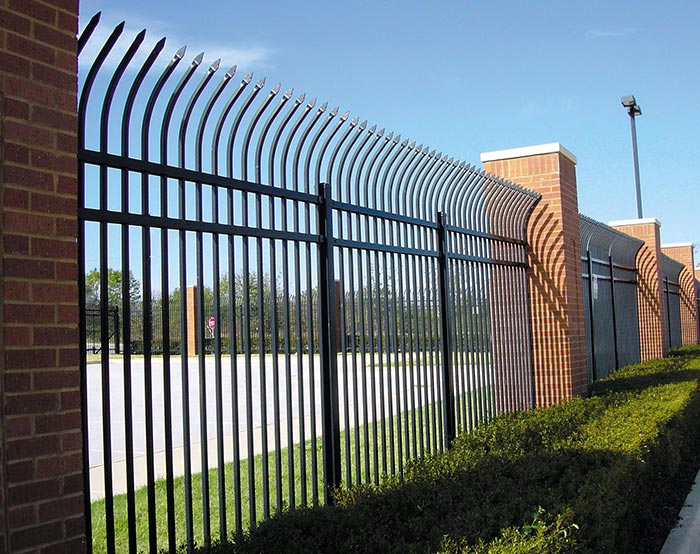

D: curved top steel fence

D: curved top steel fence

6

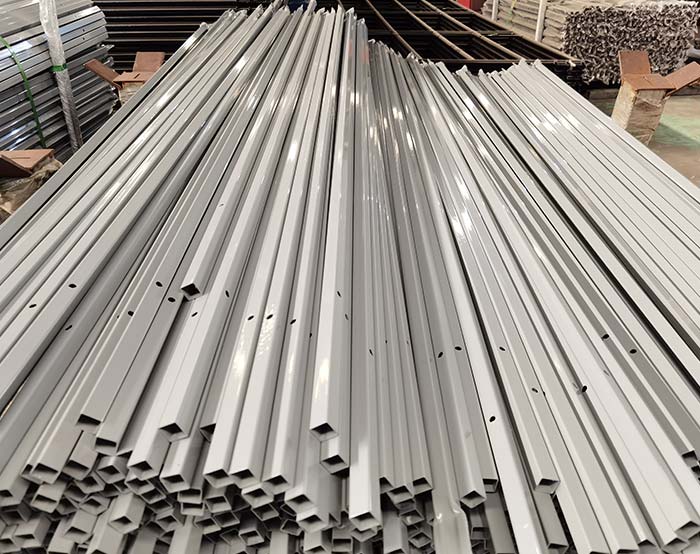

POST:

A: Rectangle post: 40*60mm

B: Suare post: 50*50mm /60*60mm

A: Rectangle post

A: Rectangle post

B: Suare post

B: Suare post

7
Connections

A: STANDARD CLAMP

B: Tube Bracket

C: "U" Bracket

D: Railing Brackets

E: Line Brackets

F: End Brackets

A: Standard Bracket

A: Standard Bracket

B: Tube Braket

B: Tube Braket

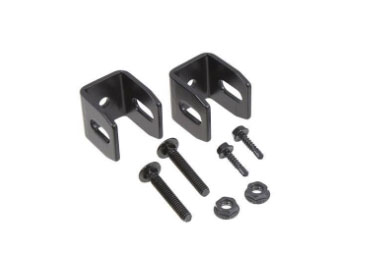

C: U Bracket

C: U Bracket

D: Railing Brackets

D: Railing Brackets

E: Line Brackets

E: Line Brackets

F: End Brackets

F: End Brackets

8
POST CAP:

A: metal cap

B: anti-UV plastic cap

C: Ball cap

A metal cap

A metal cap

Anti-UV plastic cap

Anti-UV plastic cap

Ball cap

Ball cap

9
Surface Treatment(Anti-Rust Treatment):

Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

What we need to prepare

Option 01 (Welded panel Option)
GOODS:
1 panel
1 post with rain hat
Clips

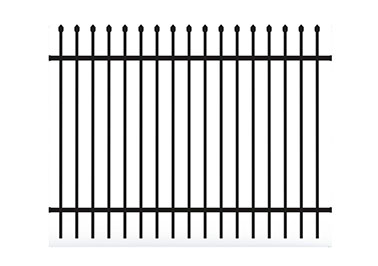

Picket Weld panel

Panel

Picket weld post

Post

Picket Weld clip

Bracket

Option 02 (Installed panel Option)
GOODS:
Pickets
Rails
1 post with rain hat
Clips
Picket Weld picket

Pickets

picket weld post

Post

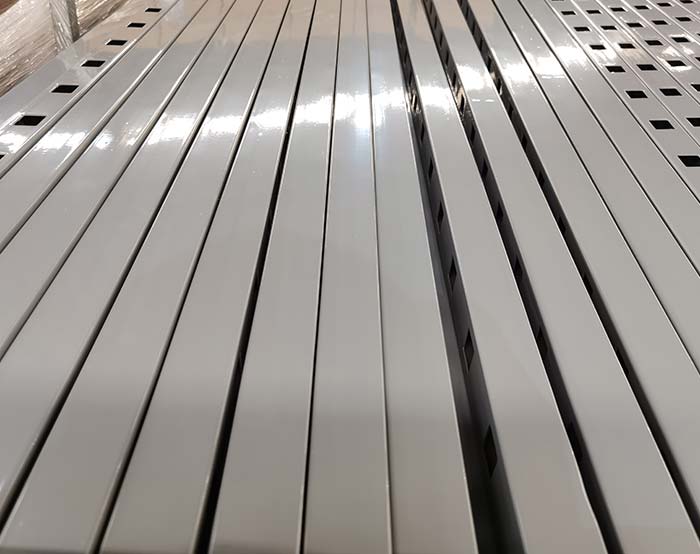

Picket Weld rails

Rails

Picket Weld bracket

Bracket

Installation Method

Weled Panel Type

Measure and mark the post location as per the panel width
Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 01

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Install the post with concrete.
Each post must be set perfectly plum in the concrete

Step 02

Install the post with concrete. Each post must be set perfectly plum in the concrete

Install bracket on post

Step 03:

Install bracket on post

Install the second post with concrete.
Each post must be set perfectly plum in the concrete

Step 04:

Install the second post with concrete. Each post must be set perfectly plum in the concrete

Fix the fence, The cement will set in a few hours

Step 05:

Fix the fence, The cement will set in a few hours

Installed Type

Measure and mark the post location as per the panel width
Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 01

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Install the post with concrete.
Each post must be set perfectly plum in the concrete

Step 02:

Install the post with concrete. Each post must be set perfectly plum in the concrete

Install bracket on post

Step 03:

Install bracket on post

Install the second post and bracket
Each post must be set perfectly plum in the concrete

Step 04:

Install the second post and bracket Each post must be set perfectly plum in the concrete

Install the horizontal rails

Step 05:

Install the horizontal rails

Install the pickets inside.

Step 06:

Install the pickets inside.

Finished

Step 07:

Finished

Production Flow Chart

Steel Fence Steel Pipes STEP 01

Steel Fence Steel Pipes

Steel Fence Pipe Cutting STEP 02

Steel Fence Pipe Cutting

Steel Fence Pipe Punching STEP 03

Steel Fence Pipe Punching

Steel Fence Panel Welding STEP 04

Steel Fence Panel Welding

Steel Fence Panel Powder Coating STEP 05

Steel Fence Panel Powder Coating

Steel Fence Panel Powder Coating STEP 06

Steel Fence Panel Powder Coating

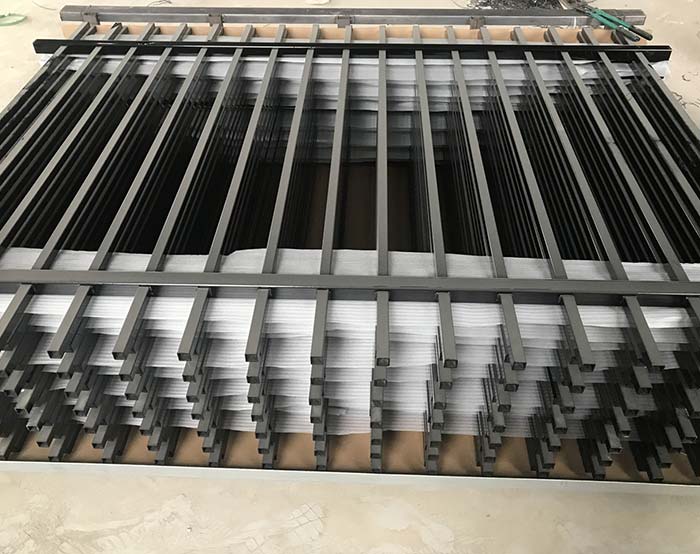

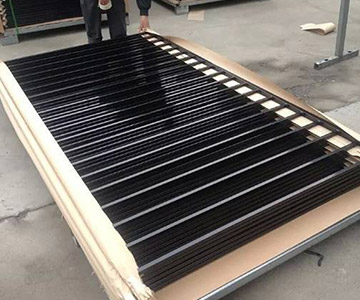

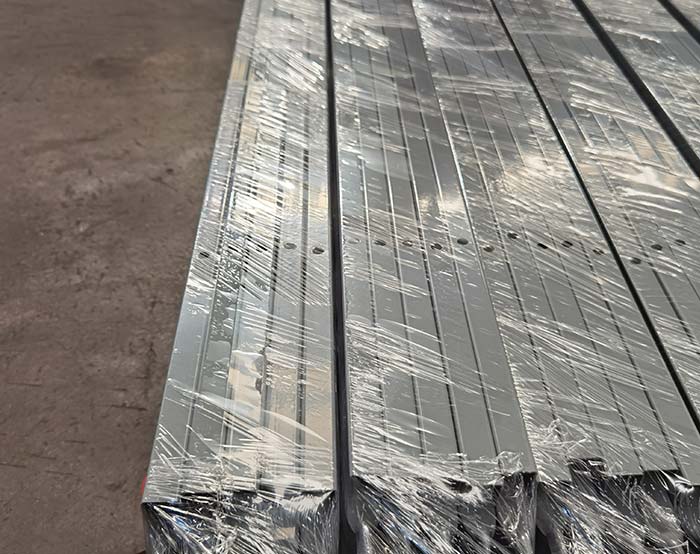

PACKAGE

Steel Fence Panel Package

Steel Fence Panel Package

Steel Fence Delivery

Steel Fence Delivery

REFORENCE

2011,5410m picket weld project for Mexico.

2012,5544m picket weld project for America.

2013,3821m picket weld project for Mexico.

2014,6616m picket weld project for Russia.

2015,7675m picket weld project for Russia.

2017,6058m picket weld for America.

2018,7238m picket weld for Austrilia.

2019,4391m picket weld for America.

CUSTOMER SAY

I ’m Joyce from Mexico and I have been purchasing from ChieFENCE since 2011. Picket weld is very popular among us. I imported it from the US before. But taxes and prices in the United States are high. Since I found ChieFENCE, my problems have been solved. I am very happy.

-Joyce

I am Fred and I work as a fence project and live in New York. I met ChieFENCE at the China Canton Fair in 2012. Their sample quality is excellent. Before this, I did not expect that the quality of Chinese products could be so good. Since I got PICKET WELD, I'm so happy. ChieFENCE really made me a lot of money.

-Fred

In Russia we often need picket weld at school. This kind of fence is very safe and will not hurt children. And the light transmittance is very good, the children can get sunshine. Since 2008, I imported picket weld from China. In 2011, I met ChieFENCE, and their welding quality and spray quality are the best in China. After cooperation, you will fall in love with their products. :)

-Alexander

My name is Rob from the United States and I originally worked for the company "picket weld". Later, he established his own company. ChieFENCE's price is not the lowest in China. But their quality is very good. What I need is the quality of competition with the United States. ChieFENCE did it. And their prices are much lower than the American market. The most important thing is that ChieFENCE's service is very good. In the project, there are many special designs such as corners and slopes. ChieFENCE always provides me with the best solution.

-Rob

Every year, I sell a lot of fences in Australia, including picket weld, temporary fence, 3D fence etc. PICKET FENCE has always been a problem. Because I import from China, the freight is very expensive and the loading ability is very low. Moreover, transportation damage often occurs. ChieFENCE helped me solve these problems. Now I can do business with peace of mind.

-Andy

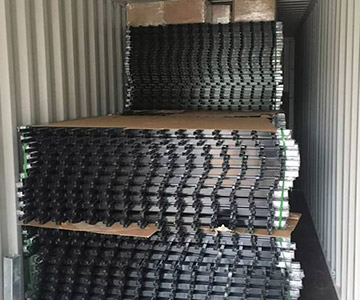

PACKING AND LOADING
