Airport Fence
  • Why Airport Fence
  • How to select Airport Fence
  • How to install Airport Fence
  • Video show
  • Past projects

More information in above 5 labels

INTRODUCTION

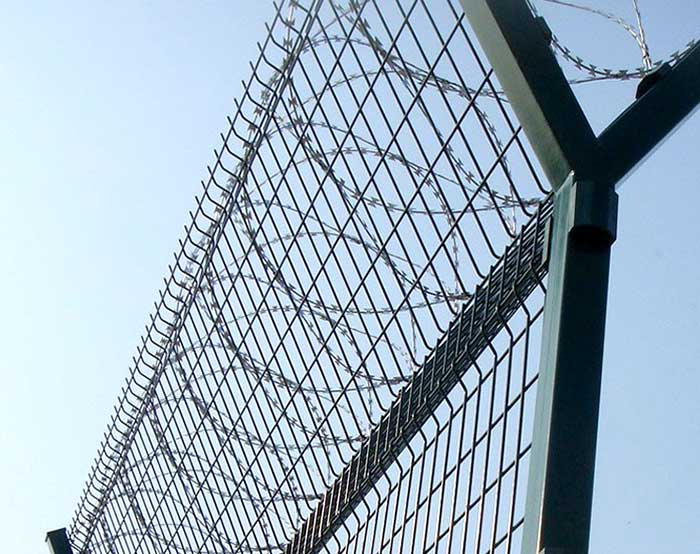

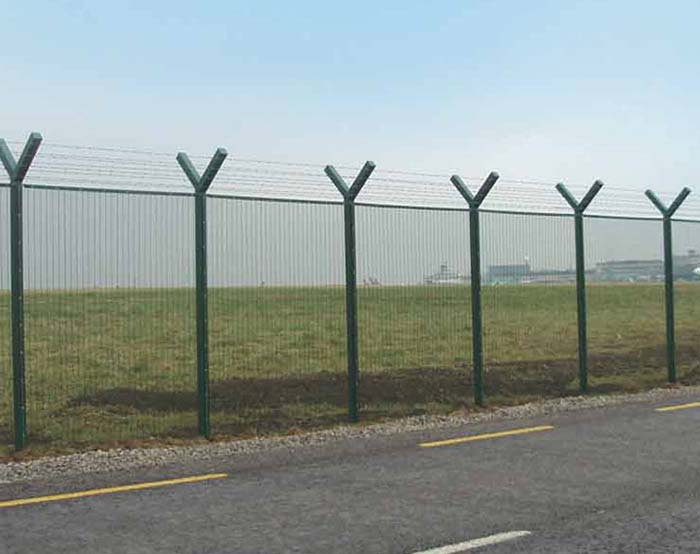

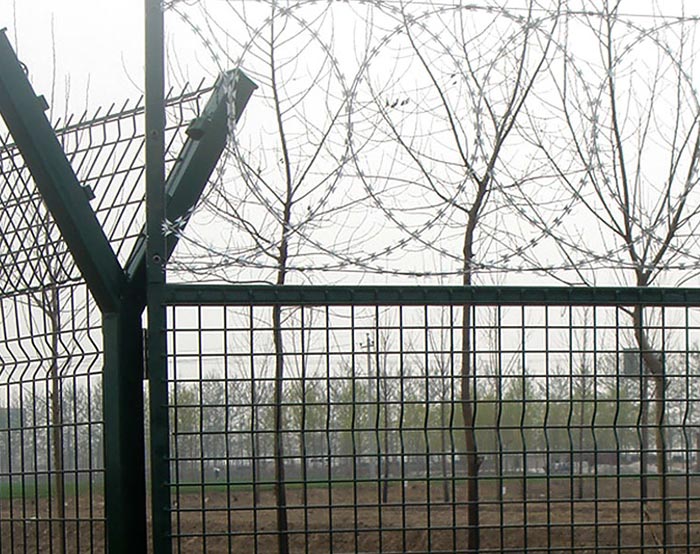

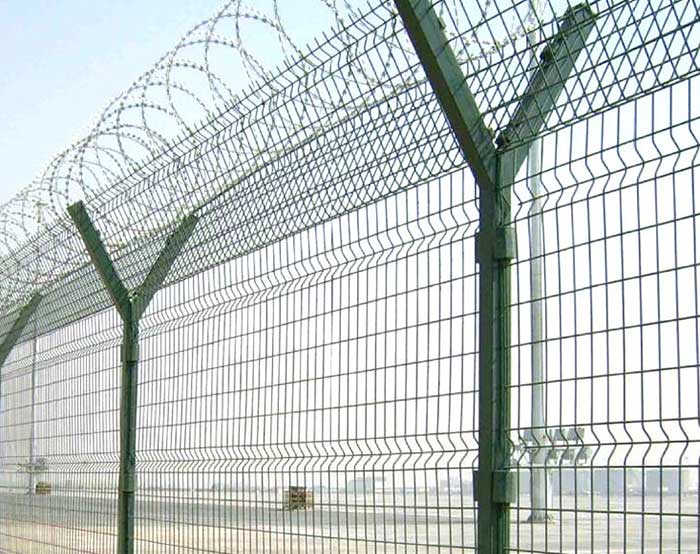

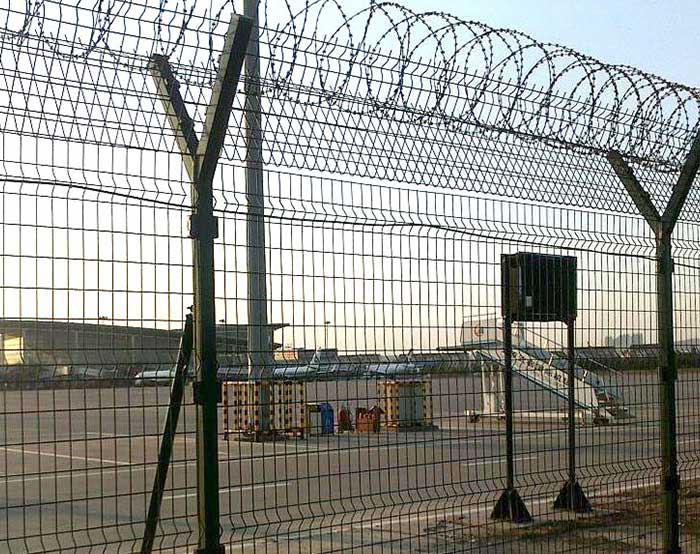

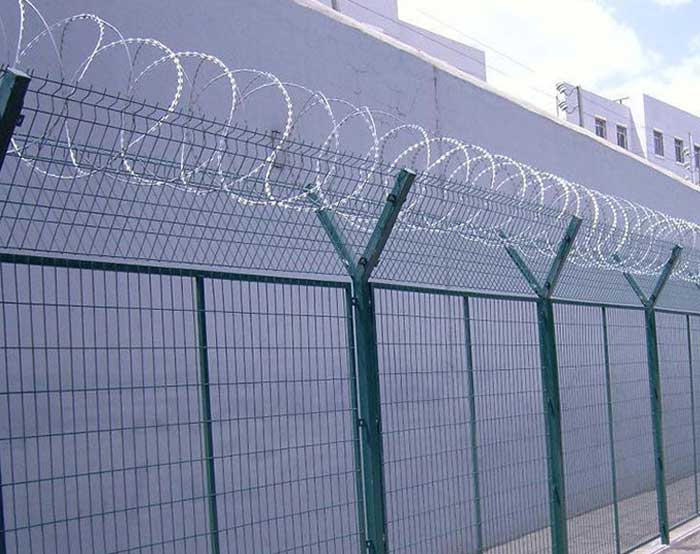

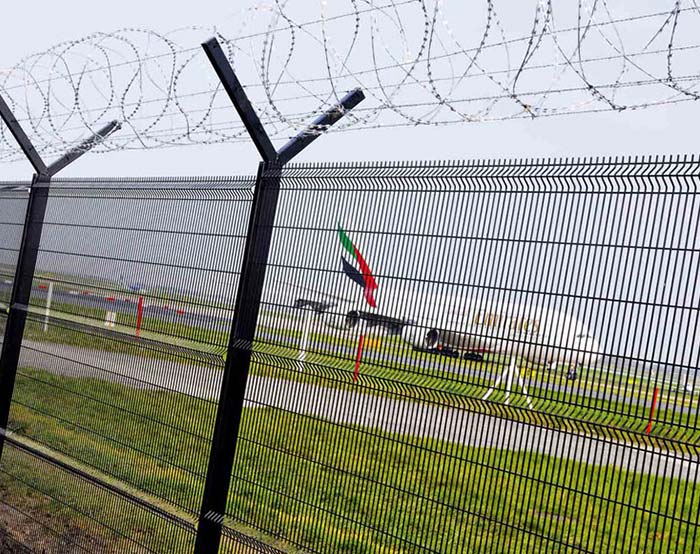

Airport fence is a kind of fence specially designed for airports and some safe places. Airport fence vertical part is same to 3d fence. 50 * 100mm mesh and 4 bends provide the panel with high strength rigid. The V-shaped part on the top of the Airport fence is composed of Y post, V panel, RAZOR wire and 4 sets of clips. The Airport fence system is very robust. The entire design ensures the beauty of the airport. And the V-shaped system completely prevents people from climbing over.

FEATURES

Medium budget

See-through panel

Anti-rust,Long Service Life

Fast Installation

Customer specs available

High Security

COLORS AVAILABLE

Airport fence popular colors

Airport fence popular colors

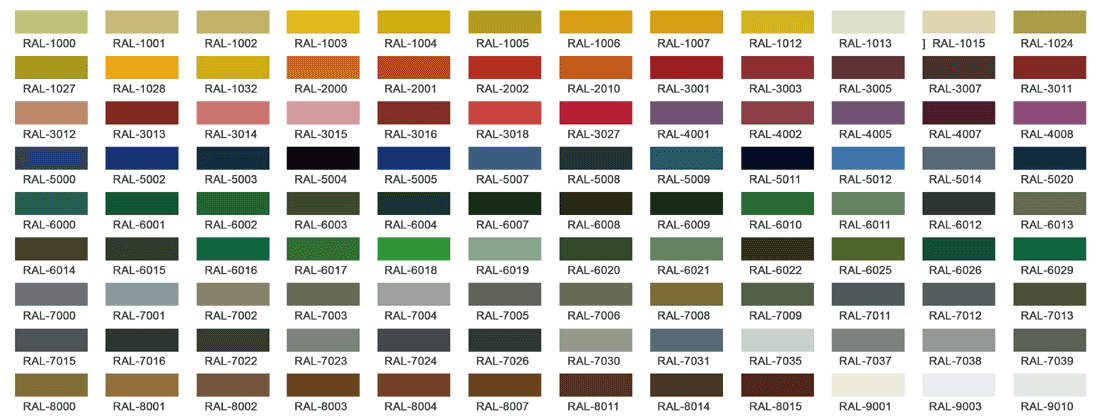

Airport fence available colors

Airport fence available colors

GALLERY

CONTACT US NOW

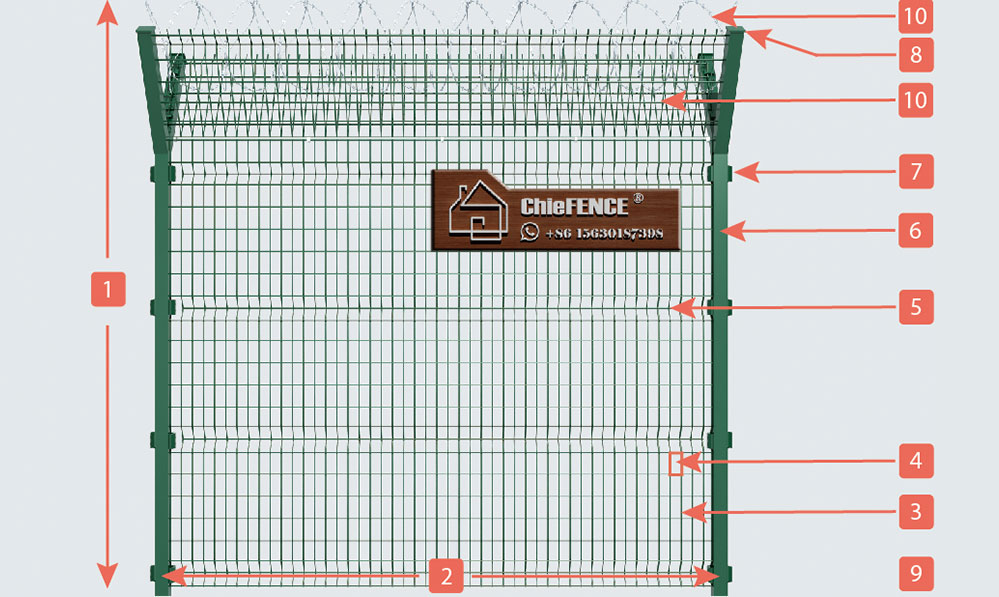

1
HEIGHT:2030mm / 2230mm / 2500mm /2700mm

The panels have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom).

The heavy wires guarantee strength and rigidity.


2
WIDTH: 2300mm / 2500mm / 2900mm

2900mm option can reduce installation & post cost by approx 20%, when compared with a 2.5m wide panel.

If the panel is higher than 2300mm,we will suggest 2300mm wide panel to suit for container size.

3
WIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm

Thicker wire can offer stronger rigid

4
MESH SIZE:

50*200mm / 50*100mm

5

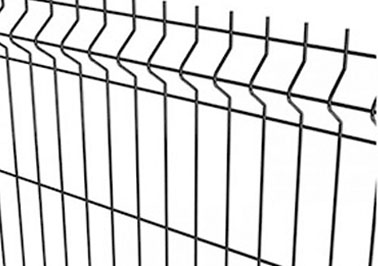

Popular bending method

100mm

  • 100mm

    100mm

6
Y POST:

Suare post: 60*60mm

Rectangle post: 40*60mm

A Suare Post

A Suare Post

B Rectangle Post

B Rectangle Post

7
CONNECTIONS

S-1: Plastic Clamp

S-2: Plastic Clamp

A: Metal spider clamp

B: Metal Square clamp(2pc)

C: Metal square clamp(1pc)

D: Plastic square clamp

E: Plastic Round clamp

F: Metal Round clamp

S-1: Plastic Clamp

S-1: Plastic Clamp

S-2: Plastic Clamp

S-2: Plastic Clamp

A: Metal Spider Clips

A: Metal Spider Clips

B: Metal round clamp

B: Metal round clamp

C: Metal square clamp

C: Metal square clamp

D: Metal square clamp

D: Metal square clamp

E: Plastic round clamp connection

E: Plastic round clamp connection

F: Plastic round clamp connection

F: Plastic round clamp connection

8
POST CAP:

A: Anti-UV plastic cap

B: Metal cap

Anti-UV plastic cap

Anti-UV plastic cap

Metal cap

Metal cap

9
Surface Treatment(Anti-Rust Treatment):

Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)

Electric Galvanized(8-12g/m²) + PVC Coated

Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

Hot Dipped galvanized(40-60g/m²) + PVC Coated

Hot Dipped Galvanized after welding (505g/m²)

Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)

Galfan(200g/m²) + PVC Coated


NOTE:

Be manufactured using galvanized steel wire.

Be coated with exclusive Architectural Grade Powder Coat.

This coating is super-durable and environmentally sound. Our powder coating provides the industry’s Highest Weather ability and Gloss Retention in U.V. Exposure.

Up to 3 times longer than competitor’s powder coatings


Pre-Galvanized

Pre-Galvanized

Powder Coating

Powder Coating

PVC Coating

PVC Coating

Hot Dipped Galvanized

Hot Dipped Galvanized

10
OPTIONAL ACCESSORIES

A: V ARM

B: BARBED WIRE

C: CONCERTINA RAZOR WIRE

D: V PANEL


The post can be "Y" POST and straight post +V top

V panel can also replaced by "6 lines barbed wire"

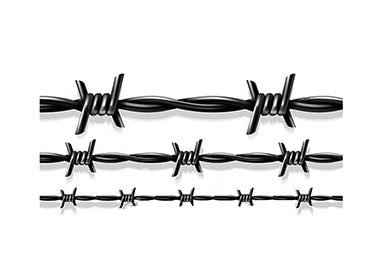

Barbed Wire

Barbed Wire

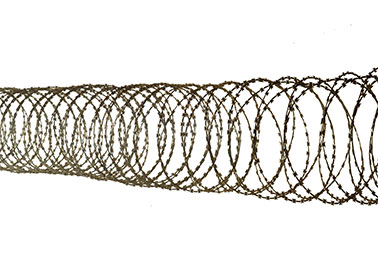

Concertina Razor Wire

Concertina Razor Wire

V arm A for Square post

V arm A for Square post

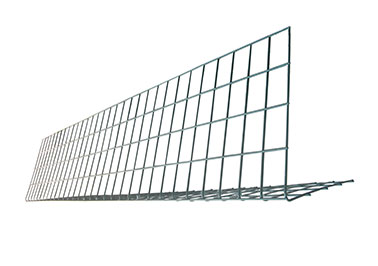

V panel

V panel

What we need to prepare

Option A: Y POST +V PANEL
A: panel
B: Y post with rain hat
C: Clips for straight panel(4 clips for 2m high fence, 3 clips if the panel is lower than 1.5m)
D: Clips for V panel(4 clips )
E: V Panel
Airport Fence

Concertina Razor Wire

Airport Fence

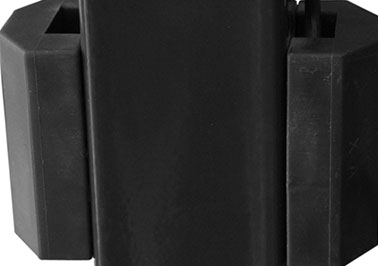

S-1 Plastic Clips

Airport Fence

S-2 Plastic Clips

Airport Fence

V Panel

Airport Fence

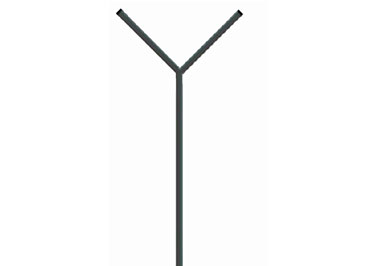

Y post

Airport Fence

Panel

Option B: Y POST +Barbed wire
A: panel
B: Y post with rain hat
C: Clips for straight panel(4 clips for 2m high fence, 3 clips if paenl is lower than 1.5m)

D: Barbed wire

E: Razor wire

Airport Fence

Barbed Wire

Airport Fence

Concertina Razor Wire

Airport Fence

S-1 Plastic Clips

Airport Fence

Y post

Airport Fence

Panel

Installation Method

Option A: Y POST+V PANEL

Measure and mark the post location as per the panel width
Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 01:

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Install the post with concrete.
Each post must be set perfectly plum in the concrete

Step 02

Install the post with concrete. Each post must be set perfectly plum in the concrete

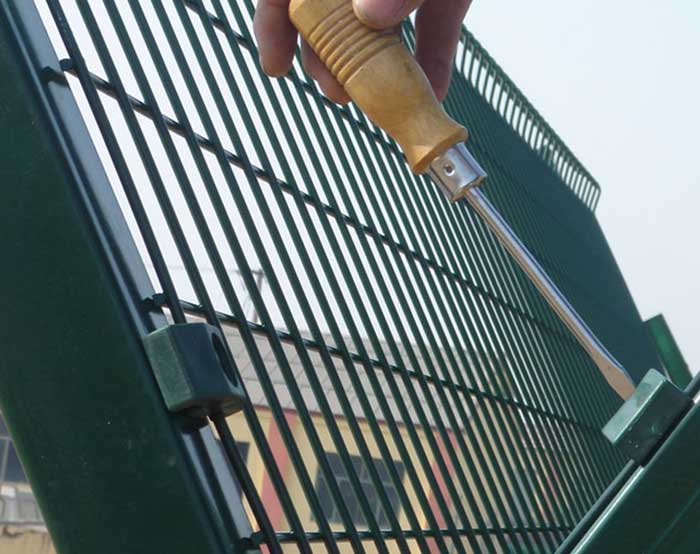

Install 1 panel to post with clips.

Step 03:

Install 1 panel to post with clips.

Install the second post with concrete.
Each post must be set perfectly plum in the concrete

Step 04:

Install the second post with concrete. Each post must be set perfectly plum in the concrete

Fix the

Step 05:(Option-A)

Fix the "V Panel" with Plastic M clips

Fix the concertina razor wire

Step 06:(Option-A)

Fix the concertina razor wire

Option B: Y POST+Barbed wire

Measure and mark the post location as per the panel width
Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 01

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Install the post with concrete.
Each post must be set perfectly plum in the concrete

Step 02

Install the post with concrete. Each post must be set perfectly plum in the concrete

Install 1 panel to post with clips.

Step 03:

Install 1 panel to post with clips.

Install the second post with concrete.
Each post must be set perfectly plum in the concrete

Step 04:

Install the second post with concrete. Each post must be set perfectly plum in the concrete

Fix the 6 lines tension wire or barbed wire

Step 05:(Option-B)

Fix the 6 lines tension wire or barbed wire

Fix the concertina razor wire

Step 06:(Option-B)

Fix the concertina razor wire

Production Flow Chart

Steel Wire STEP 01

Steel Wire

Cutting STEP 02

Cutting

Welding STEP 03

Welding

Bending STEP 04

Bending

Powder Coating STEP 05

Powder Coating

Panel STEP 06

Panel

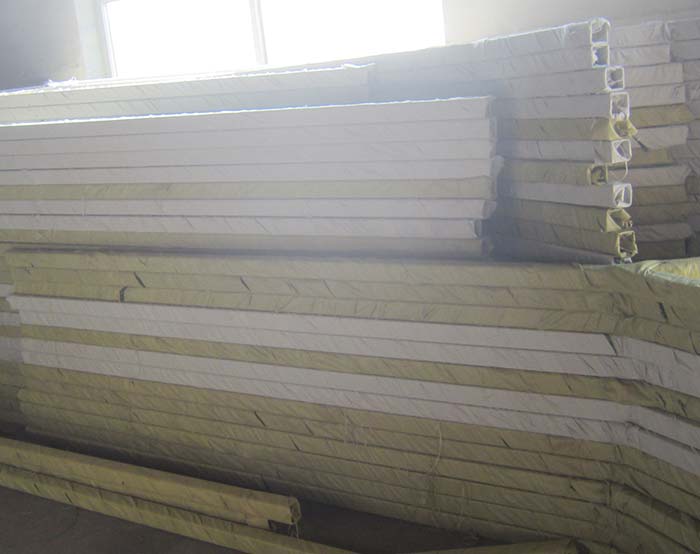

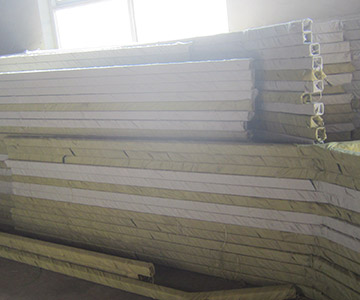

PACKAGE

Accessories Package

Accessories Package

Panel Package

Panel Package

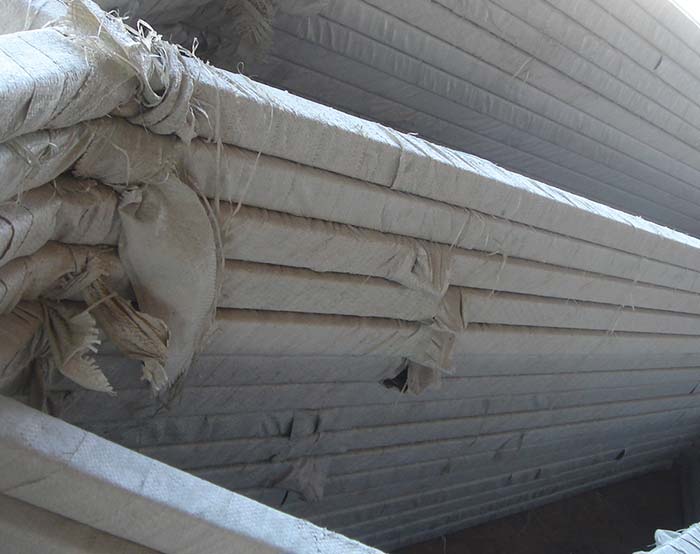

Post Package

Post Package

REFORENCE

2011,17000m Airport fence for New Doha International Airport in Qatar.

2012,4279m Airport fence project for Australia..

2013,22000m Airport fence Warri Airport of Nigeria.

2014,4500m Airport fence project for Nigeria.

2015,5541m Airport fence project for Algeria Army.

2017,5000m Airport fence for Turkmenistan.

2019,2430m Airport fence for Nigeria.

CUSTOMER SAY

ChieFENCE did a fantastic job of Airport fencing in China. It was a difficult job with uneven ground. but ChieFENCE arranged and took care of everything. He finished production in good time, nice service beyond what was necessary and was a pleasure to deal with even before I broke out the coffees and bacon sandwiches!

-Joy

We would be happy to recommend your service to others – many thanks for a job well done! We were impressed by your level of communication from start to finish and found your tradesperson to be both friendly and helpful.

-Friendly and Helpful

I have found ChieFENCE to be prompt, pleasant and professional. They understood what I needed done, service with the requirements, and I am very happy with the end result.

-Prompt Pleasant and Professional

ChieFENCE are, without a doubt, a first class company to do business with. I have been around the construction business for many years during my lifetime. ChieFENCE and their hard working employees are simply the cream of the crop.

-First Class Company to do Business with

Just wanted to say thanks for a great job, the airport fence look fantastic, just what we wanted, perfect. Thanks for your excellent service (and answering all my emails!) Thanks to Gavin and the Sales – they were very professional, tidy, knowledgable and obviously knew what they were doing. We would have no hesitation in recommending you.

-Thanks for a Great Job

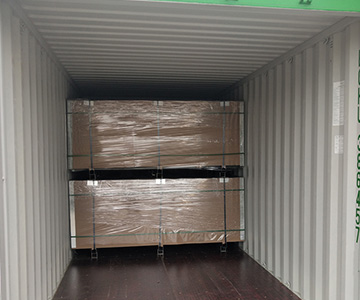

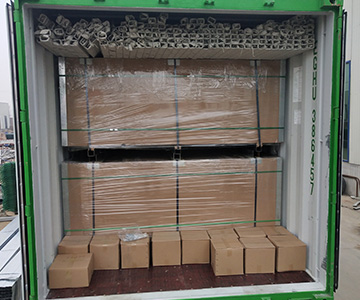

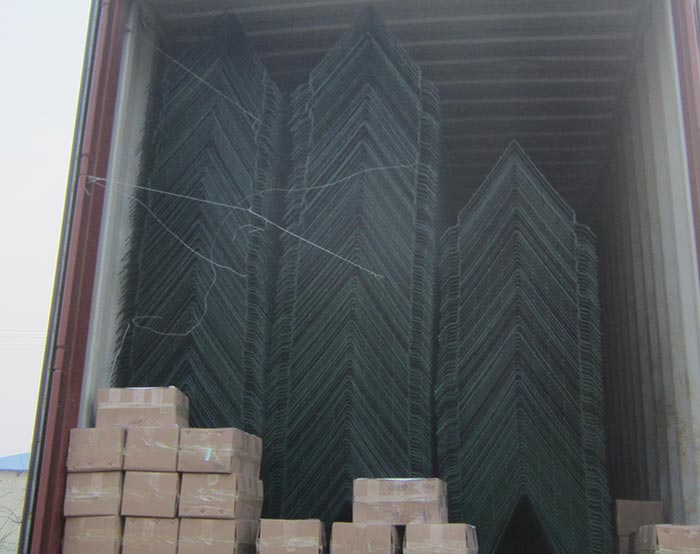

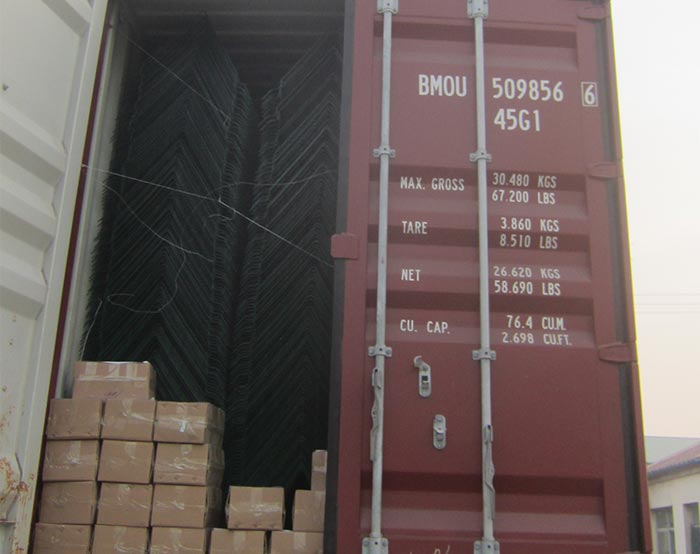

PACKING AND LOADING

If need more photos, pls visit the news page
