BRC Fence
  • Why BRC Fence
  • How to select BRC Fence
  • How to install BRC Fence
  • Video show
  • Past projects

More information in above 5 labels

INTRODUCTION

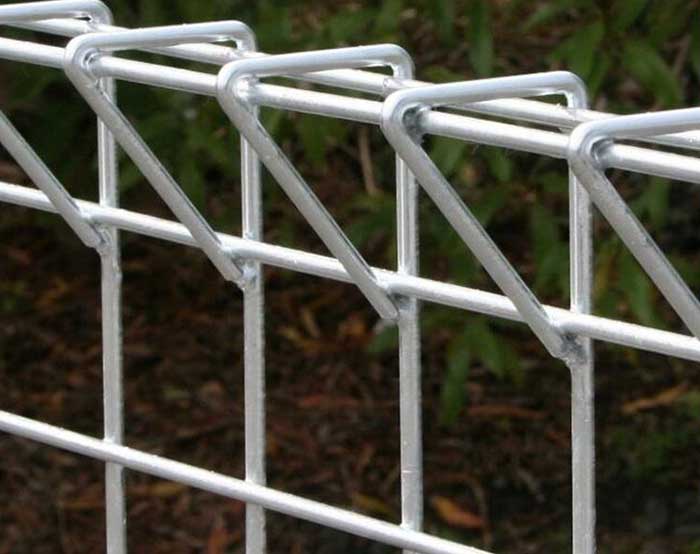

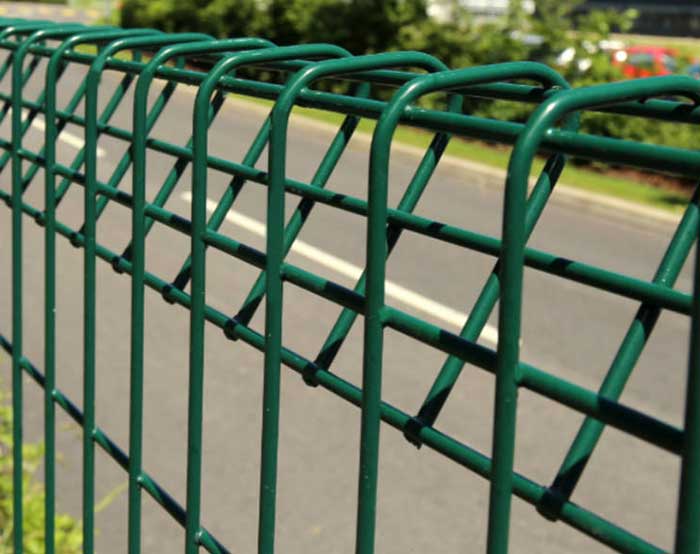

BRC FENCE is a special fence with friendly round top and trigonal edges.

Because of the speicial design, the BRC fence are rigid and safe. BRC FENCE is widely used for park, school, play ground, stadium etc

But the trigonal edges design is not good for shipping. So this BRC fence are only hot sale in Asia for now.


FEATURES

Lower budget

See-through panel

Anti-rust,Long Service Life

Fast Installation

Rigidity

low loading ability

COLORS AVAILABLE

BRC Fence popular colors

BRC Fence popular colors

BRC Fence available colors.

BRC Fence available colors

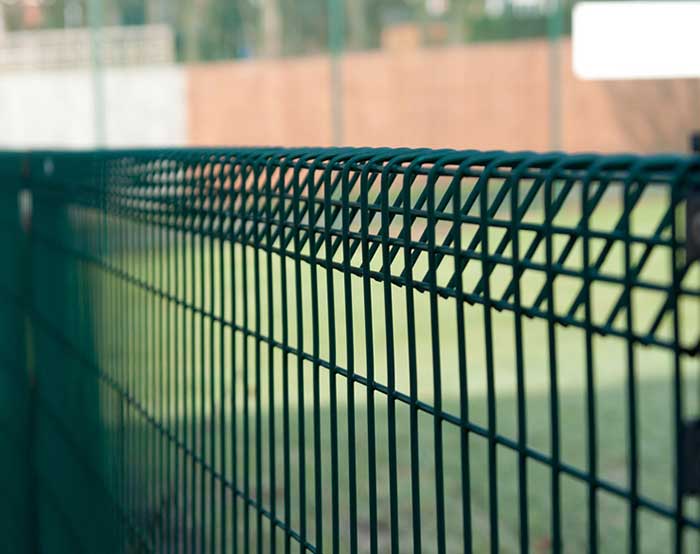

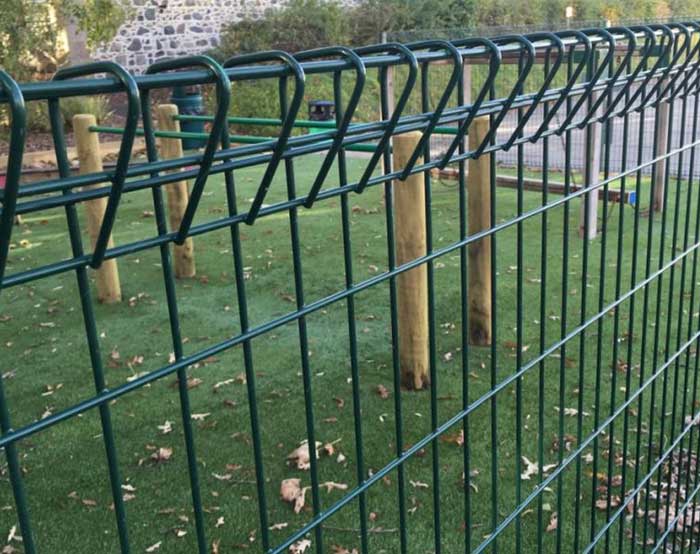

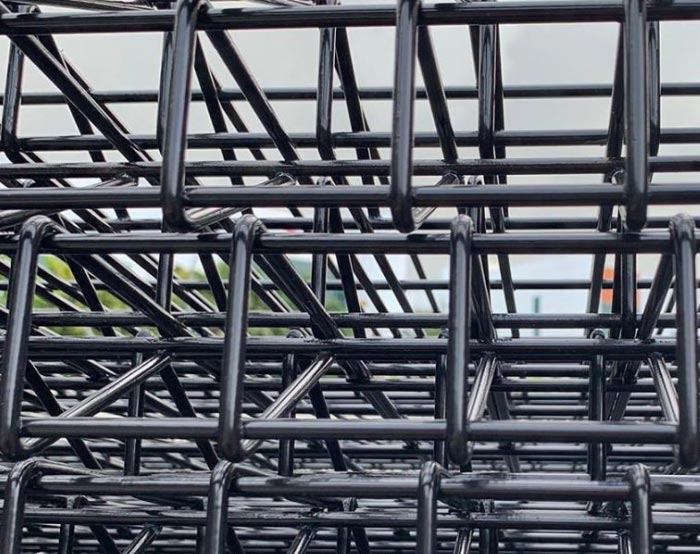

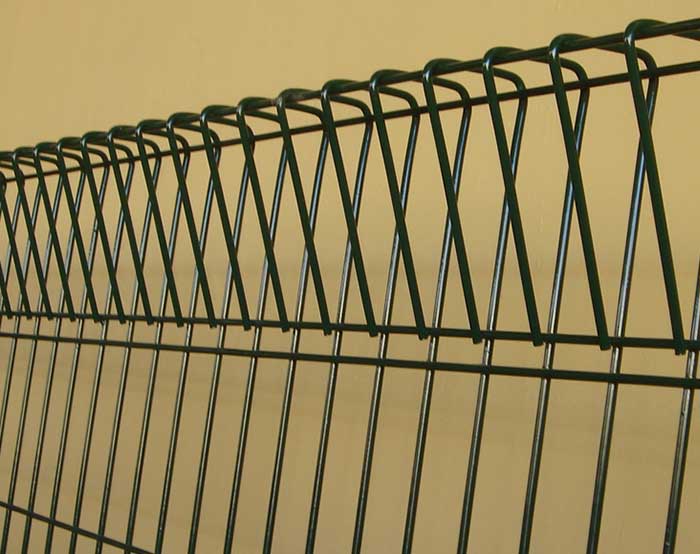

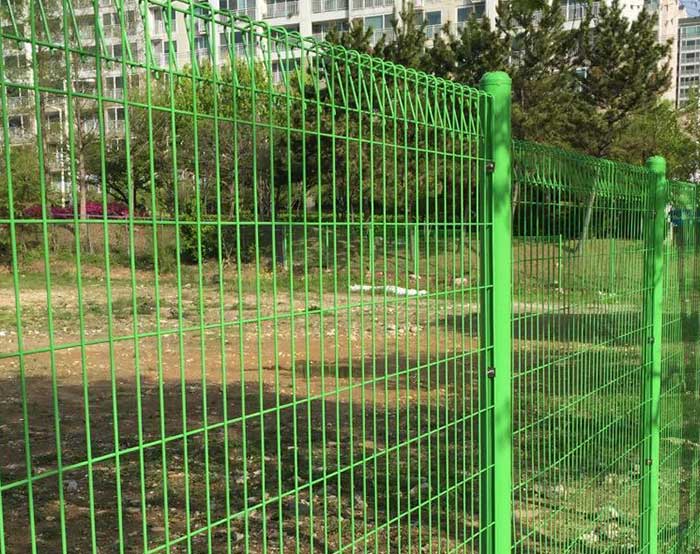

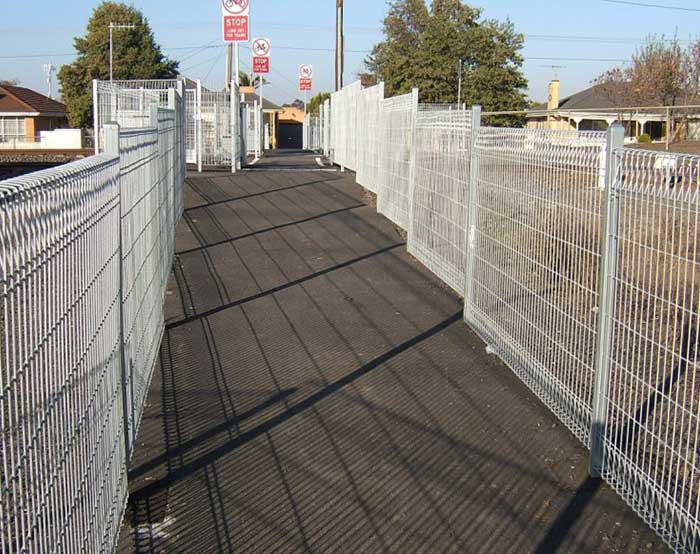

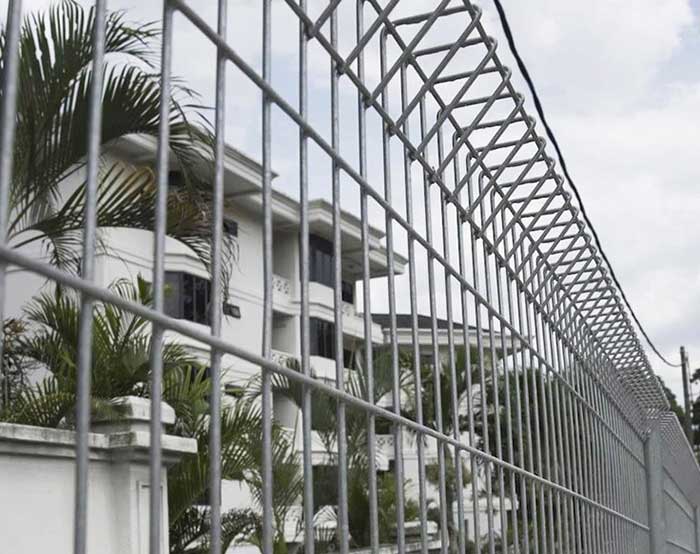

GALLERY

CONTACT US NOW

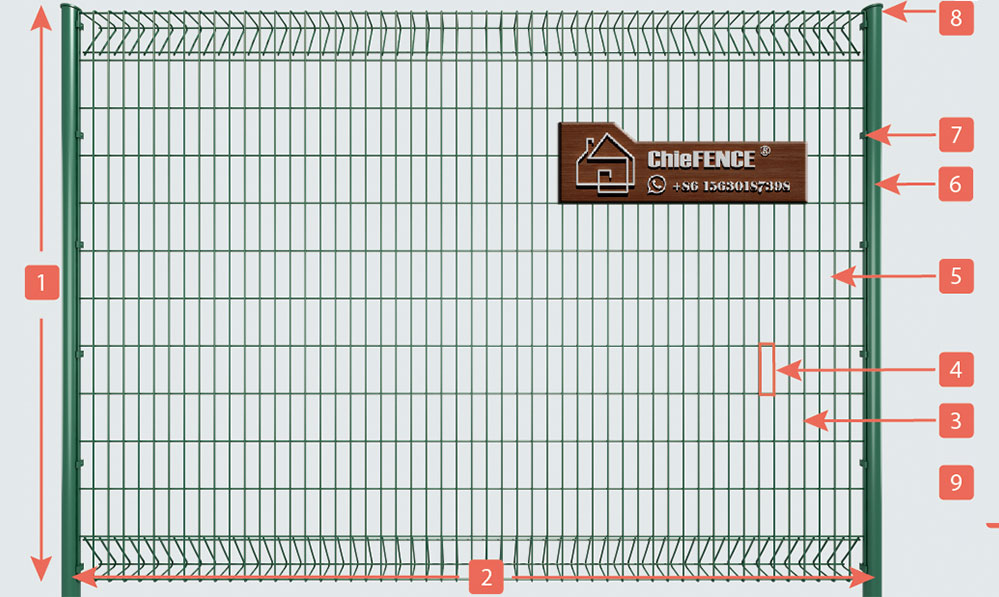

1

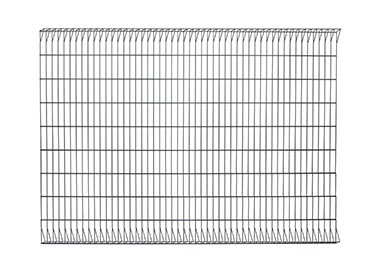

HEIGHT:1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm

The panels have top and bottom trigonal bending(50+100mm or 75+100mm) for rigid

The heavy wires guarantee strength and rigidity.


2
WIDTH: 2300mm / 2500mm / 2900mm

2900mm option can reduce installation & post cost by approx 20%, when compared with a 2.5m wide panel.

If the panel is higher than 2300mm, we will suggest 2300mm wide panel to suit for container size.

3
WIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm

Thicker wire can offer stronger rigid

4
MESH SIZE

50*150mm/ 50*200mm

5

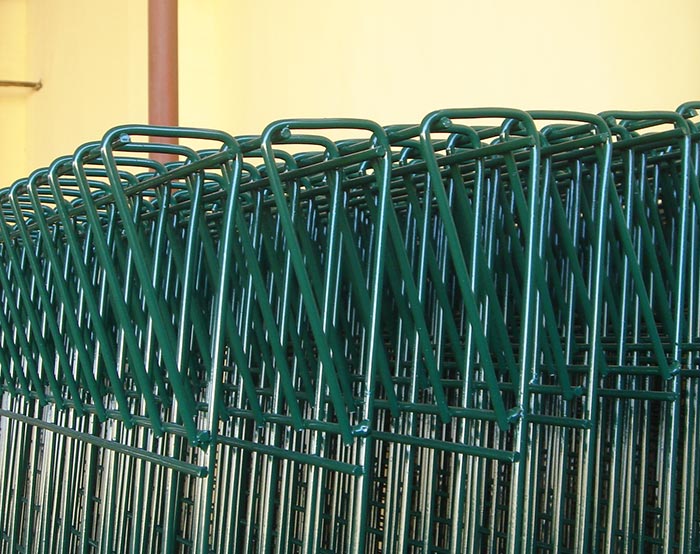

Popular bending method

50mm+100mm / 75mm+100mm

  • 50mm+100mm

    50mm+100mm

  • 75mm+100mm

    75mm+100mm

6
POST:

A: Round post: φ48mm  φ60mm

B: Rectangle post :40*60mm

C: Square post: 50*50mm 60*60mm

A: Round post

A: Round post

B: Rectangle post

B: Rectangle post

C: Square post

C: Square post

7
Connection

A: "V"-CLIP for round post

B: Metal spider clips for square post

8
POST CAP:

A: Anti-UV plastic cap(Round)

B: Anti-UV plastic cap(Square)

A: Round

A: Round

B: Square

B: Square

9
Surface Treatment(Anti-Rust Treatment):

Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)

Electric Galvanized(8-12g/m²) + PVC Coated

Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

Hot Dipped galvanized(40-60g/m²) + PVC Coated

Hot Dipped Galvanized after welding (505g/m²)

Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)

Galfan(200g/m²) + PVC Coated


NOTE:

Be manufactured using galvanized steel wire.

Be coated with exclusive Architectural Grade Powder Coat.

This coating is super-durable and environmentally sound. Our powder coating provides the industry’s Highest Weather ability and Gloss Retention in U.V. Exposure.

Up to 3 times longer than competitor’s powder coatings


Pre-Galvanized

Pre-Galvanized

Powder Coating

Powder Coating

PVC Coating

PVC Coating

Hot Dipped Galvanized

Hot Dipped Galvanized

What we need to prepare

GOODS:
1 panel.
1 post with a rain hat.
Clips(4 clips for 2m high fence, 3 clips if the panel is lower than 1.5m)

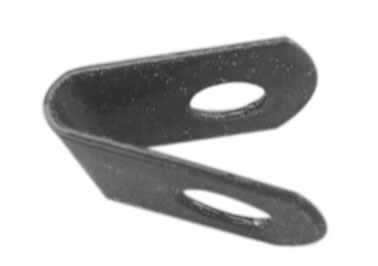

BRC Fence clip
BRC Fence panel

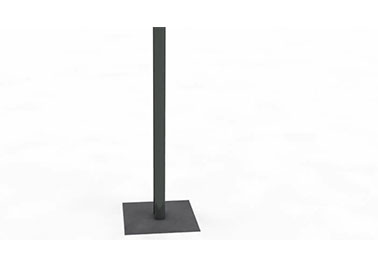

BRC Fence post

Installation Method

Measure and mark the post location as per the panel width
Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 01

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Install the post with concrete.
Each post must be set perfectly plum in the concrete.

Step 02:

Install the post with concrete. Each post must be set perfectly plum in the concrete.

Install 1 panel to post with clips.

Step 03:

Install 1 panel to post with clips.

Install the second post with concrete.
Each post must be set perfectly plum in the concrete

Step 04:

Install the second post with concrete. Each post must be set perfectly plum in the concrete

Fix the fence, The cement will set in a few hours

Step 05:

Fix the fence, The cement will set in a few hours

Production Flow Chart

Steel Wire STEP 01

Steel Wire

Cutting STEP 02

Cutting

Welding STEP 03

Welding

Bending STEP 04

Bending

Powder Coating STEP 05

Powder Coating

BRC Panel STEP 06

BRC Panel

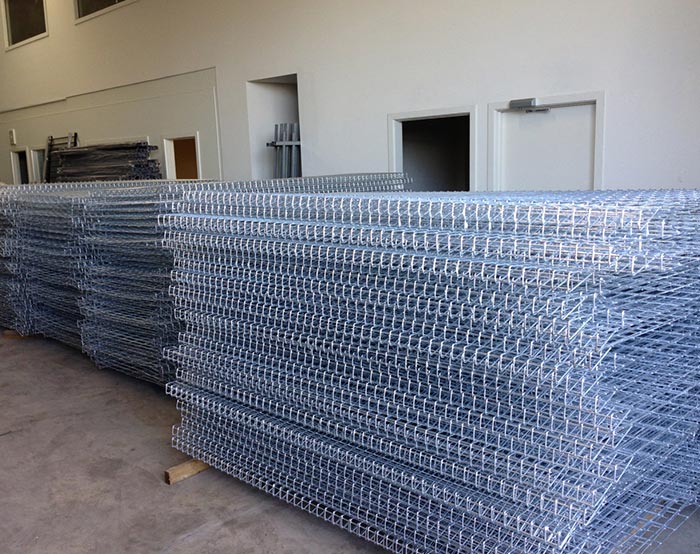

PACKAGE

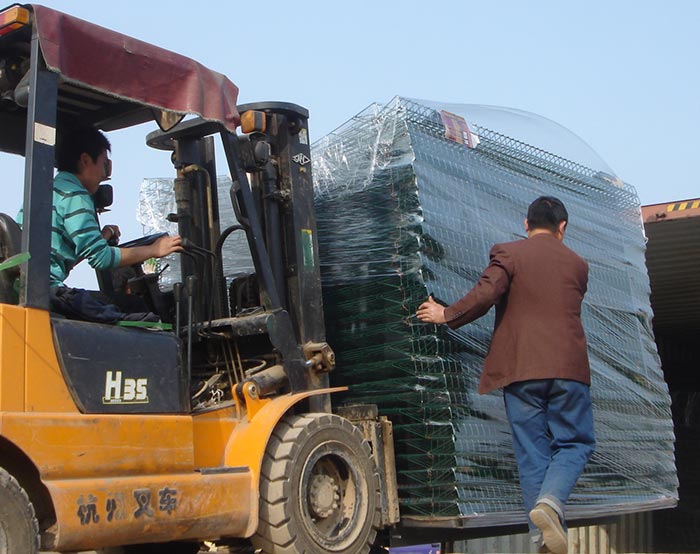

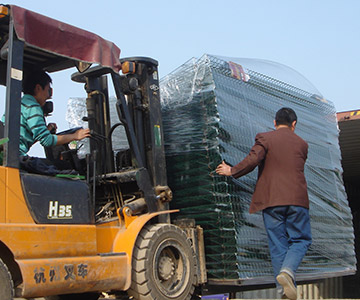

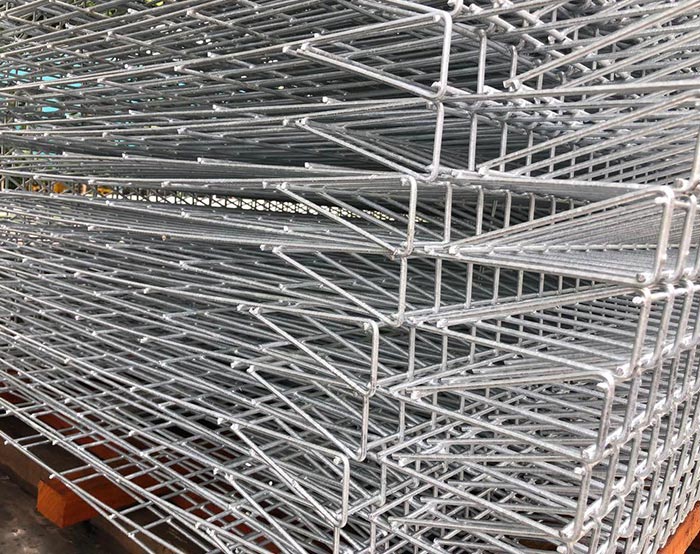

Panel loading

Panel loading

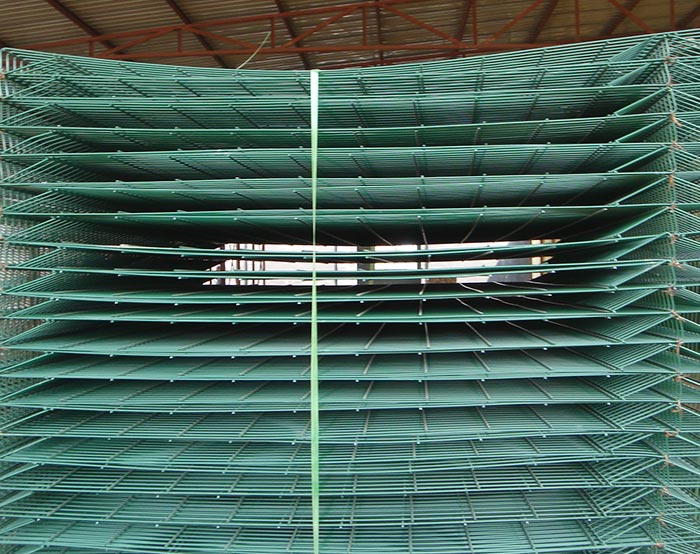

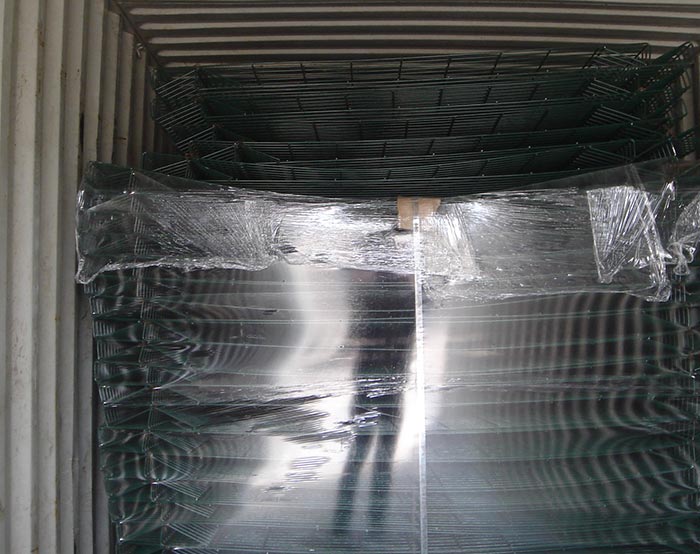

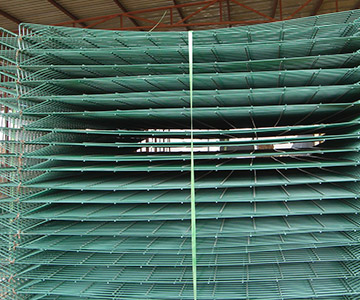

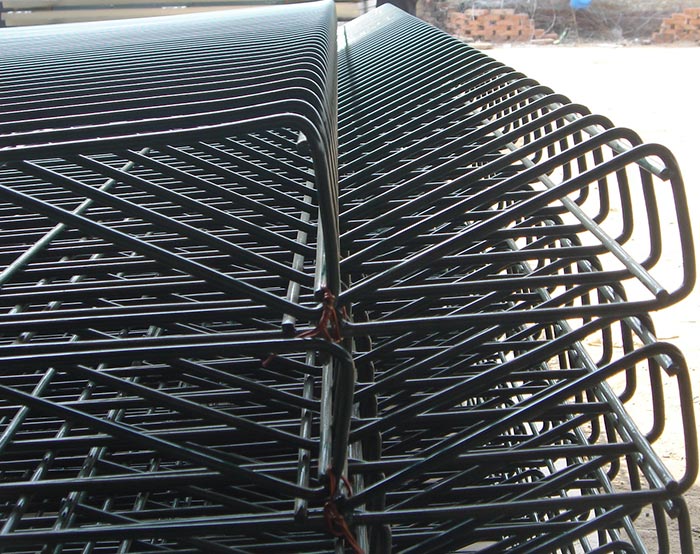

Panel packing

Panel packing

REFORENCE

2011,3475m BRC fence project for Indonesia.

2012,5129m BRC fence project for Malaysia.

2013,6365m BRC fence project for Singapore.

2014,6475m BRC fence project for Malaysia.

2015,3465m BRC fence project for Singapore.

2017,4397m BRC fence for Brunei.

2018,3155m BRC fence for Brunei.

2019,6382m BRC fence for Indonesia.

CUSTOMER SAY

I have buy this BRC fence many years, the chiefence fence panel is flat, bight, packing well, I believe we will working for long times.

-Kim

We got scammed by another fencing company offering similar fencing, only to pay and then not show up, Thank you ChieFence for assisting us with better pricing and great quality"

-Botha

Thank you ChieFence for giving me many professional fencing suggestions to make my tender successful, and I am very satisfied with your quality too, your powder coating for the fence post is the best quality I have ever seen, look forward for next cooperation

-Tom

Hello, everyone, I am Rohan, I have imported fences from China for 6 years, ChieFence is the best among all my suppliers, The zinc aluminum wire fence they provide can guarantee 10 years, they quality has passed our anti-rust test, and ChieFence’s sales manager is the best known about the production process among all I have met, I have three suppliers before but now I only have one supplier, ChieFence!

-Rohan

In recent years, we have used the ChieFence service twice, in addition to the work done on it, and the attention to customer service and details, it is nothing more than praise. We need to replace four different fences without much trouble. The end result is exactly the structure we need, high-quality materials, and beautiful appearance. We are very satisfied with the prices and recommend them without hesitation.

-Marx

PACKING AND LOADING
