Double Wire Fence
  • Why Double Wire Fence
  • How to select Double Wire Fence
  • How to install Double Wire Fence
  • Video show
  • Past projects

More information in above 5 labels

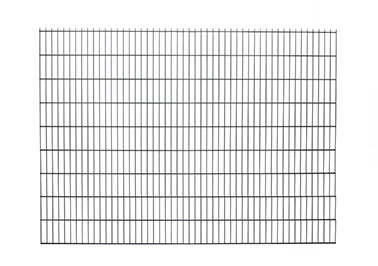

INTRODUCTION

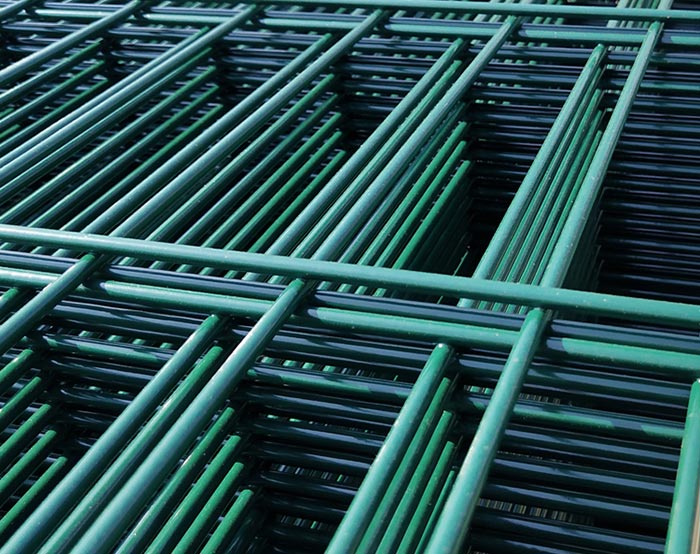

Double Wire Fencing, with its flat panel, using double horizontal wires and a vertical wire to form a rigid mesh. The surface treatment is coated by hot dipped galvanization or galvanized + polyester powder or  galvanized + PVC coating. ChieFENCE Double Wire Fencing's fitting is a RHS post. Double Wire Fencing are popular in German market, using for parks, industrial sites, residents etc.

FEATURES

Hot same in Europe

See-through panel

Anti-rust,Long Service Life

Fast Installation

Customer specs available

Rigidity

COLORS AVAILABLE

Double wire fence popular colors

Double wire fence popular colors

Double wire fence available colors

Double wire fence available colors

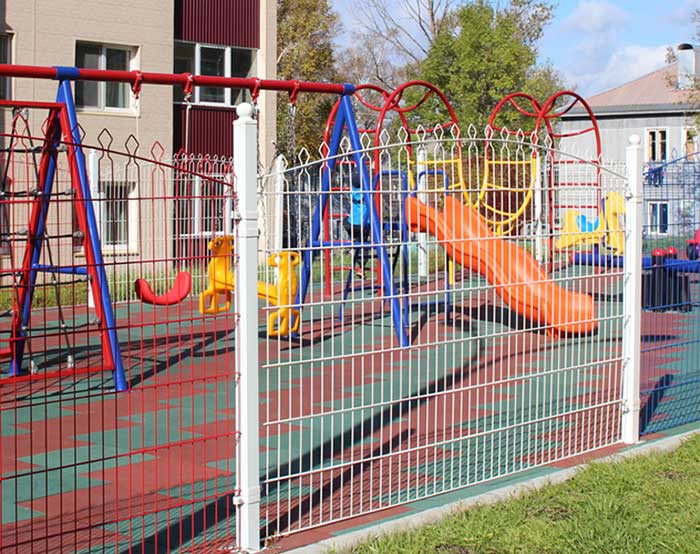

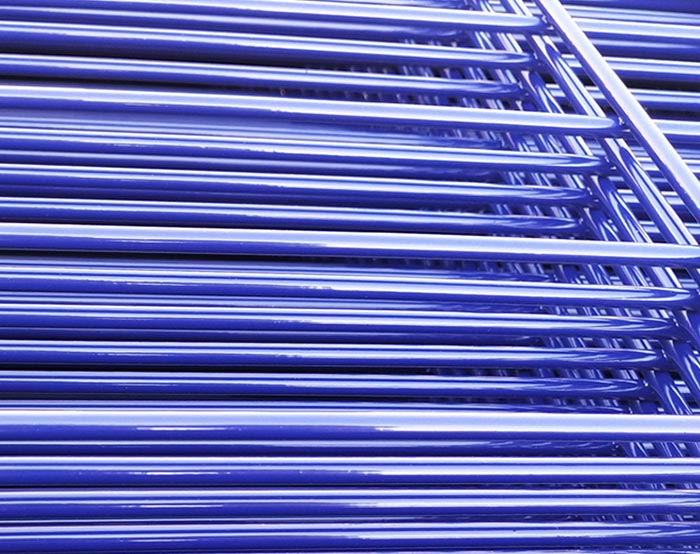

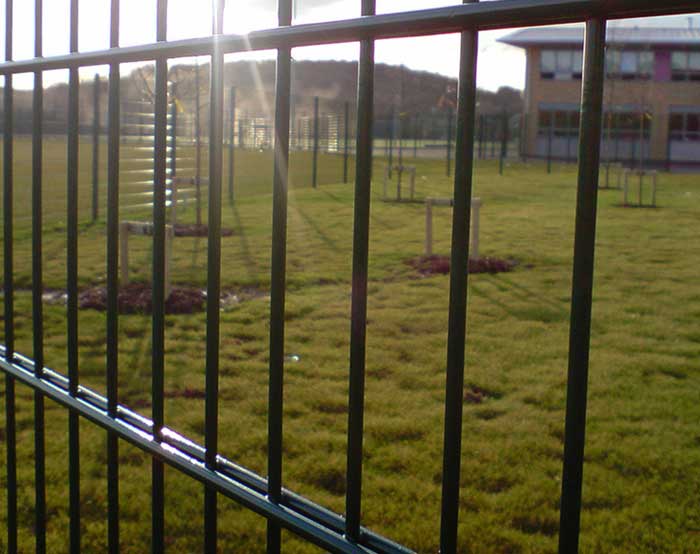

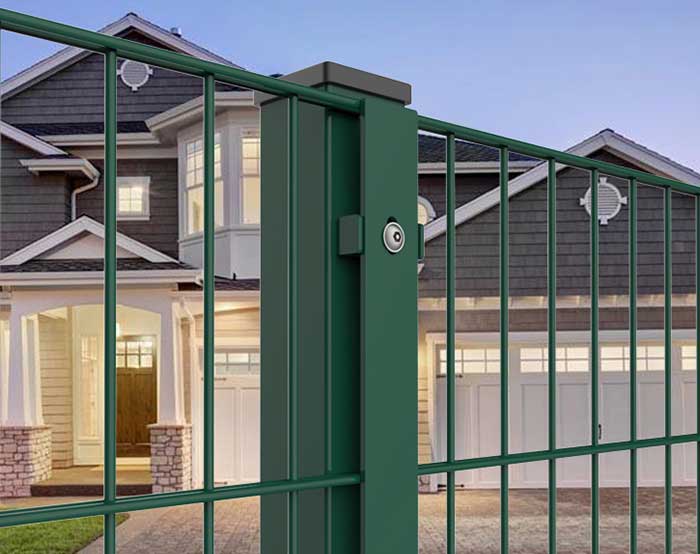

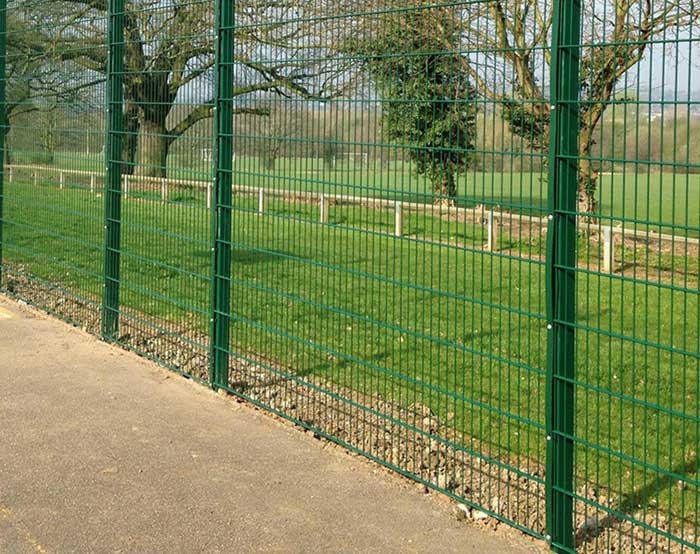

GALLERY

CONTACT US NOW

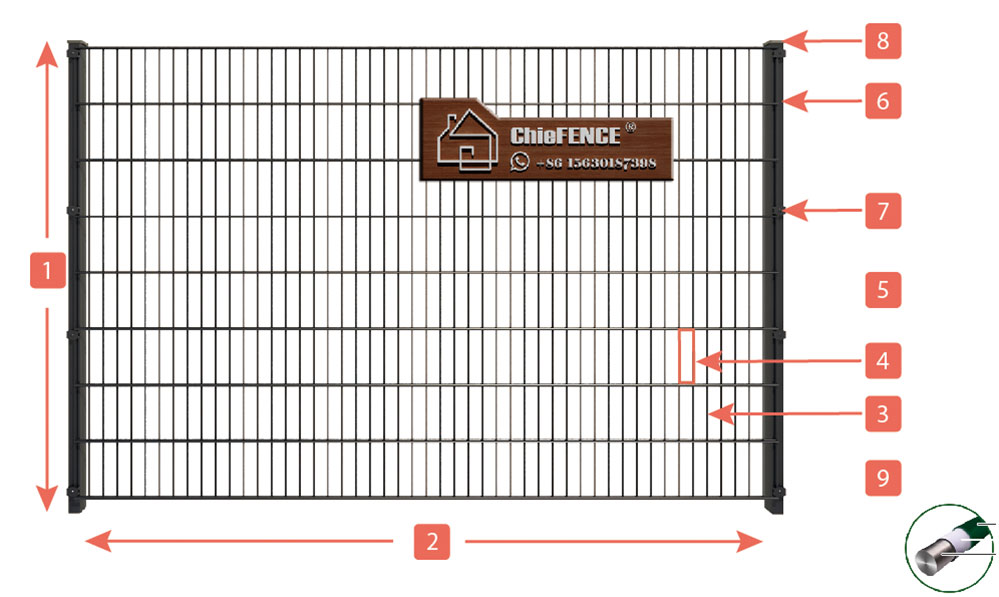

1

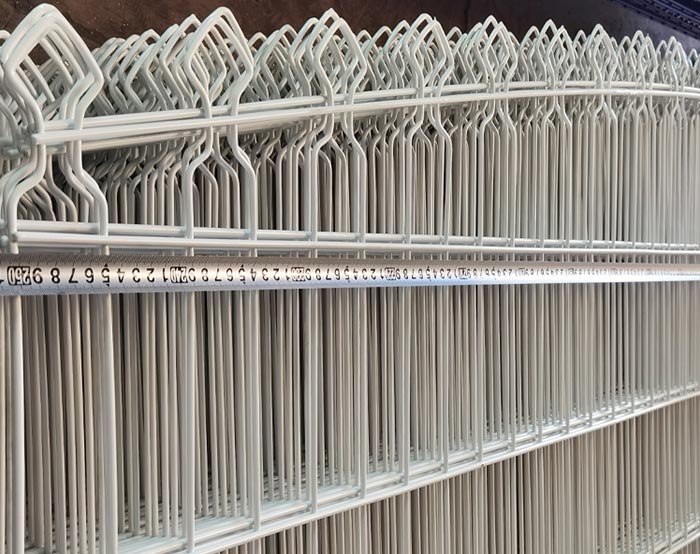

HEIGHT:1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm

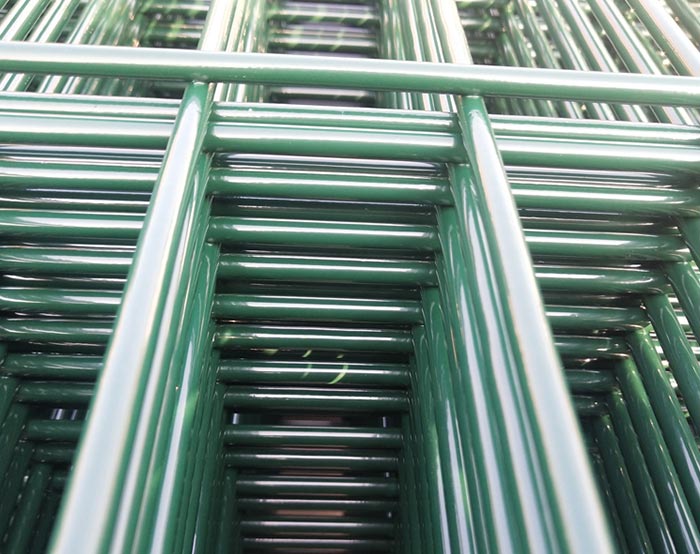

The panels have double horizontal wire (twins horizontal wire) for rigid

The heavy wires guarantee strength and rigidity.


2
WIDTH: 2300mm / 2500mm / 2900mm

2900mm option can reduce installation & post cost by approx 20%, when compared with a 2.5m wide panel.

If the panel is higher than 2300mm, we will suggest 2300mm wide panel to suit for container size.

3

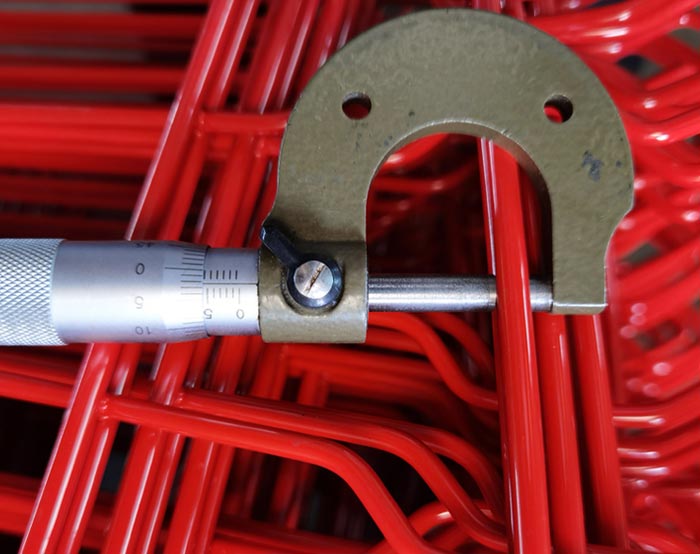

WIRE THICKNESS: 6/5/6mm, 5/4/5mm, 8/6/8mm

Double horizontal wire can offer stronger rigid

4

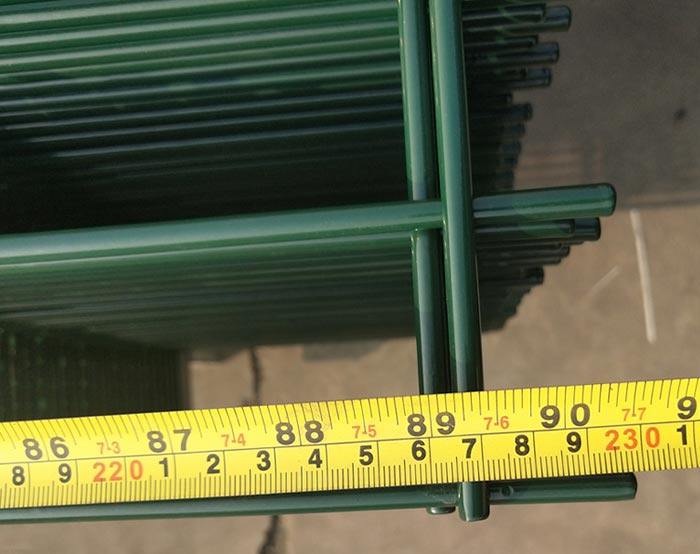

MESH SIZE: 50*200mm(center to center) / 50*200mm(edge to edge)

The 2 options are similar.

50*200mm(edge to edge) is lower budget

5
No Bend

No Bend

6

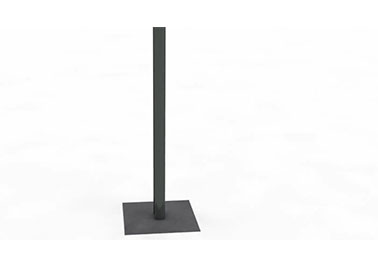

POST:

A: Rectangle post: 40*60mm

B: Square post: 60*60mm & 80*80mm

C: Peach post: 50*70mm & 70*100mm  (Self-lock Type)


A Rectangle Post

A Rectangle Post

B Square Post

B Square Post

C Peach Post

C Peach Post

7
Connection

A: Square clamp

B: Metal clip

C: Stainless steel clamp

D: Peach post (Self-lock type)

E: Clamp bar

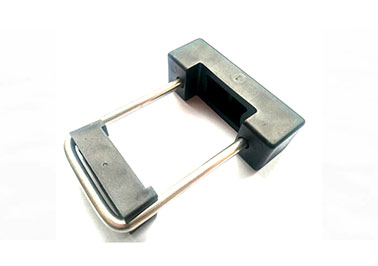

A Square Clamp

A Square Clamp

B Metal Clip

B Metal Clip

C Stainless Steel Clamp

C Stainless Steel Clamp

D Peach Post  (Self-lock type)

D Peach Post (Self-lock type)

E Clamp Bar

E Clamp Bar

8
POST CAP:

A: anti-UV plastic cap

B: metal cap

Anti-UV plastic cap

Anti-UV plastic cap

Metal cap

Metal cap

9
Surface Treatment(Anti-Rust Treatment):

A: Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)

B: Electric Galvanized(8-12g/m²) + PVC Coated

C: Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

D: Hot Dipped galvanized(40-60g/m²) + PVC Coated

E: Hot Dipped Galvanized after welding (505g/m²)

F: Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)

G: Galfan(200g/m²) + PVC Coated


Be manufactured using galvanized steel wire.

Be coated with exclusive Architectural Grade Powder Coat.

This coating is super-durable and environmentally sound. Our powder coating provides the industry’s Highest Weather ability and Gloss Retention in U.V. Exposure.

Up to 3 times longer than competitor's powder coatings


Pre-Galvanized

Pre-Galvanized

Powder Coating

Powder Coating

PVC Coating

PVC Coating

Hot Dipped Galvanized

Hot Dipped Galvanized

10
OPTIONAL ACCESSORIES

A: V ARM

B: SINGLE ARM

C: BARBED WIRE

D: CONCERTINA RAZOR WIRE

E: FLAT WRAP RAZOR WIRE

V Arm

V Arm

Single Arm

Single Arm

Barbed Wire

Barbed Wire

Concertina Razor Wire

Concertina Razor Wire

Flat Wrap Razor Wire

Flat Wrap Razor Wire

What we need to prepare

Goods:
1 panel
1 post with rain hat
Clips(4 clips for 2m high fence, 3 clips if the panel is lower than 1.5m)Clips(4 clips for 2m high fence, 3 clips if the panel is lower than 1.5m)
Double Wire Fence

1. Panel

Double Wire Fence

2. Post

Double Wire Fence

3. Clamp

Installation Method

Measure and mark the post location as per the panel width
Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 01

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Install the post with concrete.
Each post must be set perfectly plum in the concrete.

Step 02:

Install the post with concrete. Each post must be set perfectly plum in the concrete.

Install 1 panel to post with clips.

Step 03:

Install 1 panel to post with clips.

Install the second post with concrete.
Each post must be set perfectly plum in the concrete

Step 04:

Install the second post with concrete. Each post must be set perfectly plum in the concrete

Fix the fence, The cement will set in a few hours

Step 05:

Fix the fence, The cement will set in a few hours

Production Flow Chart

Steel Wire STEP 01

Steel Wire

Cutting STEP 02

Cutting

Welding STEP 03

Welding

Powder Coating STEP 04

Powder Coating

Panel STEP 05

Panel

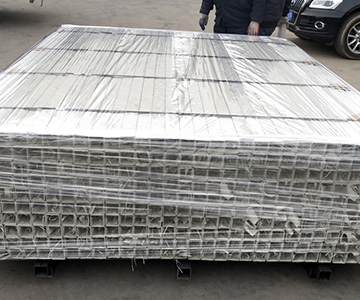

PACKAGE

Accessories Package

Accessories Package

Panel Package

Panel Package

Post Package

Post Package

REFORENCE

2011,5000m Double wire fence project for Algeria.

2012,4766m Double wire fence project for Estonia.

2013,2263m Double wire fence project for Russia

2014,4500m Double wire fence project for Algeria

2015,3011m Double wire fence project for Russia

2015,2377m Double wire fence project for United Arab Emirates(UAE)

2018,2643m Double wire fence for Qatar

2019,3900m Double wire fence for Russia

CUSTOMER SAY

I’m from Estonia, ChieFENCE’s double wire fence is of very high quality. Other suppliers are produced in several steps. But ChieFENCE can be completed in one time. The quality is better than other suppliers. And the quality of spraying is very good. I like it very much.

-Mati

I’m Anna and I provide fence to the kindergarten. ChieFENCE's fence is very good. It's very beautiful. In addition, it is very smooth and will not hurt children. The children and I like it very much.

-Anna

My name is Ben and I have been in FENCE business for many years. I like ChieFENCE's double wire fence. It is rigid. And the design provided by ChieFENCE saves me money.

-Ben

My name is Tan and I have been buying fence from ChieFENCE. If you try it, you will know that ChieFENCE is unique.

-Tan

I have a project that requires PVC double wire fence. I tried a lot, but no Chinese supplier can provide it. But ChieFENCE did it. I like it very much. ChieFENCE can do everything.

-Mark

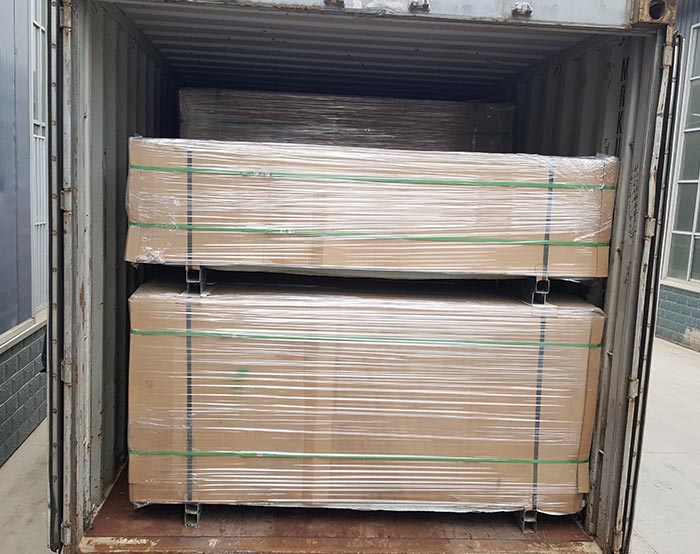

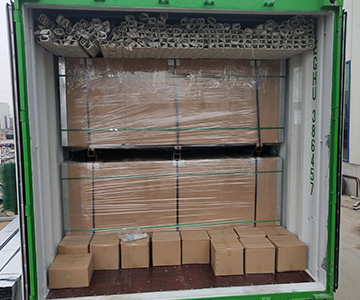

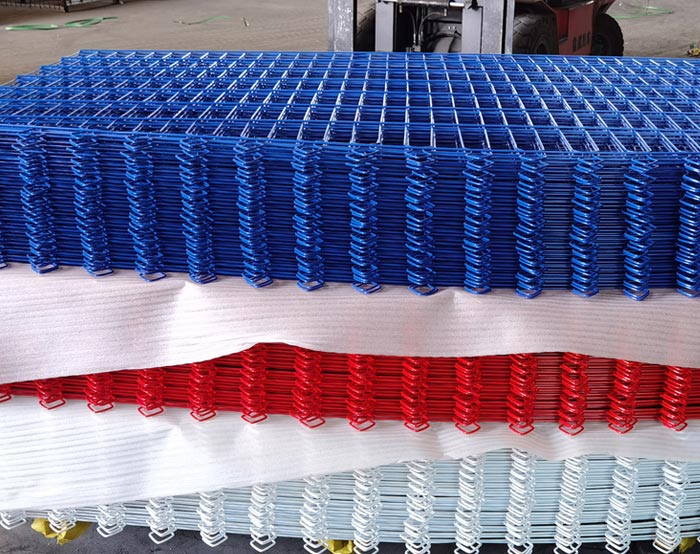

PACKING AND LOADING

If need more photos, pls visit the news page
