Euro Fence
  • Why Euro Fence
  • How to select Euro Fence
  • How to install Euro Fence
  • Video show
  • Past projects

More information in above 5 labels

INTRODUCTION

Euro fence panel, also called Holland fence or welded rolls,  is an attractive alternative to chain link fencing. The classic yet sleek style is both elegant and practical for use as a stand-alone fence. The grid pattern is also ideal for use with climbing plants to create a living fence. Combine individual fence panels with posts and gates (sold separately) to match your design needs. Because its price is competitive, also normally used for Highway or boundary project with big quantity.

FEATURES

Lower budget

See-through panel

Use with climbing plants

Fast Installation

Customer specs available

COLORS AVAILABLE

Euro fence Popular colors

Euro Fence popular colors

Euro fence available colors

Euro Fence available colors

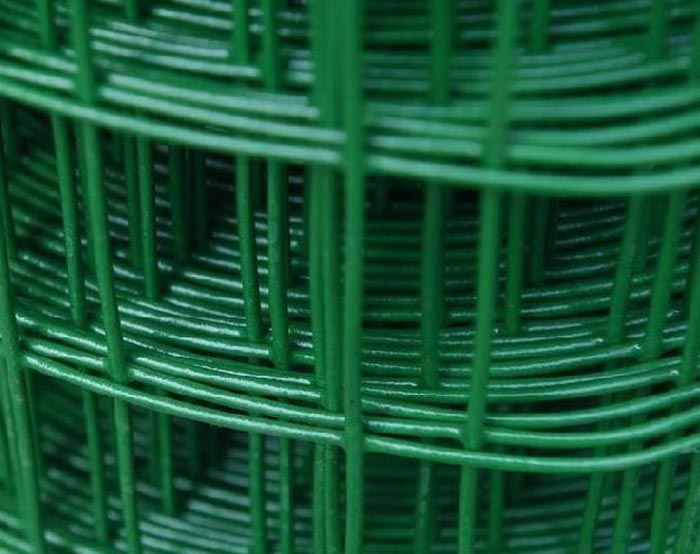

GALLERY

CONTACT US NOW

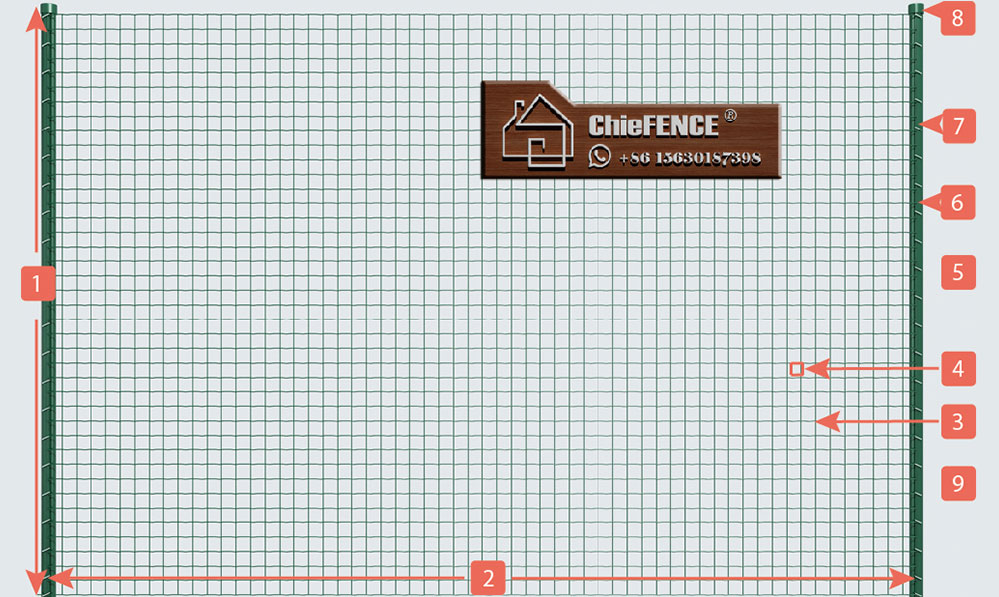

1
HEIGHT:

1000mm / 1200mm / 1500mm / 1800mm / 2000mm / 2200mm

2
Post distance: 3000mm

Roll Length: 20m / 25m / 30m

3
WIRE THICKNESS:

2.2mm / 2.5mm / 3.0mm

4
MESH SIZE:

50*50mm / 50*75mm / 50*100mm

5
Type

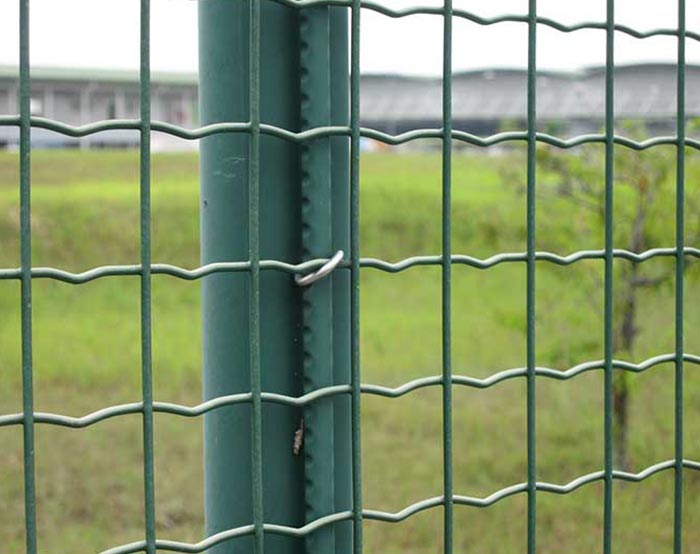

Type A: Wave horizontal wire

Type B: straight horizontal wire

A

A

B

B

6
POST:

7

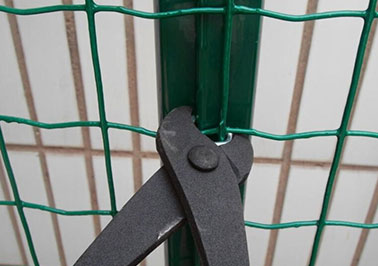

Connection: Hog ring

8
POST CAP: metal cap / anti-UV plastic cap

9
SURFACE TREATMENT(ANTI-RUST TREATMENT):

Electric Galvanized(8-12g/m²) + PVC Coated

Hot Dipped galvanized(40-60g/m²) + PVC Coated

What we need to prepare

Goods:
1 Roll
1 post with rain hat
Clips

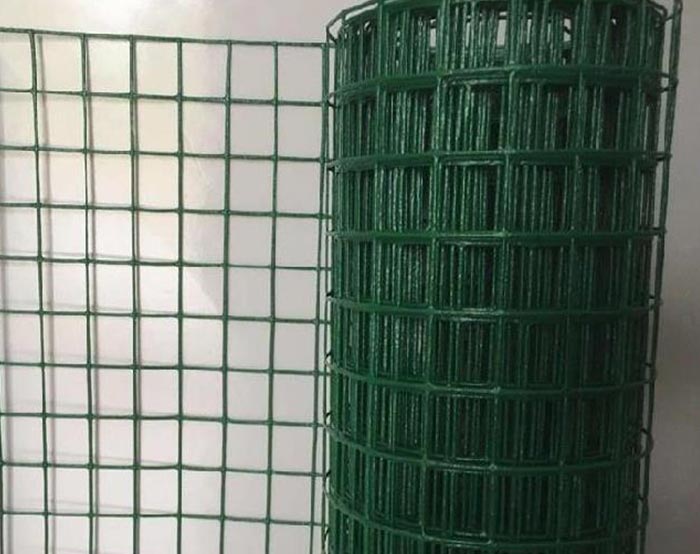

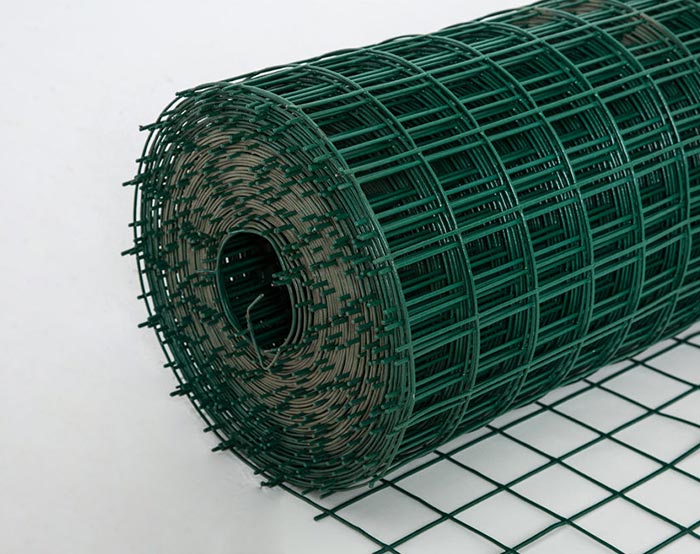

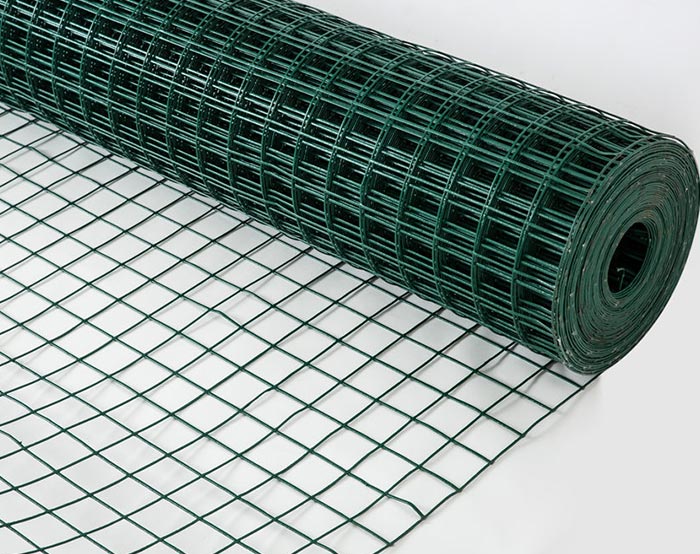

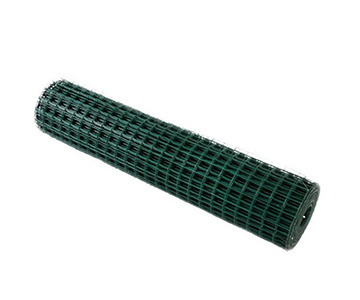

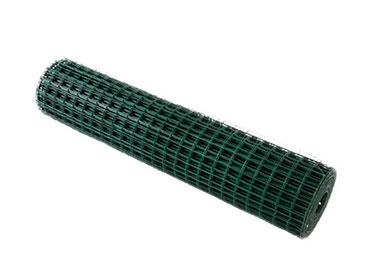

Euro Fence rolls

1 Roll

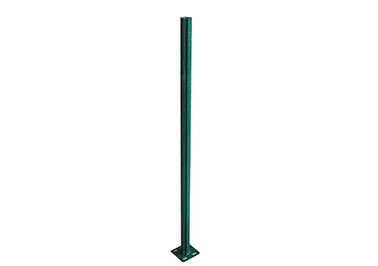

Euro Fence post

1 post with rain hat

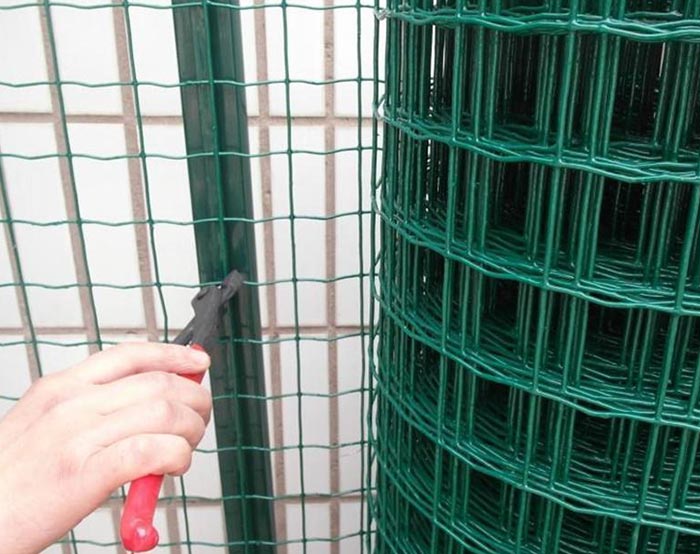

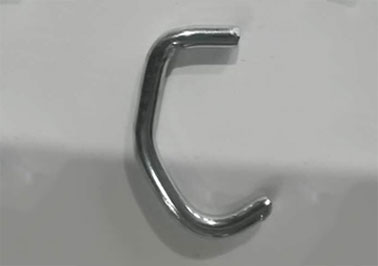

Euro Fence clips

Clips

Euro Fence

Clips

Installation Method

Measure and mark the post location as per the panel width
Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 01:

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

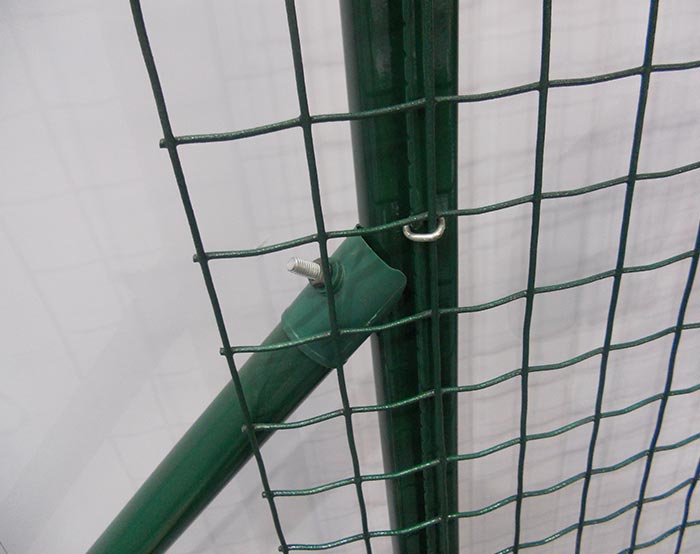

Install the post with support post.
Each post must be set perfectly plum in the concrete

Step 02:

Install the post with support post. Each post must be set perfectly plum in the concrete

Install line post and end post

Step 03:

Install line post and end post

Install the roll euro fence

Step 04:

Install the roll euro fence

Production Flow Chart

Production Flow Chart STEP 01

Production Flow Chart

PACKAGE

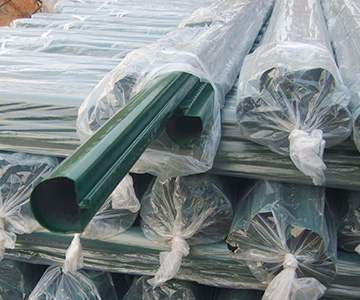

Swallow post Packing

Swallow post Packing

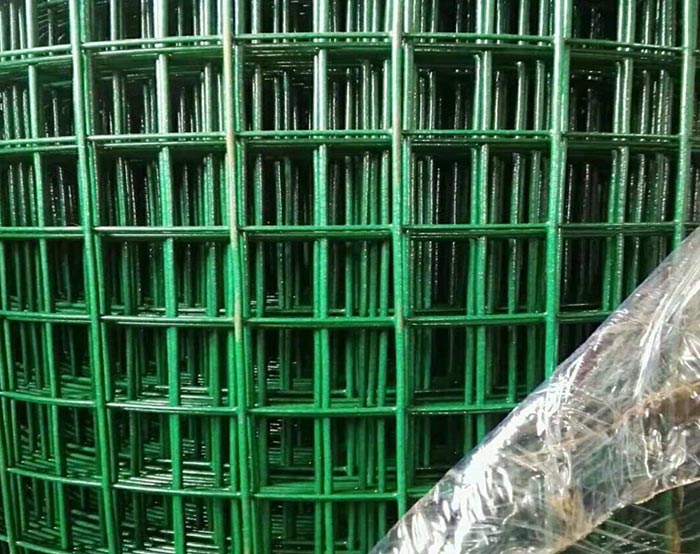

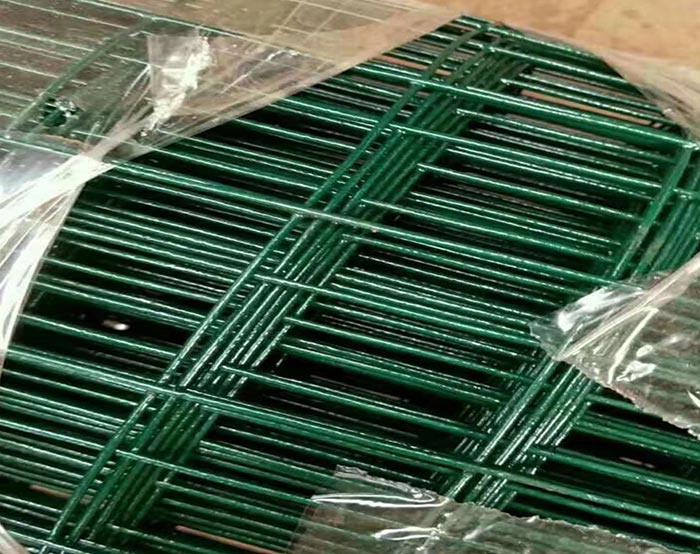

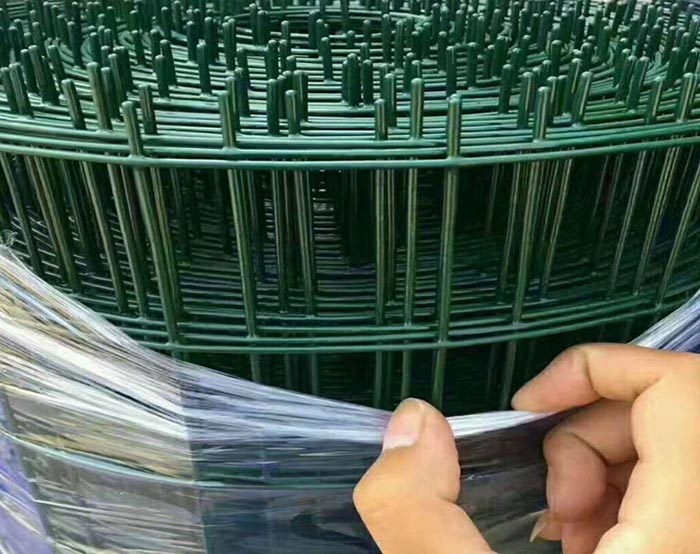

Euro fence rolls packing

Euro fence rolls packing

Euro fence rolls

Euro fence rolls

REFORENCE

As the hot sales fence, we sold 9000m euro fence per month to fill full container.

2011,50000m Euro fence project for Russia.

2013,75000m Euro fence project for Russia.

2014,20000m Euro fence project for Roland.

2018,40000m Euro fence for America.

CUSTOMER SAY

I ’m Mazen from kuwait. In 2013, we made KISR ’s fence with razor wire. I found a lot of suppliers in China. I got all the quotations for common barbed wire. It was ChieFENCE who pointed out that the document requires Concertina barbed wire. This avoids our mistakes. Thank you.

-Mazen

I 'm from Estonia and I import steel wire, tubes, fence etc. from ChieFENCE. Whenever I order a few containers, there will always be some small space left in containers. So I buy some Euro fence to fill the container every time. Infact, I did not spend the ocean freight on the Euro fence, so the price is much lower than the local price.

-Price Much Lower

My name is Billy. who import EURO FENCE from ChieFENCE. Their euro fence price is a bit higher than other suppliers, but I have to say that the quality is very good. The first important thing is weight. ChieFENCE'S EURO fence is heavier than other suppliers. Because they used thicker galvanized wire. Second, ChieFENCE's euro fence is special pvc coating. The PVC raw materials are better. You can't see the difference from the surface of the euro fence

-Billy

Hello everyone, I have imported euro fence from ChieFENCE for 3 years. Euro fence is a mature product in our country. I chose ChieFENCE because of their stable quality. This way I can devote all my time to developing the market. I like this state.

-Stable Quality

I am a project manager. In 2013, I had a very large railway fence project. This project requires 2.0 * 2.5m welded panels, but the wire diameter is 2.0mm. In China, I have found many suppliers. Some say that the production cannot be done because the wire is too thin, and some say that the specifications need to be changed. Only ChieFENCE helped me solve all the problems. They produced products according to EURO fence, and then made a flat panel with special machines. On the one hand, the price was reduced, and on the one hand, it fully met the requirements of the project. ChieFENCE Team is professional and trustworthy.

-ChieFENCE Team is Professional and Trustworthy

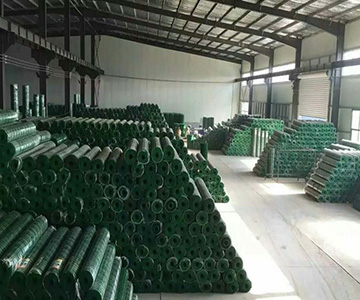

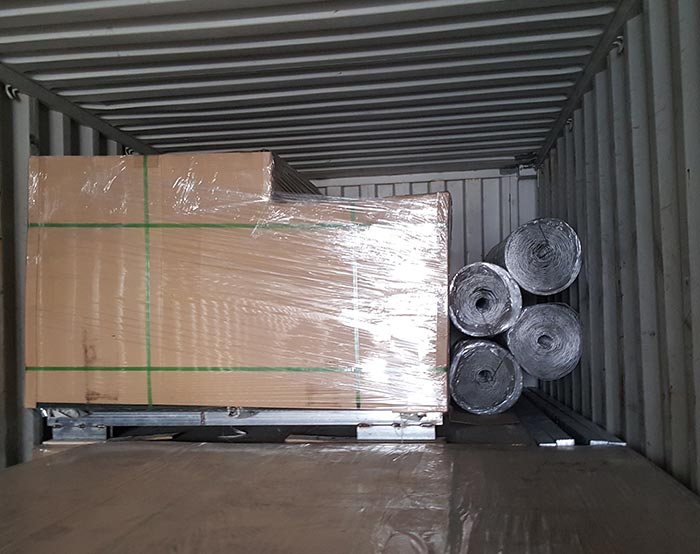

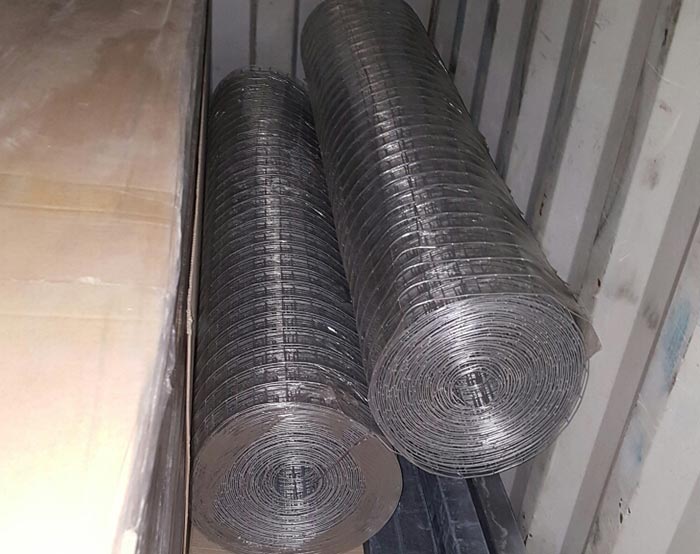

PACKING AND LOADING

If need more photos, pls visit the news page
