INTRODUCTION

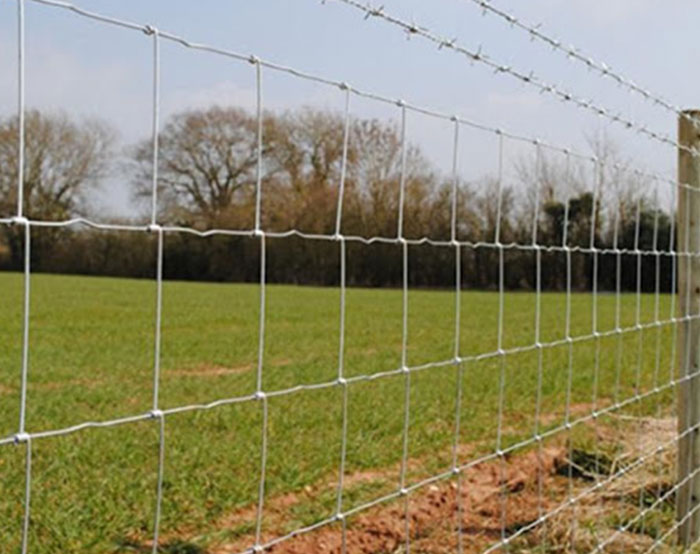

Field Fence, also called farm fence or grassland fence, is kind of fence fabric automatically woven by high-tensile galvanized wire. Vertical (Stay) wires are woven or wrapped around the horizontal (Line) wires to form rectangular openings in different size.

Field Fence is widely used in protection of enclosure of farm, grassland, pasture,forest, animal feeding, embankment, rouds, reservoirs and other aspects. It is the first choice for pasturing area construction and grassland environment improvement.

Farm fence has different specifications due to various designs, tensile strength grades and metallic types.


FEATURES

Lower budget

Anti-rust, Long Service Life

Galfan wire available

Fast installation

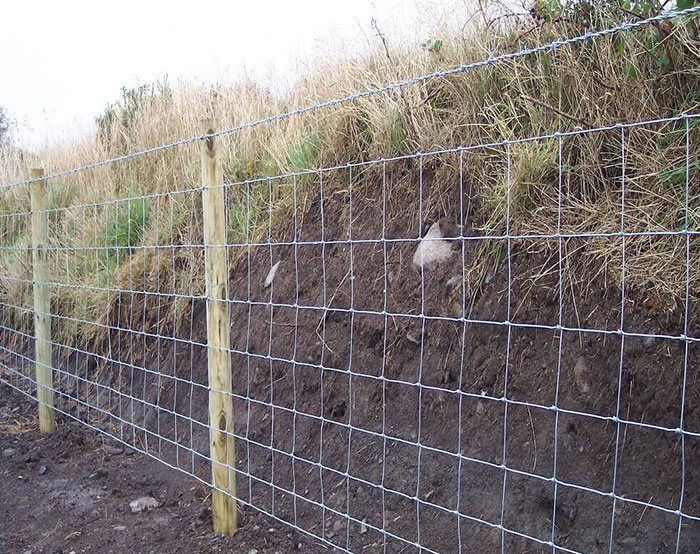

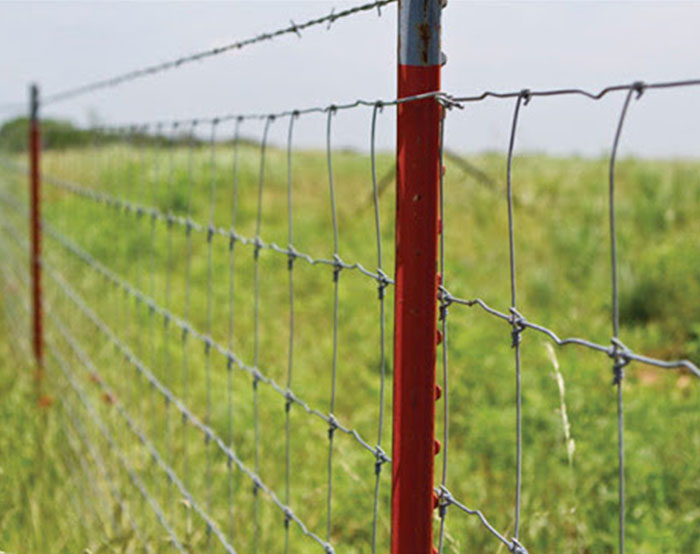

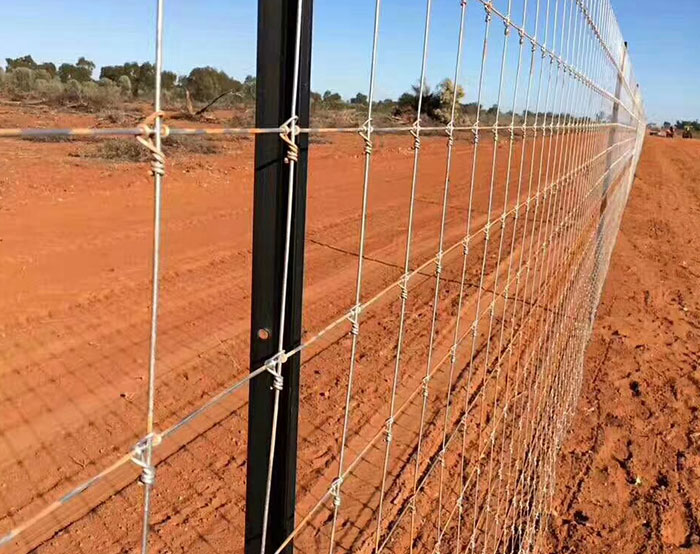

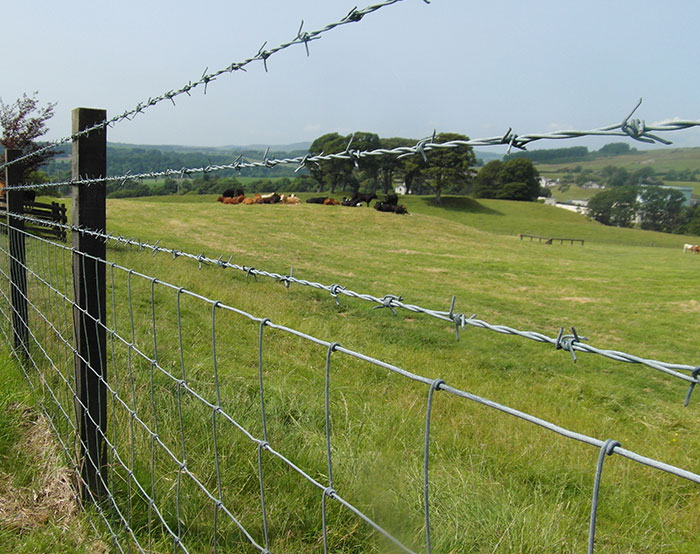

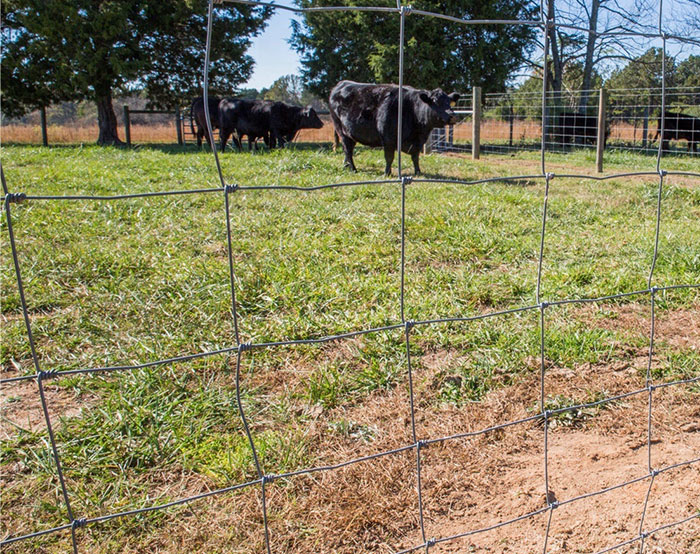

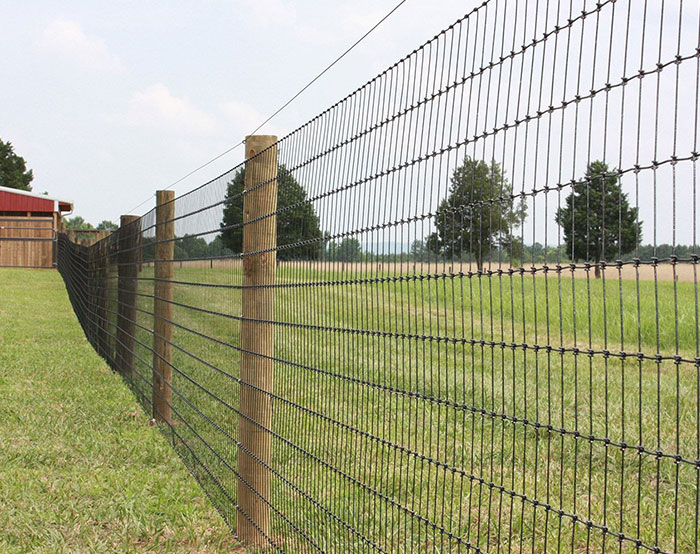

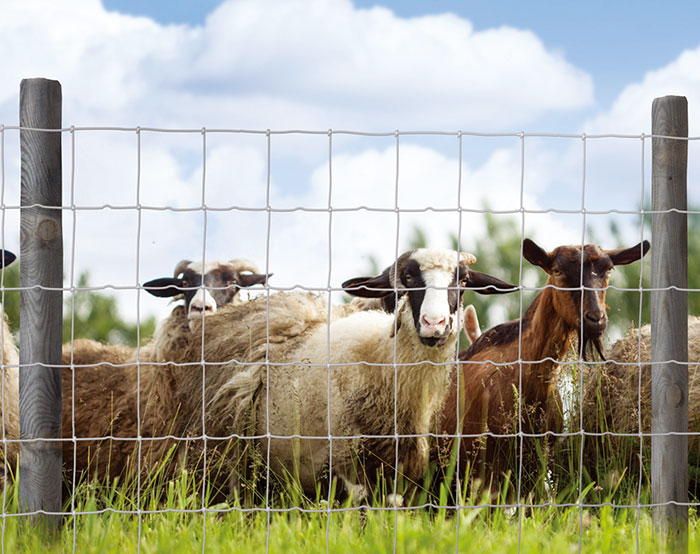

GALLERY

CONTACT US NOW

1
Material:

High quality high carbon steel wire, low carbon steel wire.

2
HEIGHT

Height range: from 0.6 m to 2.45 m. Common is 1.2 m, 1.5 m and 1.8 m

3
Knot type

hinge joint type

4
Line wire diameter:

1.6/2.0/2.5/3.0 mm

5
Top and bottom wire diameter

2.0/2.5/3.0/3.7 mm

6
Main Market

Main market: Malaysia, Australia, Peru, North America, and Africa

7

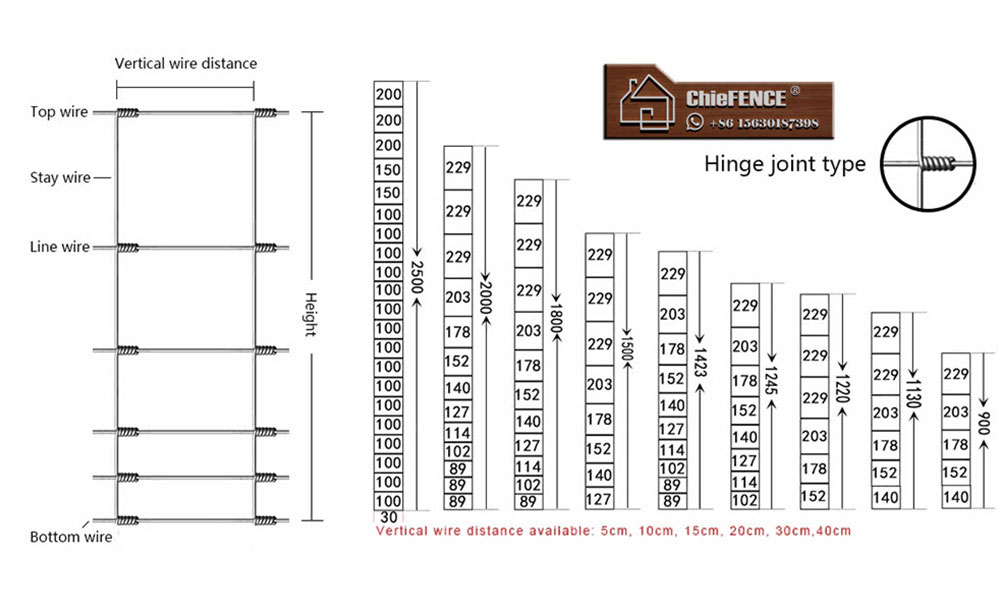

Specifications of Hinge joint knot Field Fence
Mesh SizeG.W. (kg)Wire Diameter (mm)
7/150/813/50102 + 114 + 127 + 140 + 152 + 17819.32.0/2.5 mm
8/150/813/5089 (75) + 89 + 102 + 114 + 127 + 140 + 15220.82.0/2.5 mm
8/150/902/5089 + 102 + 114 + 127 + 140 + 152 + 17821.62.0/2.5 mm
8/150/1016/50102 + 114 + 127 + 140 + 152 + 178 + 20322.62.0/2.5 mm
8/150/1143/50114 + 127 + 140 + 152 + 178 + 203 + 22923.62.0/2.5 mm
9/150/991/5089 (75) + 89 + 102 + 114 + 127 + 140 + 152 + 17823.92.0/2.5 mm
9/150/1245/50102 + 114 + 127 + 140 + 152 + 178 + 203 + 229262.0/2.5 mm
10/150/1194/5089 (75) + 89 + 102 + 114 + 127 + 140 + 152 + 178 + 20327.32.0/2.5 mm
10/150/1334/5089 + 102 + 114 + 127 + 140 + 152 + 178 + 203 + 22928.42.0/2.5 mm
11/150/1422/5089 (75) + 89 + 102 + 114 + 127 + 140 + 152 + 178 + 203 + 22930.82.0/2.5 mm
