INTRODUCTION

palisade panels is an ancient fence. It originated in Britain. It have very strict BS standards. Palisade is made of 2.0-3.0mm iron plate and pressed into the shape of “W” SECTION or “D” SECTION to increase the strength. In the 21st century, Palisade is popular in Qatar, Bahrain, Kuwait, South Africa, Cameroon, Mauritius, Angola etc. palisade panels are fence that is quick to install, beautiful and has a long service life. But it is not as safe as high security fence (358fence 3510 fence).

FEATURES

HIGH budget

See-through panel

Anti-rust,Long Service Life

Fast Installation

Customer specs available

Rigidity

COLORS AVAILABLE

Palisade fence popular colors

Palisade fence popular colors

Palisade fence available colors

Palisade fence available colors

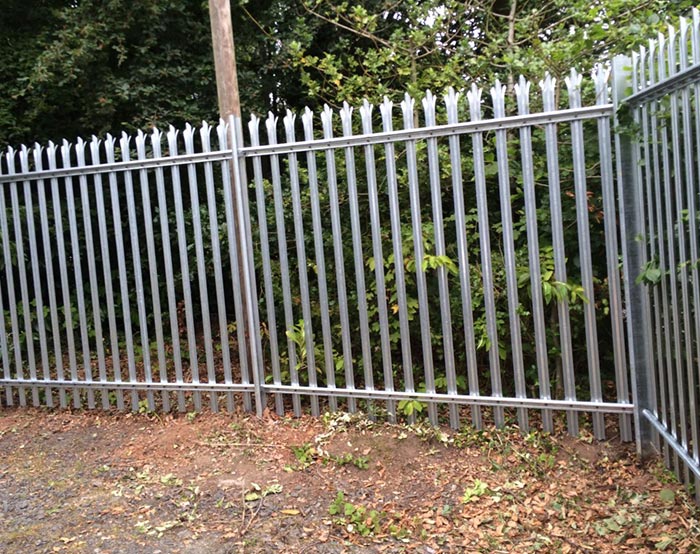

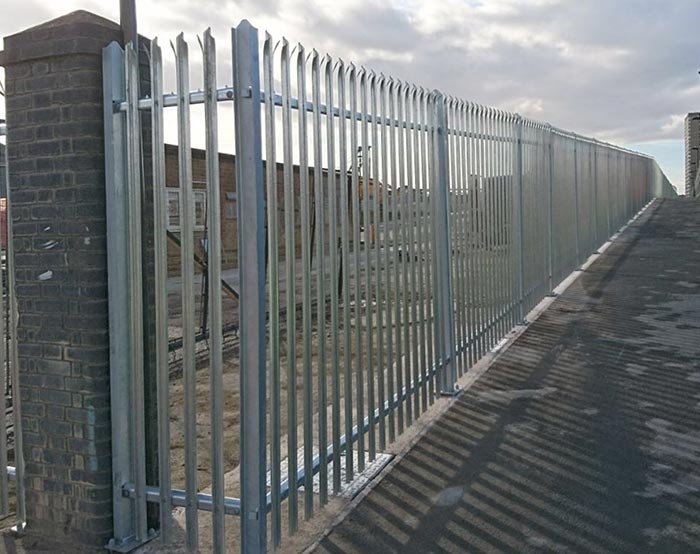

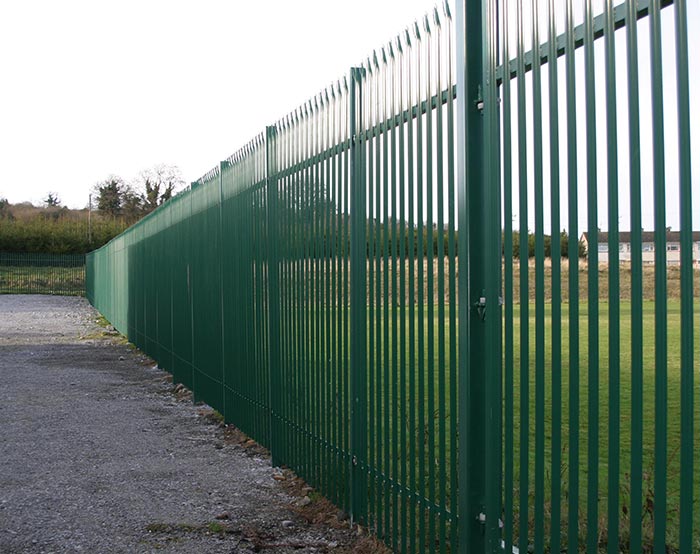

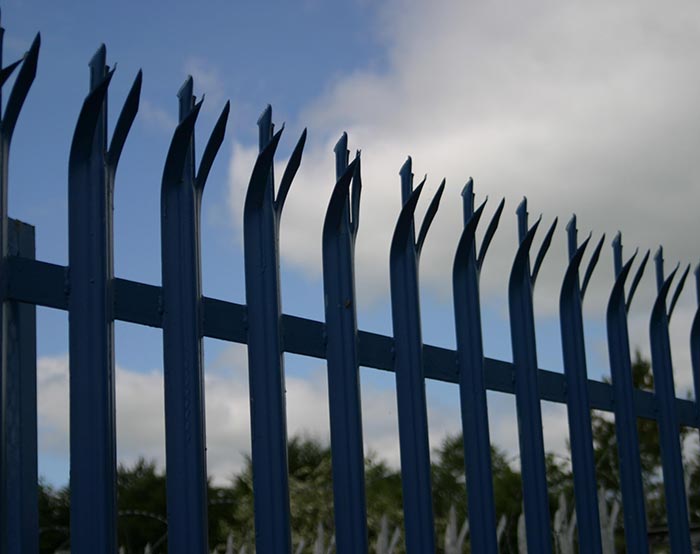

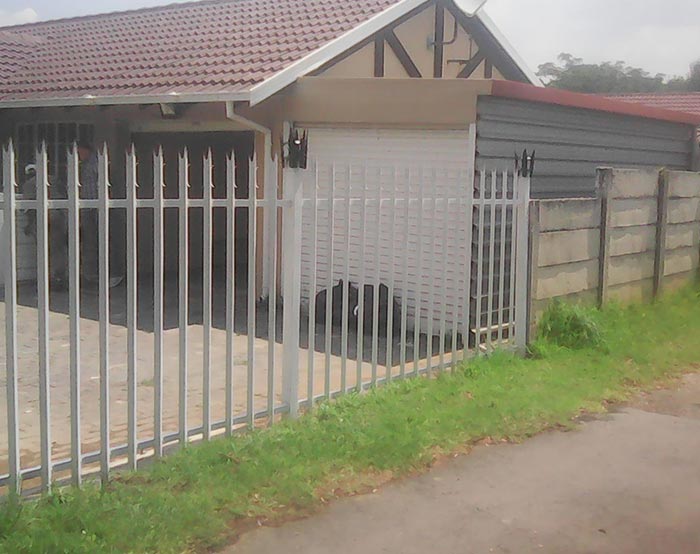

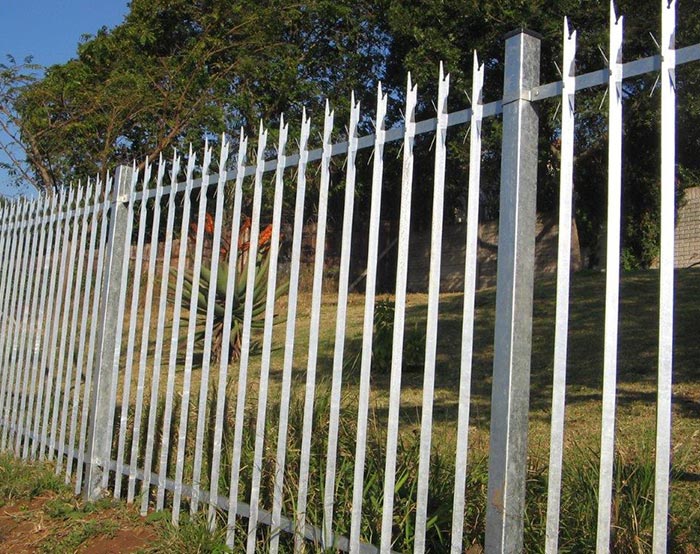

GALLERY

CONTACT US NOW

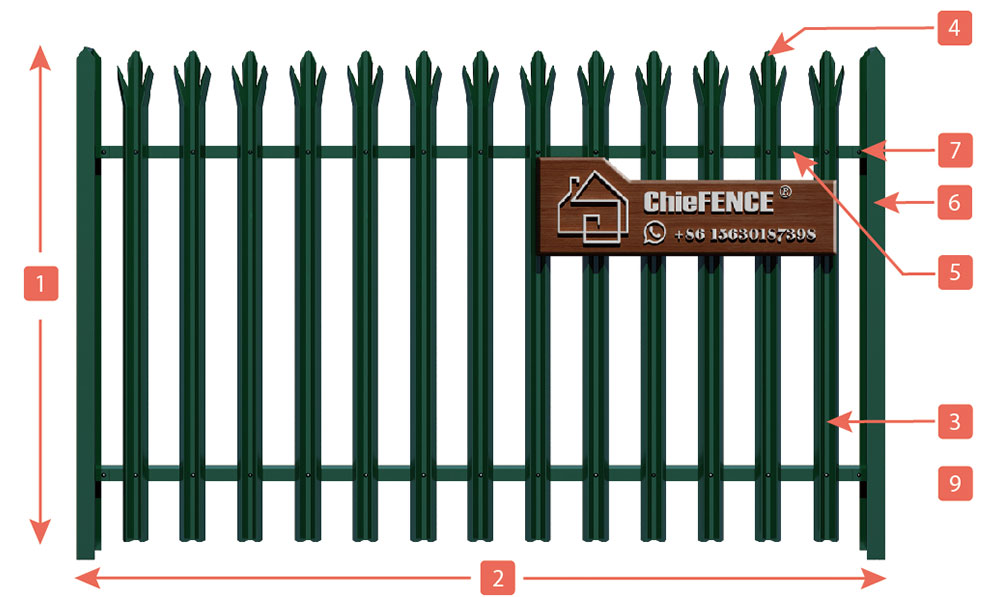

1
HEIGHT:

1800mm / 2100mm / 2400mm / 3000mm

2
WIDTH:

2750mm

3

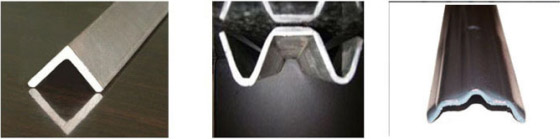

PALE(17PCS)

A: "D" Section=60mm / 65mm

B: "W" Section=62mm / 70mm

C: Angle steel:40*40mm


Pale Thickness:1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm

PALE(17PCS)

PALE(17PCS)

4

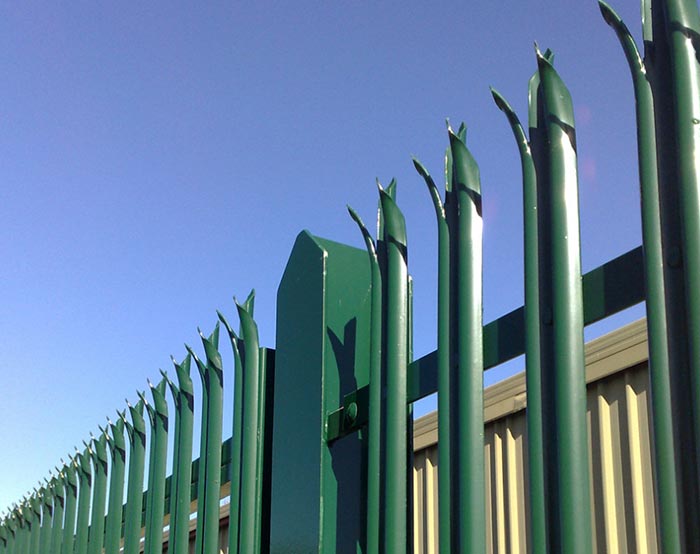

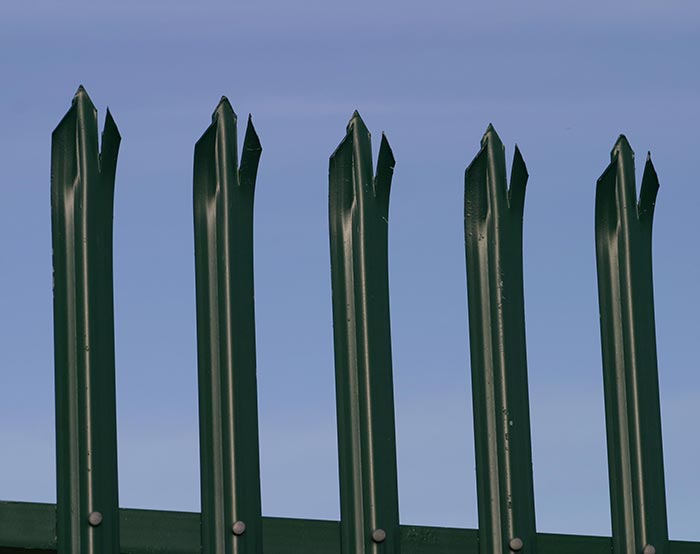

PALE TOP

square top, triple pointed top, single pointed top, round top, round & notch top, etc.


a. square top;

b. triple pointed top;

c. single pointed top;

d. round top;

e. round & notch top

f. triple pointed top;

g. single pointed top;

h. round top;

i. round & notch top

j. single pointed top;

k. double pointed top;

l. triple pointed top;

m. triple pointed & splayed top;

n. triple pointed & spikes top

Palisade Fencing d Profile Type

Palisade Fencing d Profile Type

Palisade Fencing w Profile Type

Palisade Fencing w Profile Type

Palisade Fencing Angle Steel Pale

Palisade Fencing Angle Steel Pale

5
Angle Rails:

40*40*4*2710mm

50*50*5*2710mm

6
POST:

A: IPE POST:100*55mm

B: Square post(60 mm × 60 mm, 80 mm × 80 mm, 100 × 100 mm)

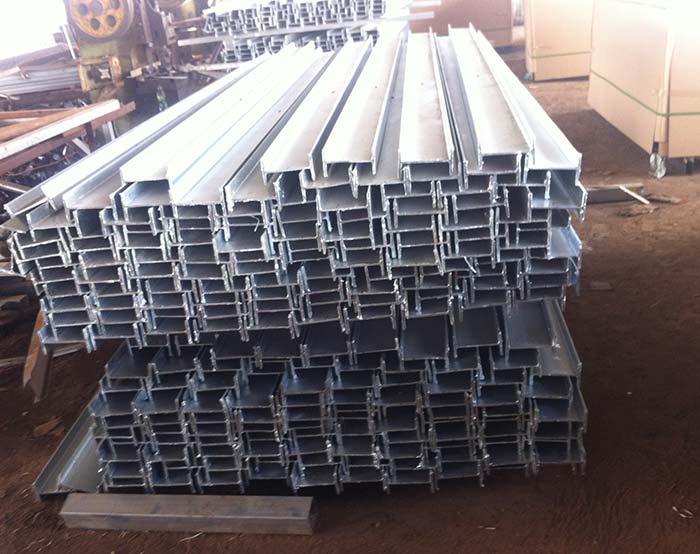

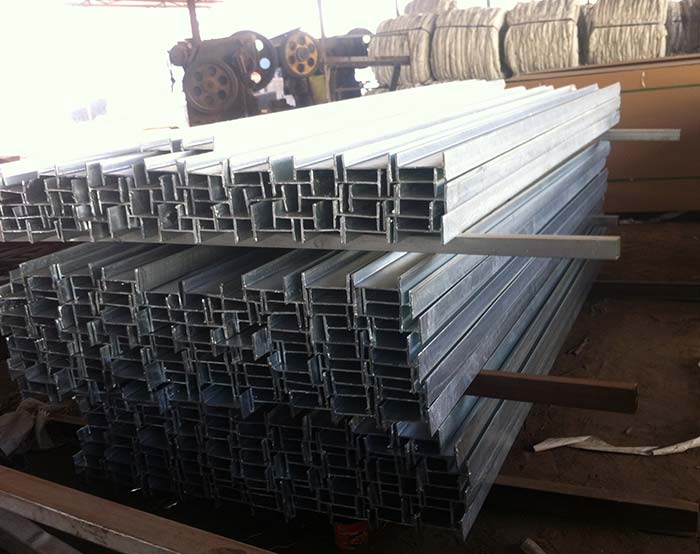

A: IPE POST

A: IPE POST

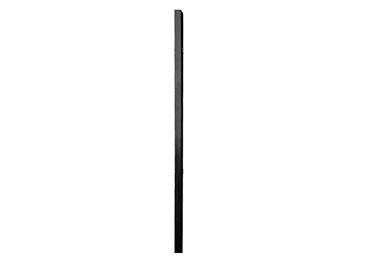

B: Square post

B: Square post

7
Connection

fish plate (40 mm × 8 mm × 150 mm)

Palisade Fencing I Post Connection

Palisade Fencing I Post Connection

Palisade Fencing I Post Connection Drawing

Palisade Fencing I Post Connection Drawing

Palisade Fencing Square Post Connection

Palisade Fencing Square Post Connection

Palisade Fencing Square Post Connection Drawing

Palisade Fencing Square Post Connection Drawing

8
Surface Treatment(Anti-Rust Treatment):

A: Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

B: Hot Dipped Galvanized after welding (505g/m²)


Powder Coating

Powder Coating

Galvanized

Galvanized

9
OPTIONAL ACCESSORIES

A: V ARM

B: SINGLE ARM

C: BARBED WIRE

D: CONCERTINA RAZOR WIRE

E: FLAT WRAP RAZOR WIRE

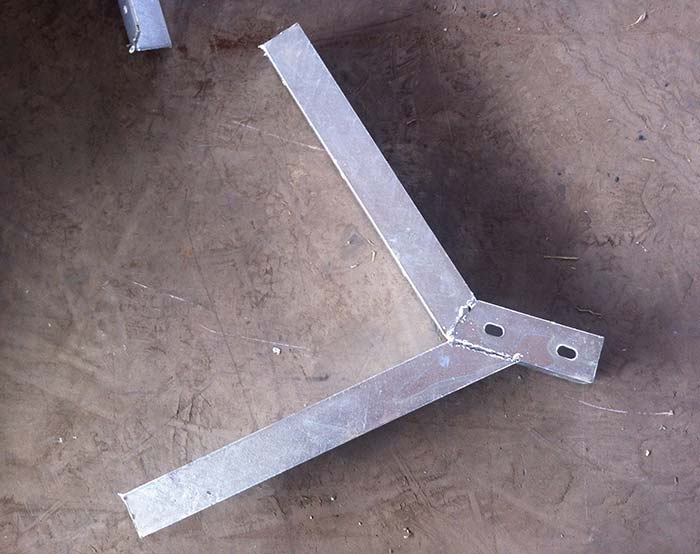

​A: V ARM

​A: V ARM

B: SINGLE ARM

B: SINGLE ARM

C: BARBED WIRE

C: BARBED WIRE

D: CONCERTINA RAZOR WIRE

D: CONCERTINA RAZOR WIRE

E: FLAT WRAP RAZOR WIRE

E: FLAT WRAP RAZOR WIRE

What we need to prepare

Goods:
Vertical pales
Rails
Post
Fisher plate

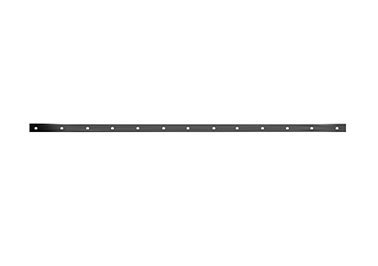

Palisade angle rail

Angle rail

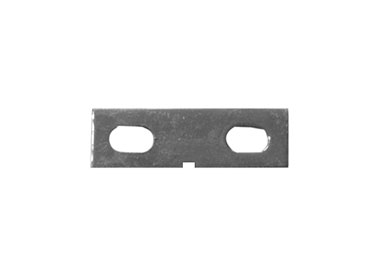

Palisade fisher plate

Fisher plate

Palisade IPE post

IPE Post

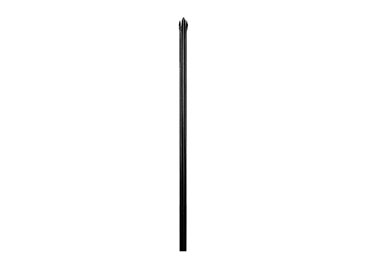

Palisade Pale

Pale

Installation Method

Measure and mark the post location as per the panel width
Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 01:

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Install the post with concrete.
Each post must be set perfectly plum in the concrete

Step 02:

Install the post with concrete. Each post must be set perfectly plum in the concrete

Install the second post with concrete.
Each post must be set perfectly plum in the concrete

Step 03:

Install the second post with concrete. Each post must be set perfectly plum in the concrete

Install the fisher plate

Step 04:

Install the fisher plate

Install the Horizontal angle rails

Step 05:

Install the Horizontal angle rails

Install the Vertical pales

Step 06.:

Install the Vertical pales

Finished

Step 07:

Finished

Production Flow Chart

Palisade Fencing Steel Coil STEP 01

Palisade Fencing Steel Coil

Palisade Fencing Pale Profile Forming STEP 02

Palisade Fencing Pale Profile Forming

Palisade Fencing Pale Cutting STEP 03

Palisade Fencing Pale Cutting

Palisade Fencing Pale Head Manufacturing STEP 04

Palisade Fencing Pale Head Manufacturing

Palisade Fencing Pale Punching STEP 05

Palisade Fencing Pale Punching

Palisade Fencing Pale STEP 06

Palisade Fencing Pale

PACKAGE

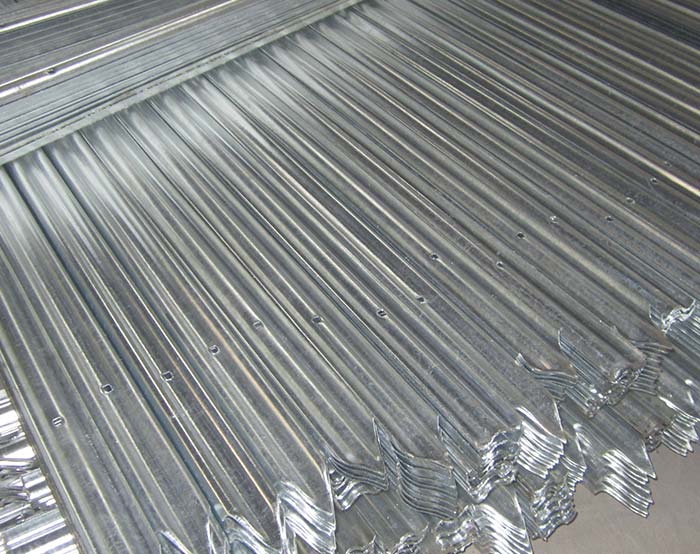

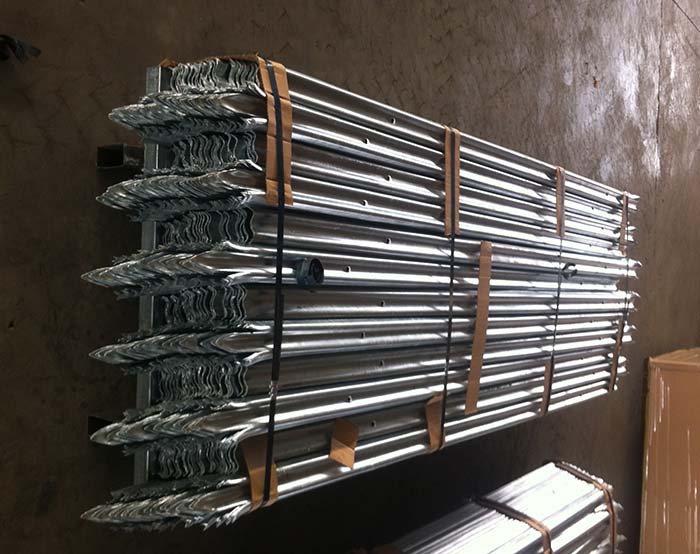

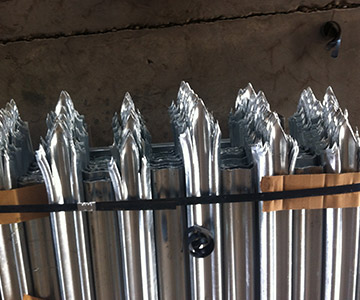

W section pale packing

W section pale packing

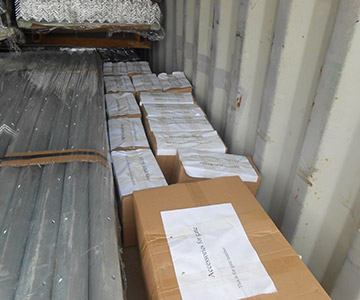

FIsher & bolt Fitting packing

FIsher & bolt Fitting packing

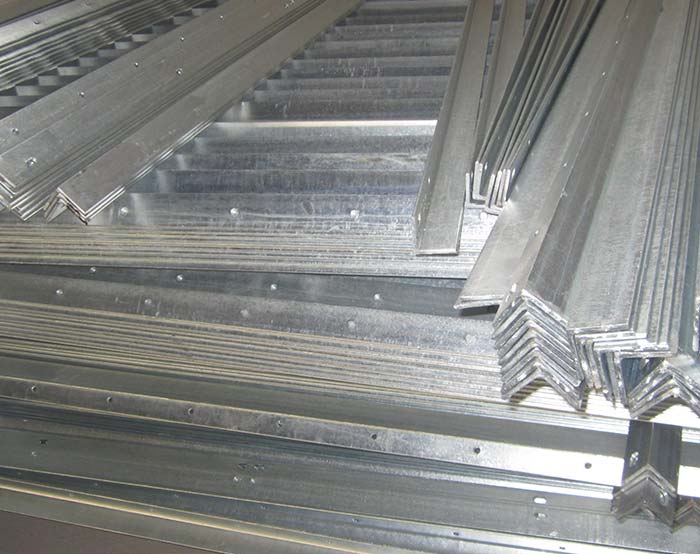

Angle rails packing

Angle rails packing

REFORENCE

2011,1200m Palisade project for Qatar..

2012,1500m EPIC OF SECURITY FENCE AT RASLAFFANCITY,PALISADE FENCE  & FOUNDATION DETAILS.

2012,1700M PALISADE FENCE FOR QUATAR TRASMISSION SYSTEM EXPANSION PHASE-9.

2014,2710m Palisade fence for HARAMAIN HIGH SPEED RAIL.

2015,1597m Palisade project for South Africa.

2017,3000m Palisade for Cameroon.

2018,1700m Palisade for South Africa.

2019,3000m Palisade for Cameroon.

CUSTOMER SAY

My name is George and I work in Qatar. I am a project manager. Palisade fence is very popular in Qatar. We can sell 10 containers a year. Thank you ChieFENCE for providing us with high quality Palisade. I am very satisfied with our cooperation.

-George

I imported hot-dip galvanized palisade from China, and there is a problem that has been bothering me. Sometimes I receive the goods and the hot galvanized palisade has white rust. I think it's bad quality rust, but the previous supplier said it's not rust. Since meeting ChieFENCE, they have solved all my problems. Never met such a problem again. I really like working with them.

-Matthew

I 'm Dannil from Germany, and we started building an Automobile Sales Service shop in 2012. At the time, I found two suppliers in China. ChieFENCE is expensive. The other one is very cheap. Frankly speaking, I really want to choose a cheap supplier. But ChieFENCE showed me BS-1722-12, the standard beam should be 5mm thick, but the cheap supplier only provided me with 1.5mm thick. The fact proved that ChieFENCE is professional. For some reasons, my shop was completed until 2018, and CHIEFENCE's Palisade has been in my warehouse for 6 years. But it looks like new. The quality is very good. I am willing to recommend them.

-Dannil

I have many Palisade and Clearvu (High security fence) projects in South Africa, Zimbabwe, Mauritius. Since 2015, I imported Palisade & clearvu (High security fence) from China. Because the specifications and quantities required by the project are different. I need a very professional supplier team that can deal with complex problems. ChieFENCE is doing very well. More importantly, South Africa time is 5 hours later than China time. ChieFENCE TEAM always works overtime to help me solve urgent problems. I'm very grateful.

-Grateful

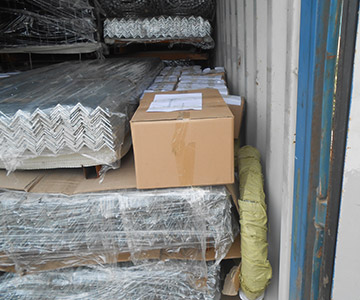

PACKING AND LOADING
