INTRODUCTION

Temporary fencing also known as mobile fence, swimming pool fence, construction fence. The panels are held together with Clamps that interlock panels together making it portable and flexible for a wide range of applications. Temporary fencing is required on an interim basis when needed for storage, public safety or security, crowd control, or theft deterrence. It is also known as construction hoarding when used at construction sites. Other uses for temporary fencing include venue division at large events and public restriction on industrial construction sites, when guardrails are often used[1]. Temporary fencing is also often seen at special outdoor events, parking lots, and emergency/disaster relief sites. It offers the benefits of affordability and flexibility.

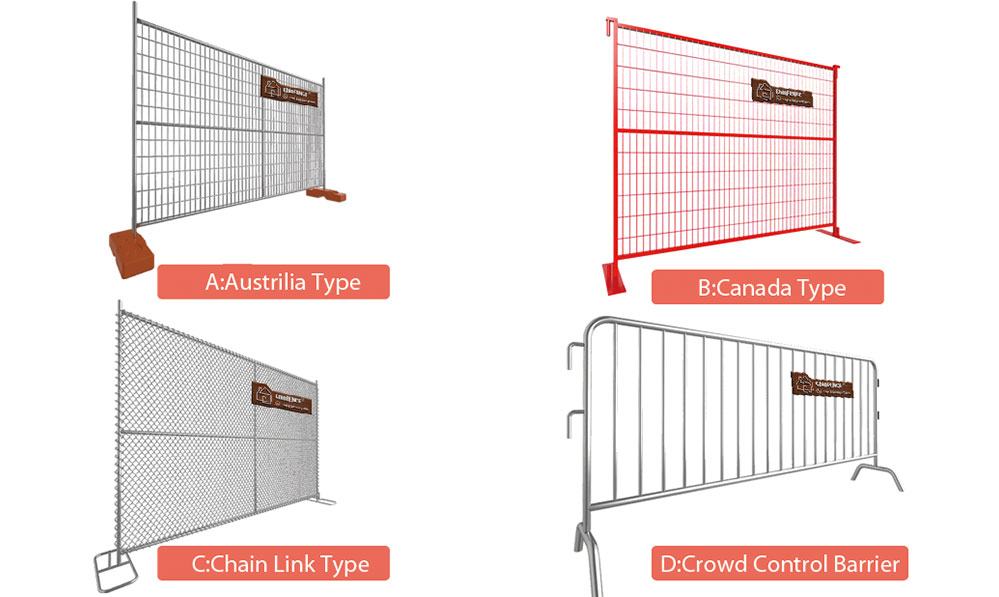

ChieFENCE temporary fence have 4 types

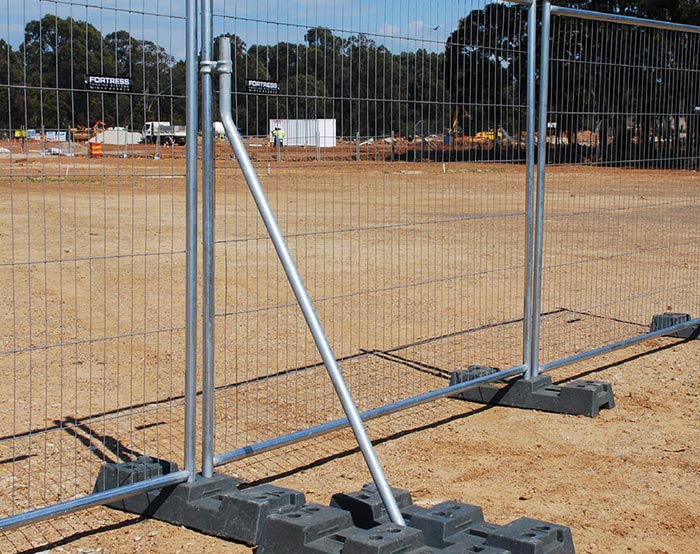

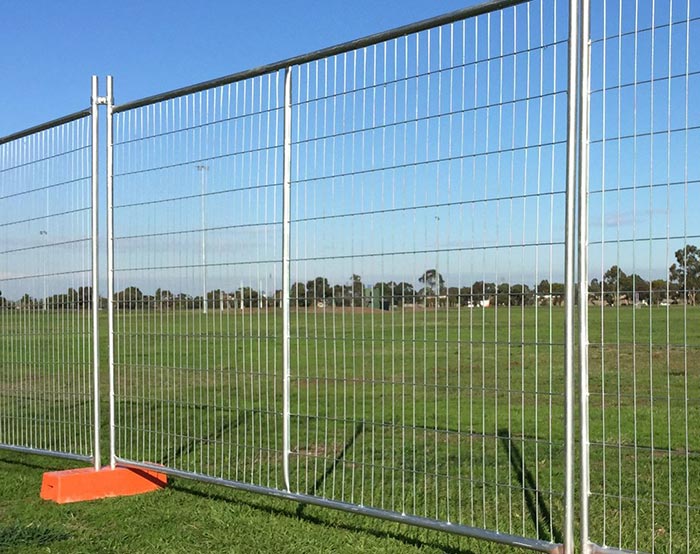

Type-1 is the common type of temporary fence. Fence panels are supported with plastic box feet. Fence panels are commonly constructed of welded mesh with round pipe frame. It is hot sale in Austrilia.

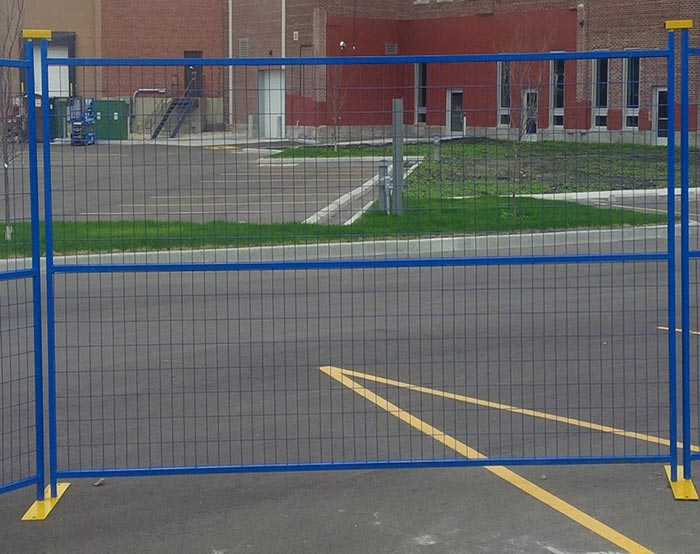

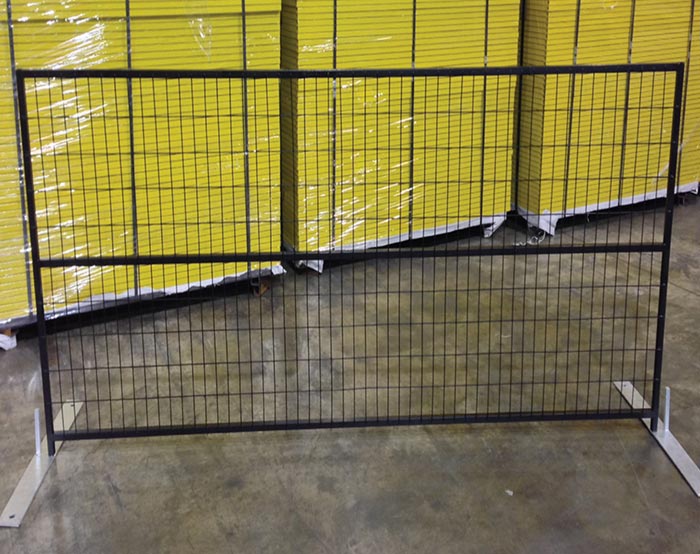

Type-2 , this temporary fence is special for Canada market. It is constructed of welded mesh with Square frame.

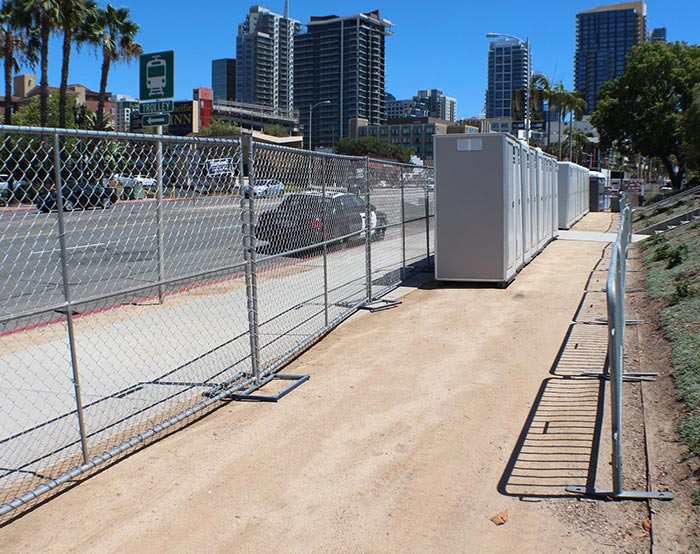

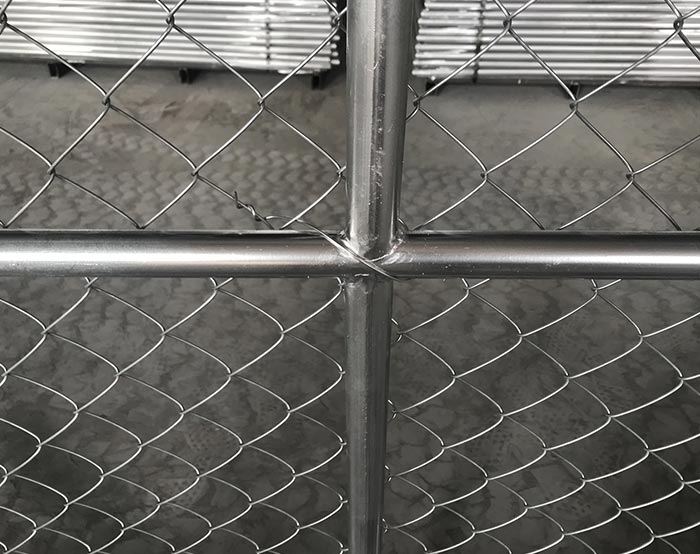

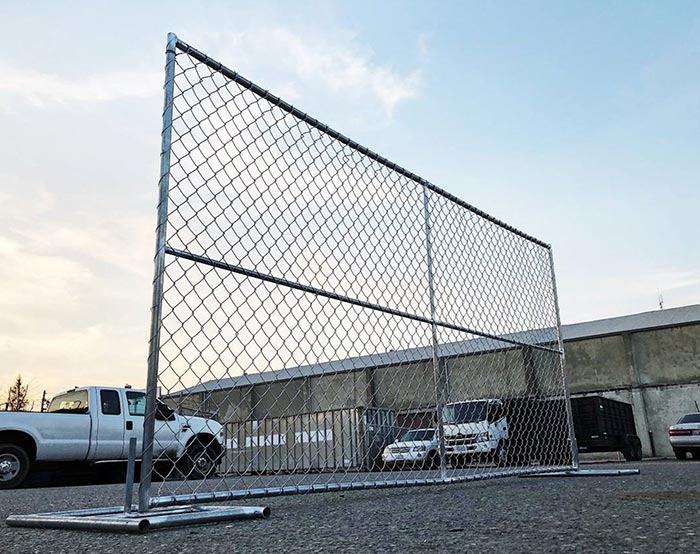

Type-3 , It is a popular product in Australia America etc. It is constructed of chain link with round pipe frame.Chain link temporary fence is widely used for construction sites

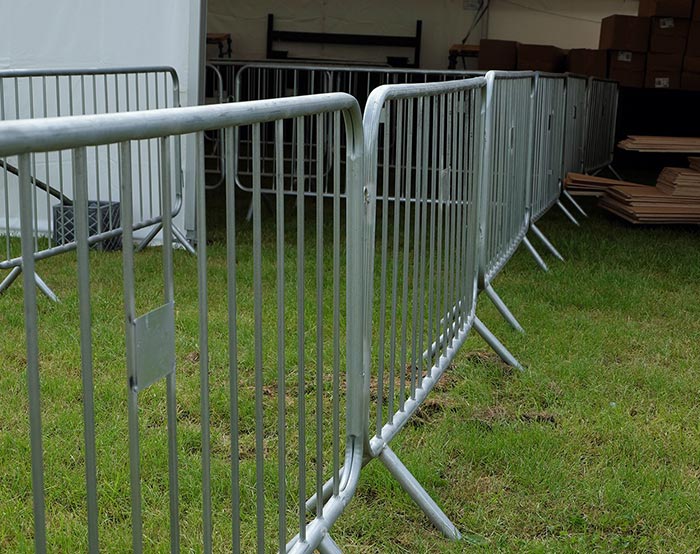

Type-4 is welded with round pipe. 0.9-1.2m high.

It is widely used for Crowd Control Barrier,venue division at large events, public restriction, parking lots

FEATURES

Lower budget.

See-through panel.

Anti-rust,Long Service Life.

Fast Installation.

Customer specs available.

Ease of moving.

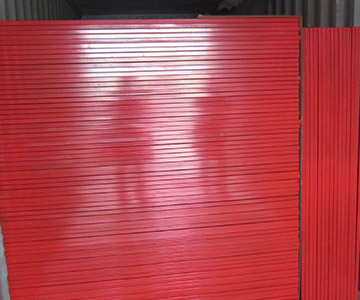

COLORS AVAILABLE

Temporary fence popular colors

Temporary fence popular colors

Temporary fence available colors

Temporary fence Avaialble colors

GALLERY

CONTACT US NOW

1
HEIGHT

A:1800 mm, 2100 mm, 2400 mm, etc.

B:1800 mm, 2000 mm, 2400 mm, etc.

C:1800 mm, 2100 mm, 2400 mm, etc.

D:1100 mm, 1250 mm, 1500 mm, etc.

2
WIDTH

A:2100 mm, 2400 mm, 2900 mm, etc.

B:2900 mm, etc.

C:2100 mm, 2400 mm, 2900 mm, etc.

D:2000 mm, 2500 mm, etc.

3
WIRE THICKNESS/INNER PIPE

A:3.0 mm, 3.8 mm, 4.0 mm, etc.

B:3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, 4.5mm etc.

C:2.5 mm, 3.0 mm, 3.8 mm, 4.0 mm, etc.

D:Inner pipe: 12 × 0.7 mm, 14 × 1.0 mm, 16 × 1.0 mm, 20 × 1.2 mm, 25 × 1.2 mm

4
MESH SIZE/SPACING:

A:50 mm × 100 mm, 50 mm × 150 mm, 75 mm × 100 mm, 75 mm × 150 mm

B:50 mm × 100 mm, 50 mm × 150 mm, 50 × 200 mm, 75 mm × 100 mm, 75 mm × 150 mm

C:50 mm × 50 mm, 57 mm × 57 mm, 60 mm × 60 mm, 70 mm × 70 mm

D:60 mm, 100 mm, 120 mm, 150 mm, 200 mm(Spacing)

5
FRAME:

A:Round pipe (outside diameter 32 mm, 38 mm, 40 mm, 42 mm, 48 mm)

B:Outside Frame: 25 × 25 mm, 30 × 30 mm

    Middle Rail: 20 × 20 mm, 25 × 25 mm

C:Round pipe (outside diameter 32 mm, 38 mm, 42 mm)

D:Round pipe (outside diameter 32 mm, 38 mm, 42 mm)


6
FITTINGS FOR TYPE A

7
FITTINGS FOR TYPE B

8
FITTINGS FOR TYPE C

9
FITTINGS FOR TYPE D
10
Surface Treatment(Anti-Rust Treatment):

Hot Dipped galvanized(40-60g/m²)

Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

Hot Dipped Galvanized after welding (505g/m²)


NOTE:

Be manufactured using galvanized steel wire.
Be coated with exclusive Architectural Grade Powder Coat.
This coating is super-durable and environmentally sound. Our powder coating provides the industry’s Highest Weather ability and Gloss Retention in U.V. Exposure.
Up to 3 times longer than competitor's powder coatings


Installation Method

Step 01:

Step 02:

Step 03:

Step 04:

Production Flow Chart

Australia Temporary Fence Steel Wires STEP 01

Australia Temporary Fence Steel Wires

Australia Temporary Fence Mesh Welding STEP 02

Australia Temporary Fence Mesh Welding

Australia Temporary Fence Panel Storage STEP 03

Australia Temporary Fence Panel Storage

Australia Temporary Fence Pipe Cutting STEP 04

Australia Temporary Fence Pipe Cutting

Australia Temporary Fence Steel Pipes STEP 05

Australia Temporary Fence Steel Pipes

Australia Temporary Fence Steel Wires Cutting STEP 06

Australia Temporary Fence Steel Wires Cutting

Australia Temporary Fence Panel Spraying STEP 07

Australia Temporary Fence Panel Spraying

Australia Temporary Fence Panel Welding STEP 08

Australia Temporary Fence Panel Welding

Australia Temporary Fence Panel Polishing STEP 09

Australia Temporary Fence Panel Polishing

Australia Temporary Fence Panels STEP 010

Australia Temporary Fence Panels

PACKAGE

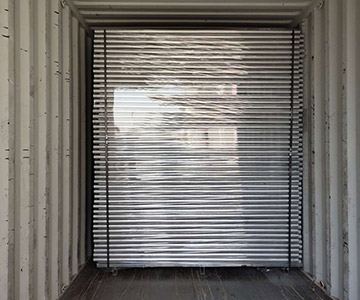

Australia temporary fence loading

Australia temporary fence loading

Canada temporary fence loading

Canada temporary fence loading

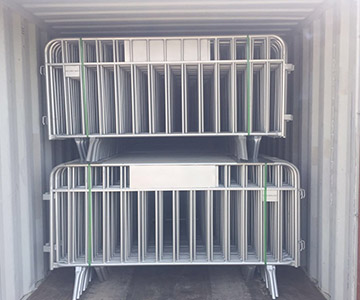

Crowd Control Barrier loading

Crowd Control Barrier loading

REFORENCE

2011,5000m Temporary fence Type 1.2 for Auatralia.

2012,3000m Temporary fence Type 1.2 for Auatralia.

2013,2200m Temporary fence Type 1.2 for New Zealand.

2014,1500m Temporary fence(Crowd Control Barrier) for Nigeria.

2015,5000m Temporary fence(Crowd Control Barrier) for Singapore.

2019,1600m Temporary fence(Option 3) for Ice hockey Playgound.

2019,1500m Temporary fence Type 1.2 for New Zealand.
