Welded Mesh Fence
  • Why Welded Mesh Fence
  • How to select Welded Mesh Fence
  • How to install Welded Mesh Fence
  • Video show
  • Past projects

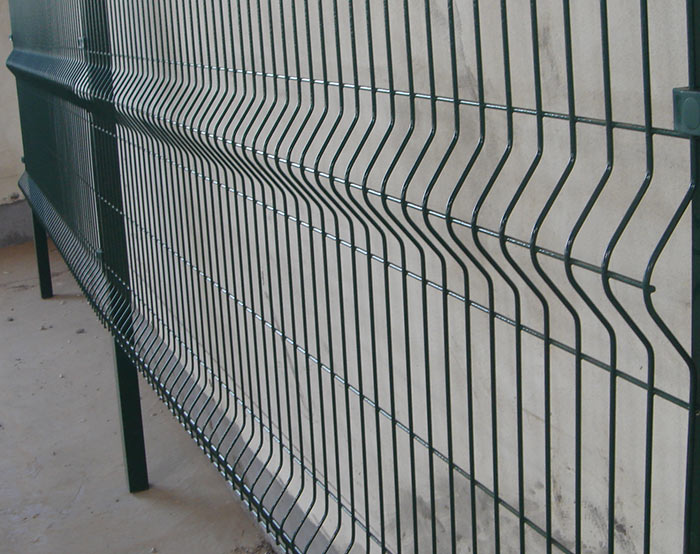

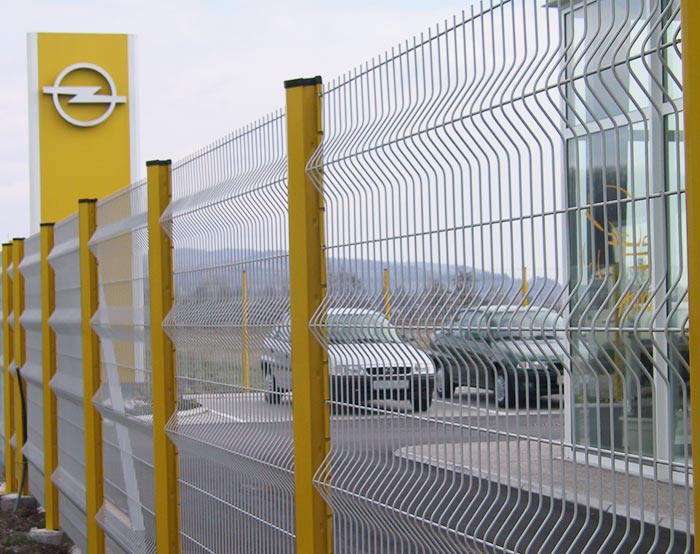

INTRODUCTION

Welded mesh fence also called "3D FENCE" "medium-security fence". It is an economical version of steel fence. The panel is welded with low carbon steel wire. Material Grade: Q195, Surface treatment by Electrostatic polyester powder stray coating(Powder-coated) over galvanized materials. And then connect the fence panels with post by suitable clamps(Clips). Due to its Simple structure, Easy installation and Beautiful appearance. More customers regard welded mesh fence as the preferred common protective fence.

FEATURES

Lower budget

See-through panel

Anti-rust, Long Service Life

Fast Installation

Customer specs available

Rigidity

COLORS AVAILABLE

Welded Mesh Fence popular colors

Welded Mesh Fence popular colors

Welded Mesh Fence available colors

Welded Mesh Fence available colors

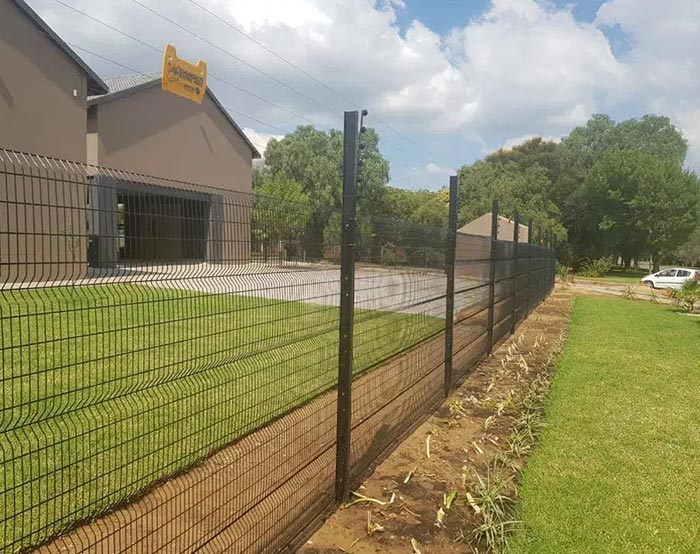

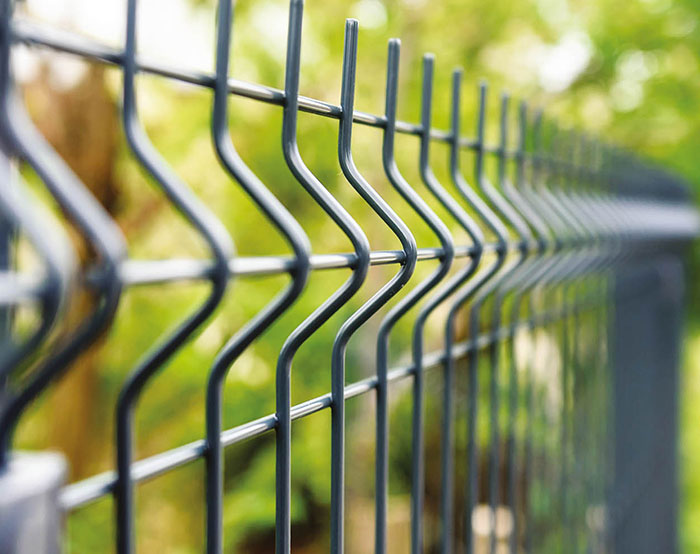

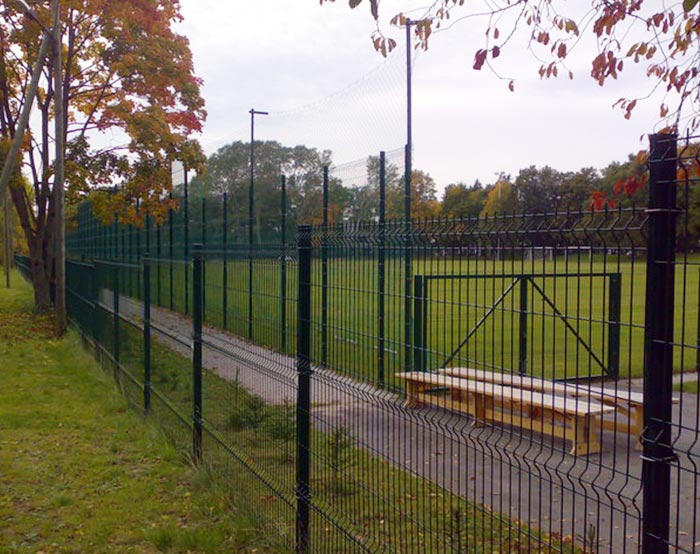

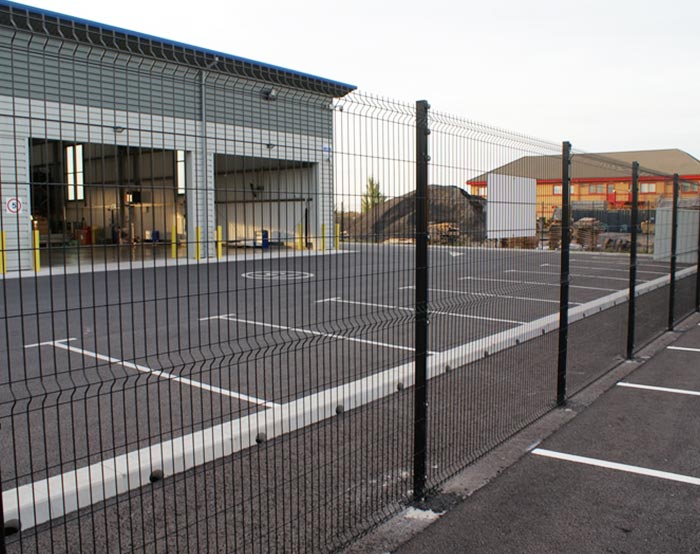

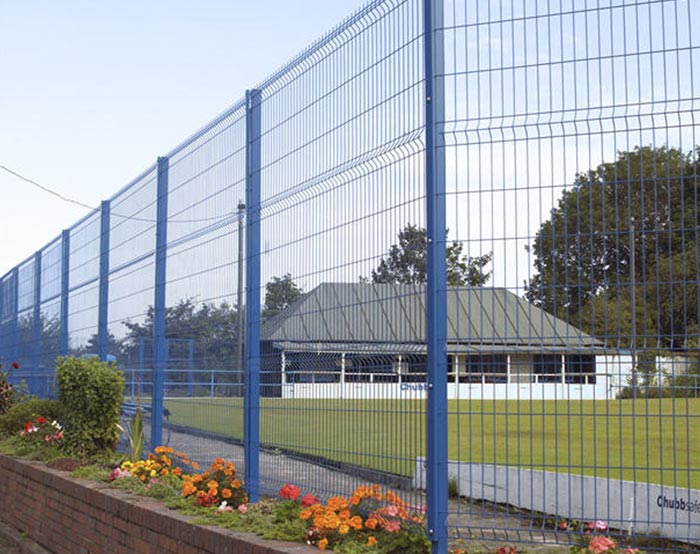

GALLERY

CONTACT US NOW

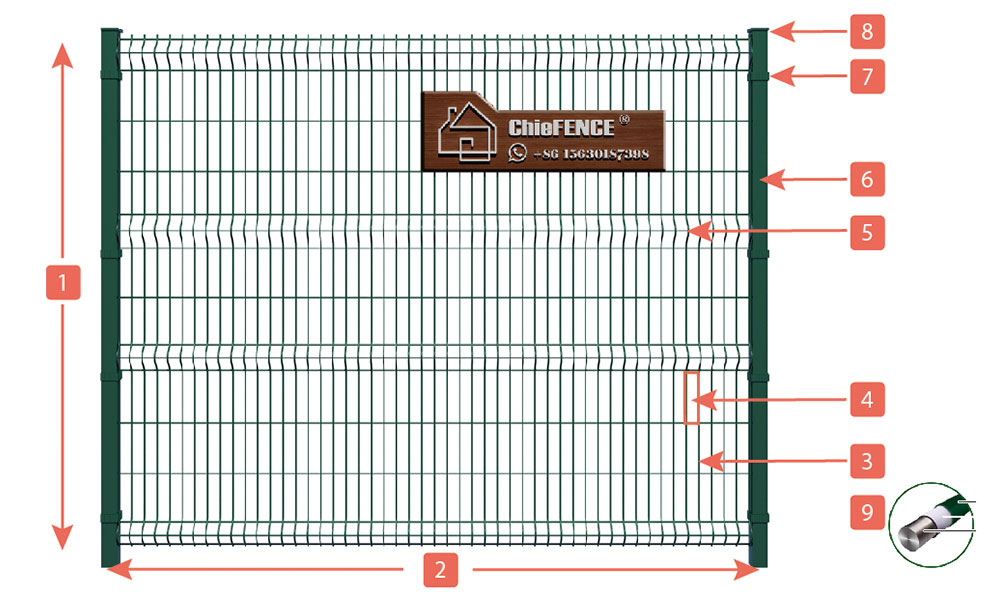

1
HEIGHT:1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm

The panels have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom). The heavy wires guarantee strength and rigidity.

2
WIDTH: 2300mm / 2500mm / 2900mm

2900mm option can reduce installation & post cost by approx 20%,when compared with a 2.5m wide panel.

If the panel is higher than 2300mm, we will suggest 2300mm wide panel to suit for container size.


3
WIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm

Thicker wire can offer stronger rigid

4
MESH SIZE: 50*200mm(center to center) / 50*200mm(edge to edge)

The 2 options are similar.

50*200mm(edge to edge) is lower budget

5

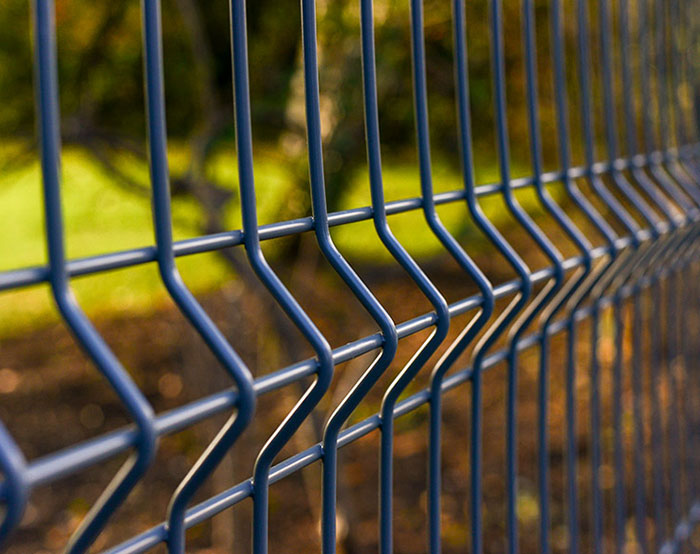

Popular bending method

A: 100mm

B: 200mm

C: 200mm without regid wire

D: 100mm with 2 regid wire

  • A

    A

  • B

    B

  • C

    C

  • D

    D

6
POST:

A: Rectangle post: 40*60mm

B: Square post: 60*60mm

C: Round post: φ60mm

D: "I " post: 70*44mm  (Double Quantity Clamps)

E: Peach post: 50*70mm & 70*100mm (Self-lock Type)

I Post

I Post

Round Post

Round Post

Square Post

Square Post

Peach Post

Peach Post

Rectangle Post

Rectangle Post

7

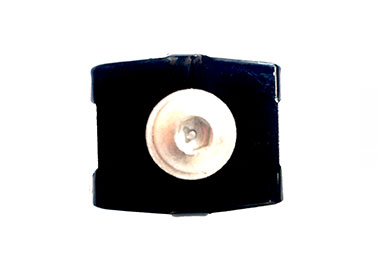

CONNECTIONS

S-1: PLASTIC CLAMP

S-2: PLASTIC CLAMP

A: Metal spider clamp

B: Metal Square clamp(2pc)

C: Metal square clamp(1pc)

D: Plastic square clamp

E: Plastic Round clamp

F: Metal Round clamp

A: Metal Spider Clips

A: Metal Spider Clips

B: Metal Square Clamp

B: Metal Square Clamp

C: Metal Square Clamp

C: Metal Square Clamp

D: Plastic Square Clamp Connection

D: Plastic Square Clamp Connection

E: Plastic Round Clamp Connection

E: Plastic Round Clamp Connection

F: Metal Round Clamp

F: Metal Round Clamp

8
SURFACE TREATMENT(ANTI-RUST TREATMENT):

A. Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)

B. Electric Galvanized(8-12g/m²) + PVC Coated

C. Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)

D. Hot Dipped galvanized(40-60g/m²) + PVC Coated

E. Hot Dipped Galvanized after welding (505g/m²)

F. Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral)

G. Galfan(200g/m²) + PVC Coated


Be manufactured using galvanized steel wire.

Be coated with exclusive Architectural Grade Powder Coat.

This coating is super-durable and environmentally sound. Our powder coating provides the industry’s Highest Weather ability and Gloss Retention in U.V. Exposure.

Up to 3 times longer than competitor’s powder coatings

Pre-Galvanized

Pre-Galvanized

Powder Coating

Powder Coating

PVC Coating

PVC Coating

Hot Dipped Galvanized

Hot Dipped Galvanized

9
OPTIONAL ACCESSORIES

A: V ARM

B: SINGLE ARM

C: BARBED WIRE

D: CONCERTINA RAZOR WIRE

E: FLAT WRAP RAZOR WIRE

V Arm

V Arm

Single Arm

Single Arm

Barbed Wire

Barbed Wire

Concertina Razor Wire

Concertina Razor Wire

Flat Wrap Razor Wire

Flat Wrap Razor Wire

What we need to prepare

Goods:
1 panel
1 post with rain hat
Clips(4 clips for 2m high fence, 3 clips if the panel is lower than 1.5m)Clips(4 clips for 2m high fence, 3 clips if the panel is lower than 1.5m)
Welded Mesh Fence panel

1. PANEL

Welded Mesh Fence post

2. POST

Welded Mesh Fence clamp

3. CLAMP

Installation Method

Measure and mark the post location as per the panel width
Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 01

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Install the post with concrete.
Each post must be set perfectly plum in the concrete

Step 02

Install the post with concrete. Each post must be set perfectly plum in the concrete

Install 1 panel to post with clips.

Step 03:

Install 1 panel to post with clips.

Install the second post with concrete.
Each post must be set perfectly plum in the concrete.

Step 04:

Install the second post with concrete. Each post must be set perfectly plum in the concrete.

Fix the fence, The cement will set in a few hours

Step 05:

Fix the fence, The cement will set in a few hours

Production Flow Chart

Steel Wire STEP 01

Steel Wire

Cutting STEP 02

Cutting

Welding STEP 03

Welding

Bending STEP 04

Bending

Powder Coating STEP 05

Powder Coating

Panel STEP 06

Panel

PACKAGE

Accessories Pakage

Accessories Pakage

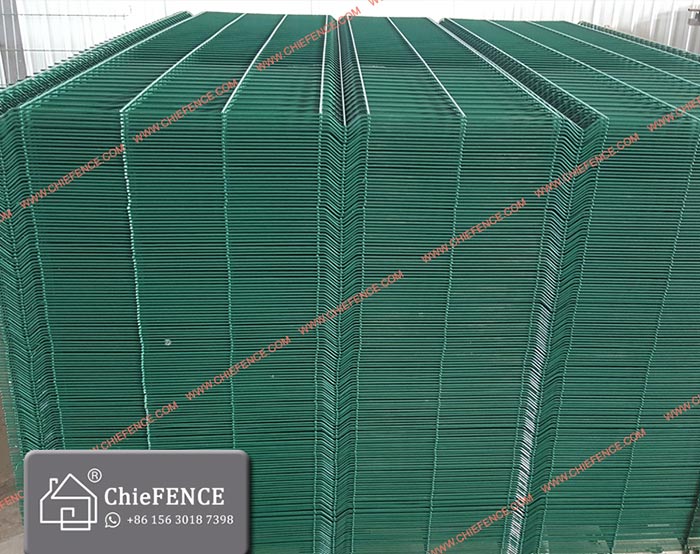

Panel Package

Panel Package

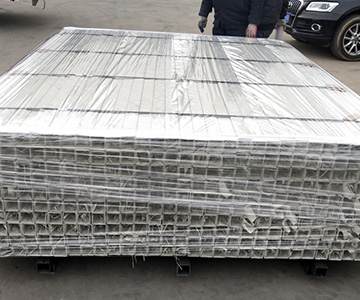

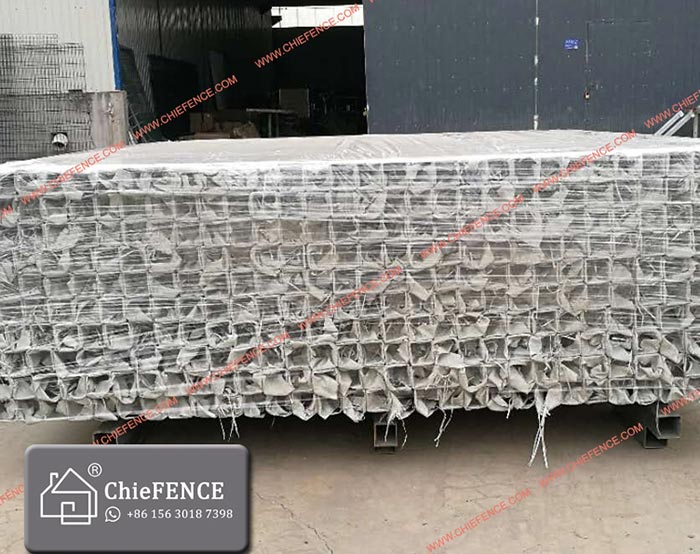

Post Package

Post Package

REFORENCE

As the hot sales fence, we sold 10000m welded mesh fence to our distributor every month.

2011,12000m welded mesh fence project for Algeria.

2012,5000m welded mesh fence project for Australia.

2013,22000m welded mesh fence project for Nigeria

2014,4500m welded mesh fence project for Nigeria

2015,3000m welded mesh fence project for Algeria

2017,5000m welded mesh fence for Asouth africa

2018,40000m welded mesh fence for America

2019,40000m welded mesh fence for Russia

2020,5000m welded mesh fence for Mauritius

CUSTOMER SAY

Frankly speaking, I used to have a stable supplier in China, and I was very satisfied with the quality of the suppliers now. But since I knew ChieFENCE, I decided to cooperate with them. They are very very professional and have solved all my doubts about product technology. They are different from other suppliers. The ChieFence team is confident and different. There is a 12 hour time difference between my country and China, but I can still get online services every day. It's awesome!

-Jim (Distributor)

I have imported fence from China for 13 years, and I used to have 2 suppliers in China. The first is a very large company (company name "C"), and the second is ChieFENCE. I like to work with "C" because they accept 15% credit for three months. I like working with ChieFENCE because ChieFence is professional and dedicated. In 2017, I got a big order, which was very difficult to produce, so I divided it into 2 parts for "C" and ChieFence. One day, I came to China. According to the schedule, I met company "C" on the first day, and at 9:00 AM the next day I met ChieFence. On the first day I had dinner with company "C" and went to KTV. It was 3:40am when I returned to the hotel, and I sent ChieFENCE a message that the meeting would be postponed until the afternoon. And I got a reply immediately . I feel so sorry that I disturbed ChieFENCE's sleep at 3:40am. In the next day learned: In order to ensure quality, ChieFENCE sales have been in the workshop for 3 days and 2 nights. Since then ChieFENCE has become my only supplier.

-Mak (Distributor)

My name is dennis from South Africa and we were a very small distributor a few years ago. We buy fences from Cochrane.One day I saw ChieFENCE's website. Their prices are very good. The price is about 50% lower than Cochrane. We talked a lot. I am very satisfied with them. But we don't have enough money to order a container. Finally ChieFENCE helped me to order a container with other distributors. Now I have enough money to import the goods. I am very grateful to ChieFENCE.

-Dennis (Distributor)

I 'm Mohamed from Jordan. I met ChieFence at the Canton Fair a few years ago. At that time I was bidding for an army project. A very large project. In fact, I am not professional with Fencing. Unfortunately, I lost this order in the end. A few years later, I had the same bid, and I found ChieFence again. Chiefence helped me find the reason, why I lost the order last time, we got tender together and cooperated happily. I am very grateful to chieFence.

-Mohammed (Contractor)

I am a contractor and I cooperate with chieFence because they are professional. In the bidding documents, we always encounter a lot of difficulties, but ChieFence can always help me find the best solution. In 2018, I remember our fencing project required a of 600Mpa tensile strength . But other suppliers can only offer 400mpa. ChieFence guarantees 600mpa tensile strength at the same price. This helped me a lot.

-Ahmed (Contractor)

ChieFENCE's quality is much better than those I bought from local vendors.Yet I got much more competitive offer.

-Dom (Contractor)

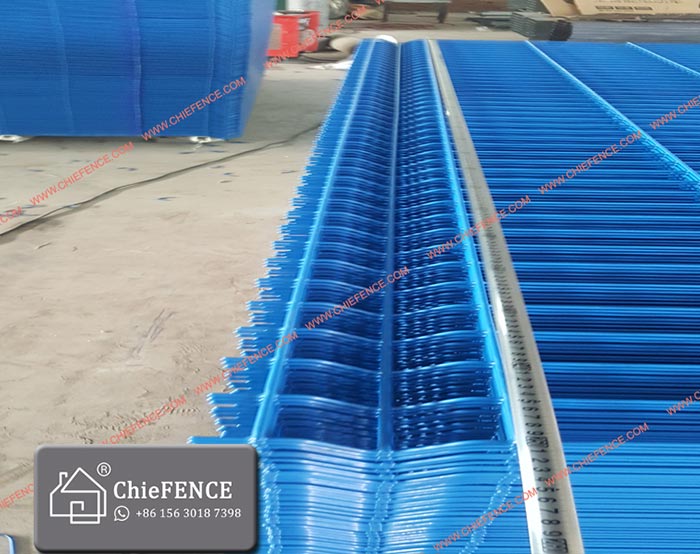

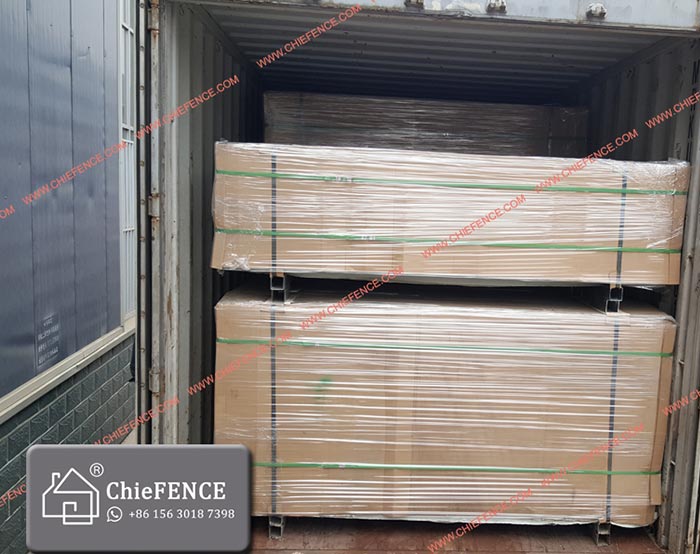

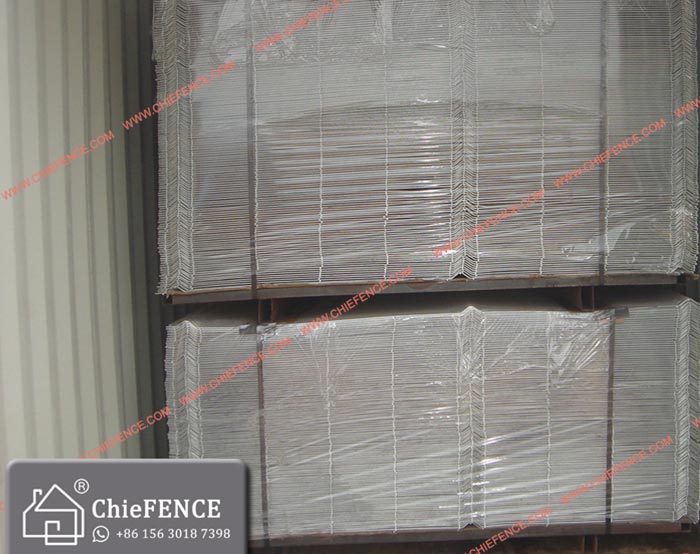

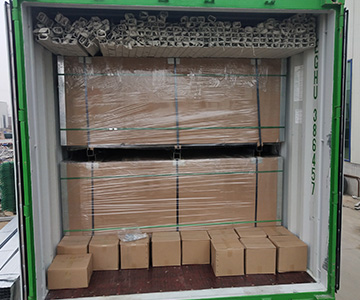

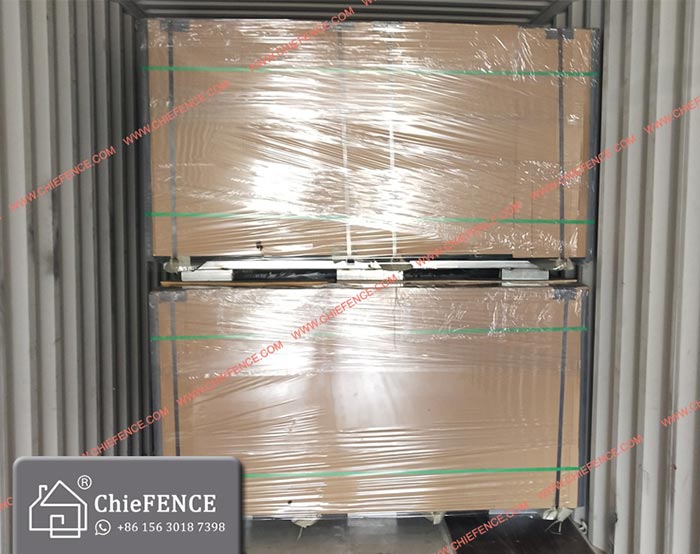

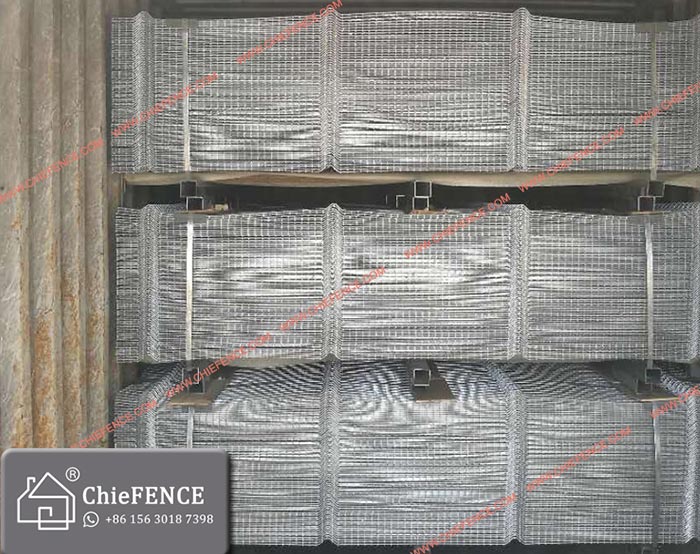

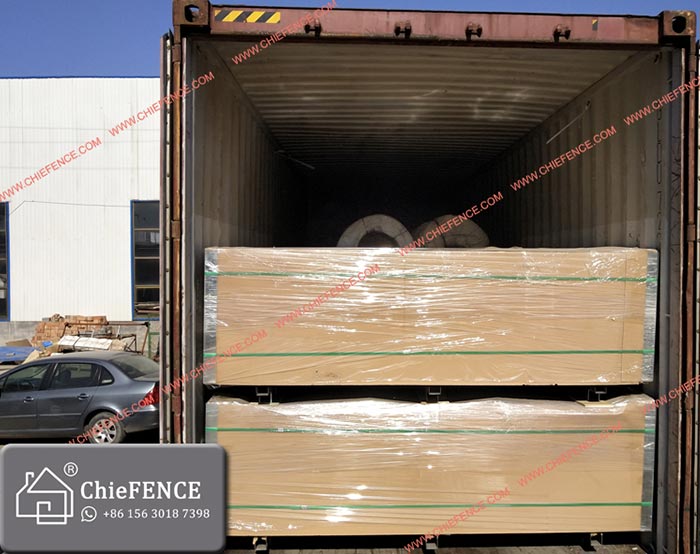

PACKING AND LOADING

If need more photos, pls visit the news page
